How can I get a price quote for Enerpac RAC504?

You can request a fast quote for Enerpac RAC504 from Yılsa Engineering. Reference part number CEY-55221B12DC71. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac RAC504 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac RAC504 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac RAC504?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

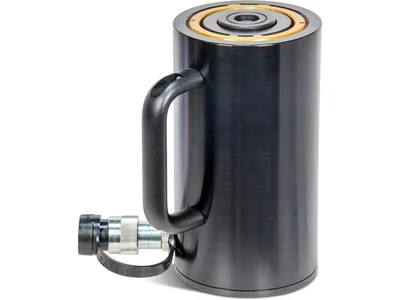

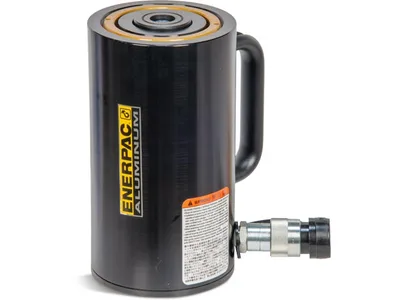

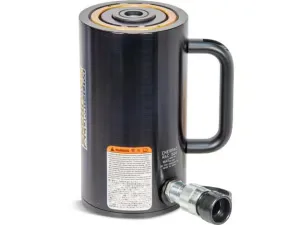

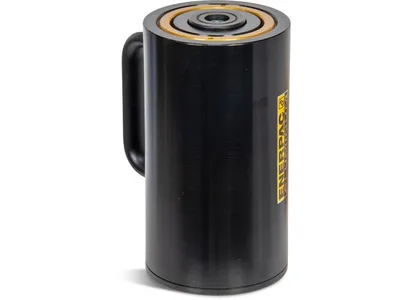

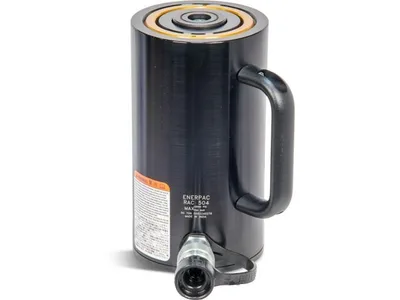

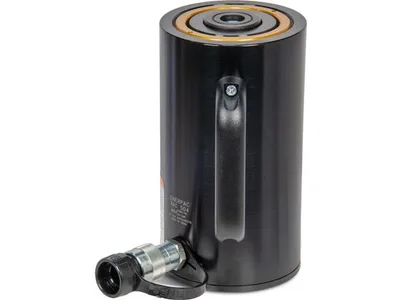

Enerpac RAC504 54.9 ton 100 mm Aluminum Cylinder

Enerpac RAC504; 54.9 ton capacity (50 ton class), 100 mm (3.94 in) stroke, 700 bar, single-acting spring-return aluminum hydraulic cylinder.

EnerpacMFR # RAC504SKU # CEY-55221B12DC71

Cylinder Class50 ton

Stroke100 mm (3.94 in)

Collapsed Height (A)236 mm (9.29 in)

Outside Diameter D130 mm (5.12 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U110 mm (4.33 in)

Have questions?Chat on WhatsApp

About This Product

RAC504 is an Enerpac RAC series single-acting, lightweight aluminum hydraulic cylinder. It offers 54.9 ton capacity (50 ton class) and a 100 mm (3.94 in) stroke, and operates at up to 700 bar (10,000 psi). Retraction is provided by a high-strength return spring. Collapsed height is 236 mm, outside diameter is 130 mm, the base mounting bolt circle is 110 mm and weight is 9.8 kg. The surface is an anodized hard coat. The aluminum body weighs about half as much as an equivalent steel cylinder, making transport and positioning easier. It is used for lifting and pushing applications. It meets ASME B30.1 and ships with a CR400 coupler and dust cap.

Features and Benefits

High-strength return spring for rapid retraction
Aluminum body at roughly half the weight of an equivalent steel cylinder (9.8 kg)
Composite bearings prevent metal-to-metal contact, increasing cylinder life and side-load resistance
Hard coat (anodized) finish on all surfaces resists damage
Hardened steel saddle, integral stop ring and steel base plate for protection against load-induced damage
CR400 coupler and dust cap included; ASME B30.1 compliant

Enerpac RAC504

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Cylinder Class50 ton

Stroke100 mm (3.94 in)

Collapsed Height (A)236 mm (9.29 in)

Outside Diameter D130 mm (5.12 in)

Return TypeSingle-Acting, Spring Return

Base Mounting Holes Bolt Circle U110 mm (4.33 in)

Surface TreatmentAnodized

Weight9,8 kg (21.6 lbs)

Oil Capacity (Advance)709 cm³ (43.3 in³)

Base Mounting Holes Thread Depth Z12 mm (0.47 in)

Maximum Operating Pressure700 bar (10,000 psi)

ApplicationsLift, Push

Base Mounting Holes Thread VM6

Maximum Cylinder Capacity (Advance)496 kN (54.9 ton)

Coupler UsedCR400 Coupler

Cylinder Bore Diameter (E)95 mm (3.74 in)

Product TypeAluminum Cylinder

SeriesRAC

Base to Advance Port H30 mm (1.19 in)

Optional Tilt Saddle Diameter (J1)2.8 in

Product LineIndustrial Tools

Saddle Maximum Tilt Angle5 degrees

Saddle Diameter J50 mm (1.97 in)

Country of OriginIndia

Saddle Diameter J171 mm

Extended Height (B)336 mm (13.24 in)

Cylinder Effective Area (Advance)70,9 cm² (10.99 in²)

Plunger TypeSolid

Cylinder MaterialAluminum

Optional Tilt Saddle Addition to Collapsed Height (A1)14 mm (0.55 in)

Saddle Protrusion from Plunger K3 mm (0.12 in)

Saddle Protrusion from Plunger K124 mm

Plunger Diameter F80 mm (3.15 in)

Documents & CAD

Series documents 3· shared by this product series

Repair Parts SheetRAC & RACL Aluminum Cylinders Repair Parts SheetPDF·588 KB·English

2D DrawingRAC504 drawingPDF·528 KB

BrochureRAC-Series Lightweight Cylinders; EnglishPDF·260 KB
