How can I get a price quote for Enerpac NSH3646?

You can request a fast quote for Enerpac NSH3646 from Yılsa Engineering. Reference part number CEY-55221B12D884. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac NSH3646 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac NSH3646 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac NSH3646?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

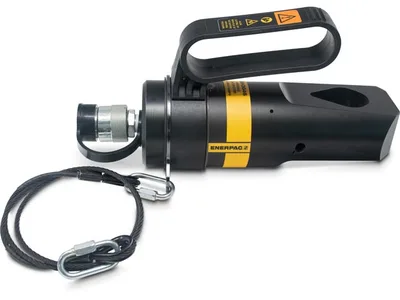

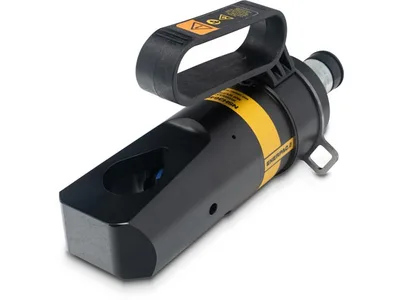

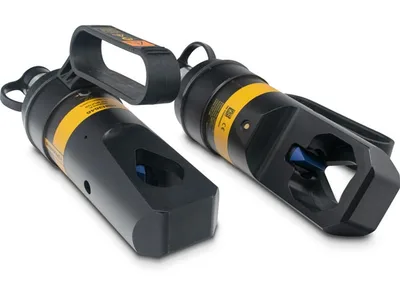

Enerpac NSH3646 20 ton Nut Splitter

Enerpac NSH3646; 20 ton (200 kN) capacity, 700 bar, 36–46 mm hexagon nut range, single-acting spring-return hydraulic nut splitter.

EnerpacMFR # NSH3646SKU # CEY-55221B12D884

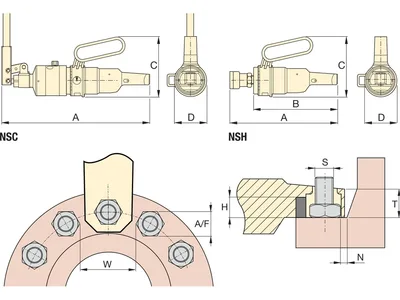

Dimension S Max.39,0 mm

Dimension D93 mm (3.7 in)

Dimension N (Min.)16,0 mm (0.63 in)

Dimension T44,0 mm (1.73 in)

Dimension C169 mm (6.7 in)

Maximum Operating Pressure700 bar (10,000 psi)

Have questions?Chat on WhatsApp

About This Product

The NSH3646 is a 20 ton (200 kN) hydraulic nut splitter. It cuts 36–46 mm (1.42–1.81 in) hexagon nuts on M24–M30 bolts. Maximum operating pressure is 700 bar (10,000 psi) and oil capacity is 80 cm³. It is single-acting with spring return. The heat-treated steel blade cuts from one side and an internal spring returns it to the starting position. A revolving composite handle isolates vibration and shock. The safety lanyard and revolving anchor point are drop tested. It suits flange nut splitting jobs in the oil and gas industries. Maximum allowable hardness to split is ASTM A194 Gr 2H; do not use on square nuts or stainless steel. A CR400 female half coupler is standard.

Features and Benefits

Quick and easy cutting tip replacement
Drop-tested revolving anchor point and safety lanyard
Revolving composite handle for vibration and shock isolation
Includes hexagon keys, cutting tip, tip retention screw and spare alignment screw
Standard safety lanyard with steel cable and carabiners
CR400 female half coupler is standard

Enerpac NSH3646

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Dimension S Max.39,0 mm

Dimension D93 mm (3.7 in)

Dimension N (Min.)16,0 mm (0.63 in)

Dimension T44,0 mm (1.73 in)

Dimension C169 mm (6.7 in)

Maximum Operating Pressure700 bar (10,000 psi)

Capacity200 kN (20 ton)

Bolt RangeM24 - M30 (7/8 - 1 1/8 in)

Dimension B239 mm (9.4 in)

Max. Allowable Hardness to SplitASTM A194 Gr 2H

ApplicationsCut

Dimension W (Min.)83,5 mm (3.20 in)

Oil Capacity80 cm³ (4.9 in³)

Product TypeNut Splitter

SeriesNSH

Hexagon Nut Range36 - 46 mm (1.42 - 1.81 in)

Dimension H Max.34 mm (1.34 in)

Model Type20 ton, Hex up to 1.81 in

Cutter Head Return TypeSingle-Acting, Spring Return

Dimension A290 mm (11.4 in)

Product LineIndustrial Tools, Bolting Tools

Weight6,9 kg (15.2 lbs)

Dimension S (Max.)1.53 in

Set IncludesCR400,FSC1
