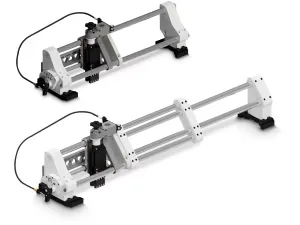

Enerpac F0152C0001XX-SK PSS Profile Slide

Enerpac F0152C0001XX-SK; PSS profile slide attachment for 203.2–609.6 mm (8–24 in) clamshell diameters, cuts up to 127.0 mm (5 in) wall for hands-free weld preps.

EnerpacMFR # F0152C0001XX-SKSKU # YLSZJMJJM5HQJZX

Dimension C352.6-549.4 mm (13.9 - 21.6 in)

Dimension B- mm

Product TypeProfile Slide

Dimension A546.1 mm (21.5 in)

Product LineMachining Tools

Have questions?Chat on WhatsApp

About This Product

F0152C0001XX-SK is the PSS profile slide attachment for 203.2–609.6 mm (8–24 in) clamshell diameters. It uses two pairs of standard length shafts. Dimensions are A 546.1 mm and C 352.6–549.4 mm. The profile slide is an automated method of single point cutting a weld prep on the end of a pipe using a template, which is especially useful on heavy wall weld preps. It is fed a predetermined amount for each revolution of the clamshell. With standard templates it cuts up to 127.0 mm (5 in) wall. It bolts to the face of the clamshell and can be mounted on all NB, MS and HD clamshells from 203.2 mm (8 in) to 1270 mm (50 in).

Features and Benefits

For 203.2–609.6 mm (8–24 in) clamshell diameters; uses two pairs of standard length shafts
Cuts up to 127.0 mm (5 in) wall with standard templates
Produces safe hands-free weld preps
Bolts directly to clamshells using quick slide or standard bolt hole configuration
Can be fixed in a stationary position for counterboring
Optional cable fed counterbore and weld prep templates are available
