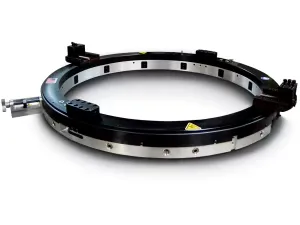

Enerpac DLRMS16 187-413 mm Clamshell Pipe Cutter
Enerpac DLRMS16; mid-size clamshell pipe cutter for 187–413 mm (7.375–16.25 in) mounting diameters, weighing 54 kg.
Dimension E- mm
Min. Pipe Diameter187.3 mm (7.375 in)
Dimension D135.38 mm (5.33 in)
Max. Pipe Diameter412.8 mm (16.25 in)
Dimension C76.96 mm (3.03 in)
Dimension B97.28 mm (3.83 in)
About This Product
DLRMS16 is a mid-size portable clamshell pipe cutter from the Enerpac DLR series in the Machining Tools line. It is lighter than the HD clamshells and more rigid than the NB series.
It mounts on pipe diameters from 187.3 to 412.8 mm (7.375–16.25 in), with a machine ID of 419.1 mm (16.5 in) and a weight of 54.02 kg (119 lb). MS series machines are 76.96 mm (3.03 in) high and 97.28 mm (3.83 in) wide, giving better maneuverability and clearance than the HD series.
This portable split frame machine is used for pipe cutting, beveling, facing, ID boring and OD turning across a wide range of wall thicknesses. Included items: clamshell body, locators and extensions, slides, motor and mounting, air caddy, manual, toolkit and shipping crate.
Features and Benefits
- Pneumatic and hydraulic drive options for greater versatility
- Fully adjustable heavy-duty bearing design for easier servicing
- Stepped and keyed gear clamps with through bolt give a positive fit at each assembly joint
- Several drive options to position the motor for the specific machining application
- MS series accepts a wide range of accessories; locator extensions are compatible with NB series clamshells
- 187.3–412.8 mm pipe diameter range at 54.02 kg
Enerpac DLRMS16
- Genuine, certified Enerpac product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Dimension E- mm
Min. Pipe Diameter187.3 mm (7.375 in)
Dimension D135.38 mm (5.33 in)
Max. Pipe Diameter412.8 mm (16.25 in)
Dimension C76.96 mm (3.03 in)
Dimension B97.28 mm (3.83 in)
Dimension A573.07 mm (22.562 in)
Machine ID419.1 mm (16.5 in)
Product LineMachining Tools
Weight54.02 kg (119 lbs)
Product TypeMid-Size Clamshell
SeriesDLR
Documents & CAD
For this product 1
