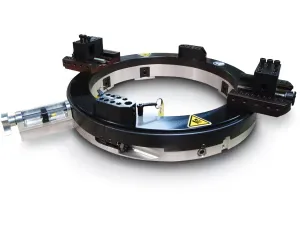

Enerpac DLRNB14 219–356 mm Clamshell Pipe Cutter
Enerpac DLRNB14; narrow body clamshell pipe cutter for 219.1–355.6 mm pipe diameter, 368.3 mm machine ID, 28.6 kg, pneumatic or hydraulic drive options.
Dimension E- mm
Min. Pipe Diameter219.1 mm (8.625 in)
Dimension D114.3 mm (4.5 in)
Max. Pipe Diameter355.6 mm (14 in)
Dimension C57.2 mm (2.25 in)
Dimension B76.2 mm (3 in)
About This Product
DLRNB14 is a narrow body (NB) clamshell pipe cutter from the DLR series. It mounts on pipe diameters from 219.1 mm (8.625 in) to 355.6 mm (14 in); machine ID is 368.3 mm (14.5 in), weight is 28.6 kg (63 lb) and length is 482.6 mm.
NB series bodies are 76.2 mm (3 in) high and 57.2 mm (2.25 in) wide, and the low profile narrow body design suits tight spaces or work areas with obstructions. Pneumatic and hydraulic drive options are available. Included items are the clamshell body, locators and extensions covering the full range, slides, motor and mounting, air caddy, manual, toolkit and shipping crate.
It is used for on-site pipe cutting and machining in maintenance and installation work on piping.
Features and Benefits
- 219.1–355.6 mm (8.625–14 in) pipe diameter range
- 76.2 mm high, 57.2 mm wide narrow body for tight spaces
- Pneumatic and hydraulic drive options
- Fully adjustable heavy duty bearing design
- Stepped and keyed gear clamps with through bolt
- Compatible with accessories and locator extensions
Enerpac DLRNB14
- Genuine, certified Enerpac product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Dimension E- mm
Min. Pipe Diameter219.1 mm (8.625 in)
Dimension D114.3 mm (4.5 in)
Max. Pipe Diameter355.6 mm (14 in)
Dimension C57.2 mm (2.25 in)
Dimension B76.2 mm (3 in)
Dimension A482.6 mm (19 in)
Machine ID368.3 mm (14.5 in)
Product LineMachining Tools
Weight28.6 kg (63 lbs)
Product TypeNarrow Body Clamshell
SeriesDLR
Documents & CAD
