How can I get a price quote for Enerpac CATS201?

You can request a fast quote for Enerpac CATS201 from Yılsa Engineering. Reference part number YLSVYM4B3L4IT9. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac CATS201 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac CATS201 genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac CATS201?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

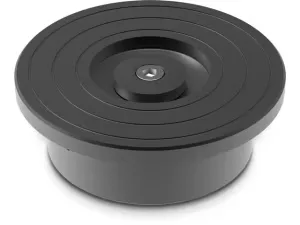

Enerpac CATS201 5° Tilt Saddle

Enerpac CATS201; 5° tilt angle, Ø126 mm saddle diameter and +16 mm collapsed height addition; tilt saddle for 150–200 ton HCL series cylinders.

EnerpacMFR # CATS201SKU # YLSVYM4B3L4IT9

Compatible Cylinder SeriesHCL

Addition to Collapsed Height A116 mm (0.63 in)

Product TypeTilt Saddle

Saddle Tilt5 °

Tilt Saddle Diameter J1126 mm (4.96 in)

Have questions?Chat on WhatsApp

About This Product

CATS201 is a tilt saddle from the Enerpac CATS series. It is designed for use with 150 and 200 ton HCL series hydraulic cylinders. The saddle provides a 5° tilt angle. Saddle diameter is 126 mm (4.96 in) and the addition to cylinder collapsed height is 16 mm (0.63 in). It can be bolted to the cylinder, so it can be used safely in any orientation without the risk of the saddle dropping off. A nitrocarburization surface treatment improves corrosion protection. By increasing contact between the plunger end and the load, the tilt saddle reduces side loading and helps extend cylinder life. It is used in lifting and pushing applications where the load surface is not perfectly level.

Features and Benefits

5° tilt angle for better load contact and reduced side loading
Can be bolted to the cylinder for safe use in any orientation without the saddle dropping off
Nitrocarburization surface treatment for improved corrosion protection
Compatible with 150–200 ton HCL series cylinders
Ø126 mm saddle diameter, adds only 16 mm to collapsed height

Enerpac CATS201

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Compatible Cylinder SeriesHCL

Addition to Collapsed Height A116 mm (0.63 in)

Product TypeTilt Saddle

Saddle Tilt5 °

Tilt Saddle Diameter J1126 mm (4.96 in)

SeriesCATS

Capacity Class150, 200 ton

For Use with Cylinder Capacity150, 200 ton

Product LineIndustrial Tools

Saddle TypeTilt

Documents & CAD

Series documents 2· shared by this product series

Instruction ManualTilt Saddles Operation and Maintenance ManualPDF·1.4 MB·English

BrochureHCL-Series High-Tonnage Lock Nut Cylinders; EnglishPDF·177 KB

CAD Files 4

3D Model
