How can I get a price quote for Enerpac A102G?

You can request a fast quote for Enerpac A102G from Yılsa Engineering. Reference part number CEY-55221B146553. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Enerpac A102G in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Enerpac A102G genuine and new?

Yes. This Enerpac product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Enerpac A102G?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

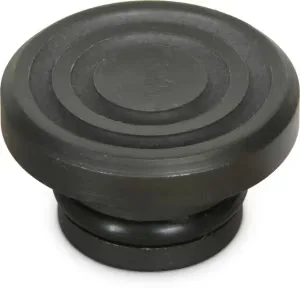

Enerpac A102G 10 ton Grooved Saddle

Enerpac A102G; grooved (serrated) saddle for 10 ton RC cylinders, dimensions 35 mm / 6.1 mm / 22.4 mm.

EnerpacMFR # A102GSKU # CEY-55221B146553

Saddle Dimension (C)0.88 in

Country of OriginChina

Saddle Dimension B0.24 in

Compatible Cylinder SeriesRC

Dimension C22.4 mm (0.88 in)

Dimension B6.1 mm (0.24 in)

Have questions?Chat on WhatsApp

About This Product

The A102G is a grooved (serrated) saddle that fits on the plunger of RC series hydraulic cylinders up to 10 ton capacity. Its grooved surface provides better grip at the load contact point and helps reduce slipping. Saddle dimensions are A: 35 mm (1.38 in), B: 6.1 mm (0.24 in) and C: 22.4 mm (0.88 in). Country of origin is China. It is used in lifting, pushing and maintenance work to protect the contact surface between cylinder and load and to reduce load slippage.

Features and Benefits

Compatible with RC series cylinders up to 10 ton capacity
Grooved / serrated surface reduces slipping at load contact

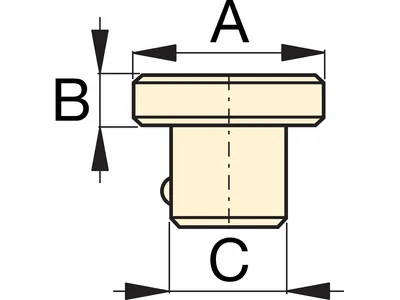

Dimensions: A 35 mm, B 6.1 mm, C 22.4 mm
Protects the plunger end from direct contact

Enerpac A102G

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Saddle Dimension (C)0.88 in

Country of OriginChina

Saddle Dimension B0.24 in

Compatible Cylinder SeriesRC

Dimension C22.4 mm (0.88 in)

Dimension B6.1 mm (0.24 in)

Compatible Cylinder SeriesRC

Product TypeGrooved Saddle

Saddle Dimension A1.38 in

Capacity Class10 ton

For Use with Cylinder Capacity10 ton

Dimension A35 mm (1.38 in)

Product LineIndustrial Tools

Saddle TypeGrooved / Serrated

Documents & CAD

Series documents 1· shared by this product series

BrochureA-AW-CATS-JBI-RB-REB-REP-Series Accessories; EnglishPDF·180 KB

CAD Files 3

3D Model

Alternative Names & Search Terms

A102GA-102GA 102Ga102gEnerpac A102GEnerpac A-102GEnerpac A 102GA102G grooved saddleA102G serrated saddleA102G cylinder saddleEnerpac RC series saddleEnerpac RC cylinder accessoryEnerpac cylinder saddle10 ton cylinder saddle10 ton grooved saddle10 ton RC cylinder saddlehydraulic cylinder grooved saddleserrated plunger saddlehydraulic jack saddle
