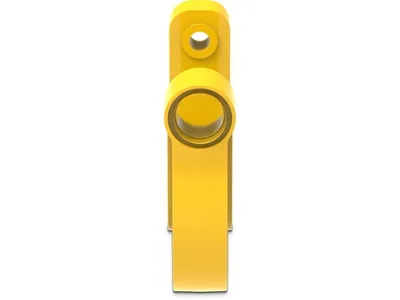

Enerpac A210 10 Ton C-Clamp Hydraulic Press

Enerpac A210; 10 ton capacity C-clamp hydraulic press, 89 kN pressure rating, 228 mm maximum daylight, 17 kg weight.

EnerpacMFR # A210SKU # YLSKOQSF73CZW4H

Press Capacity89 kN (10 ton)

Max. Vertical Daylight228 mm (9 in)

Maximum Bed Width57 mm

Weight17 kg (37 lbs)

Dimension N- in

Dimension G25 mm (1.02 in)

Have questions?Chat on WhatsApp

About This Product

Enerpac A210 is a 10 ton capacity C-clamp hydraulic press. It is used for precision pressing applications such as shaft removal and insertion. It features a 89 kN pressure capacity, 228 mm maximum daylight, and 57 mm bed width, offering compact and efficient design. It can operate in all positions. Compatible with 10 ton cylinders and requires a threaded adaptor saddle A13. Optional accessories include Push Pin A183 and smooth Saddle A185 for delicate parts.

Features and Benefits

10 ton precision pressing capacity
Operational in all positions
228 mm maximum daylight opening
89 kN pressure for precise control
Compatible with 10 ton cylinders via A13 adaptor

Enerpac A210

Genuine, certified Enerpac product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Press Capacity89 kN (10 ton)

Max. Vertical Daylight228 mm (9 in)

Maximum Bed Width57 mm

Weight17 kg (37 lbs)

Dimension N- in

Dimension G25 mm (1.02 in)

Dimension E82 mm (3.25 in)

Country of OriginIndia

Length283 mm (11.13 in)

Dimension F2 1/4"-14 UNS mm (2 1/4 - 14 un in)

Dimension O- in

Dimension D152 mm (6 in)

Max. Operating Pressure10,000 psi

Dimension C228 mm (9 in)

Maximum Operating Pressure700 bar (10,000 psi)

Capacity89 kN (10 ton)

Dimension B282 mm (11.13 in)

Dimension K43 mm (1.69 in)

Dimension J64 mm (2.5 in)

Dimension H76 mm (3 in)

Max. Bed Width3.25 in

Product TypeC-Clamp Press

Dimension L194 mm (7.63 in)

Width83 mm (3.25 in)

Dimension M29 mm (1.13 in)

SeriesA

Dimension A406 mm (16 in)

Product LineIndustrial Tools

Height406 mm (16 in)

Documents & CAD

For this product 1

2D DrawingA210 drawingPDF·29 KB

Series documents 2· shared by this product series

BrochureA-Series_C-Clamp_Arbor_and_Bench_Presses_EN-SGPDF·272 KB

BrochureA-VLP-Series_C-Clamp_Arbor_Bench_Presses_EN-AUPDF·272 KB·English

CAD Files 3

3D Model
