Baldor ZDWNM3609T

Washdown Vector Duty Motor (Painted) - 2 hp, 1800 rpm, 3 ph, 230/460 V, 182TC Frame, TENV (Totally Enclosed Non-Ventilated) Enclosure, 60 Hz, 1760 rpm Base, C-Face / Foot Mount

BaldorMFR # ZDWNM3609TSKU # YLSX9UJ3IO7LYDG

EnclosureTENV

Frame182TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency2.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Washdown Vector Duty Motor (Painted) - 2 hp, 1800 rpm, 3 ph, 230/460 V, 182TC Frame, TENV (Totally Enclosed Non-Ventilated) Enclosure, 60 Hz, 1760 rpm Base, C-Face / Foot Mount

Features and Benefits

Totally Enclosed Non Ventilated (TENV)
C-face with base 143TC-254TC
Supplied with 1024 line count encoder
Stainless steel shaft
Forsheda® running contact V-ring
Epoxy coating
Moisture sealant on bolt heads, between frame and endplate
ISR® (Inverter Spike-Resistant) magnet wire
Class H Insulated
Meets NEMA MG 1, Part 31
Standard efficiency
Applications: Vector drive washdown. Material handling, packaging equipment in food processing and other wet environments. For adjustable speed applications requiring full torque from zero to base speed

Baldor ZDWNM3609T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame182TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency2.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsUR · CSA

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage2.900 A @ 460.0 V · 5.800 A @ 230.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load88.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceENCODER

High voltage full load current (A)2.9 a

Front face codeEncoder/Feedback Device

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter codeInverter Duty

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)6000 rpm

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 16 AWG

Motor type3628M

Mounting arrangementF1

Number of poles4

Overall length17.77 IN

Power factor73

Product familyWash Down

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS NON-COMPLIANT

Service factor1.00

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1760 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568200070

Motor CategoryVector Duty Motor (Painted)

Motor Supply Voltage230/460 V

Base RPM1760 rpm

Warranty2 Year Warranty

Type Of BearingBall

IP Rating55

Harmonization Code8501.52.4000

Weight71 lbs

ApplicationsMaterial handling, packaging equipment in food processing and other wet environments.

Additional DetailsDesigned for inverter or vector applications where up to a 1000:1 constant torque speed range is required. Motors include 1024 PPR HS25 encoder feedback with MS connector. Meets NEMA MG 1, Part 31. 1.00 Service Factor. Class “H” insulated. 2700 RPM constant Hp speed. Includes phase insulation and thermostats.

Mounting TypeC-Face / Foot

Product TypeWashdown Duty Motors

Nameplate

Catalog numberZDWNM3609T

Specification number36J562R049Z1

Frame size182TC

Horsepower (HP)2 TE

Voltage (V)230/460

Magnetizing current (A)3.4/1.7

Full load current (A)5.8/2.9

Speed (rpm)1760

Maximum speed (rpm)6000

Frequency (Hz)60

Phase3

Insulation classH

Service factor1.00

NEMA design letterB

SL HZ1.3

NEMA nominal efficiency (%)88.5

Inertia (WK²)0.26

Rating40C AMB-CONT

Drive end bearing6206

Opposite drive end bearing6205

CC number010A

Nameplate numberNP1609L

Performance

General characteristics· 460 V, 60 Hz, 2 hp

Line-to-line resistance at 25 °C (ohms)5.6879 Ω

Temperature rise at rated load (°C)59° C

Start configurationDOL

Breakdown torque23.2 lb-ft

Pull-up torque13.2 lb-ft

Locked-rotor torque14.9 lb-ft

Starting current (A)22.3 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	7	33	53	65	73	78	81
Efficiency %	0	79.9	86.9	88.7	89	88.5	87.7
Speed rpm	1798.9	1790.3	1781.4	1772.5	1762	1751	1739
Line amps A	1.7	1.82	2.08	2.43	2.88	3.4	3.96
Power W	90.1	482	872	1258	1681	2115	2563
Torque lb-ft	0	1.51	2.99	4.43	5.98	7.52	9.09

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

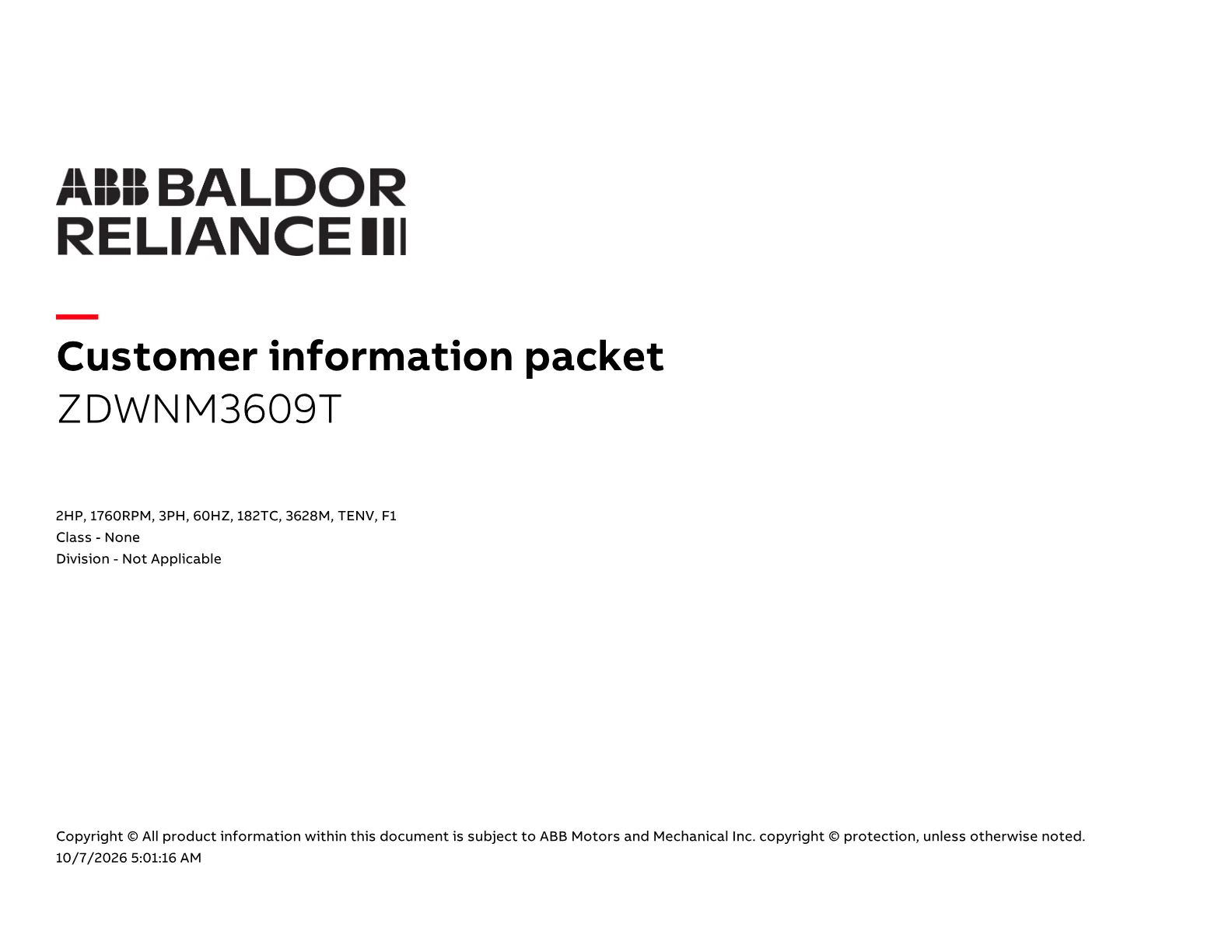

DatasheetDatasheetPDF·606 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

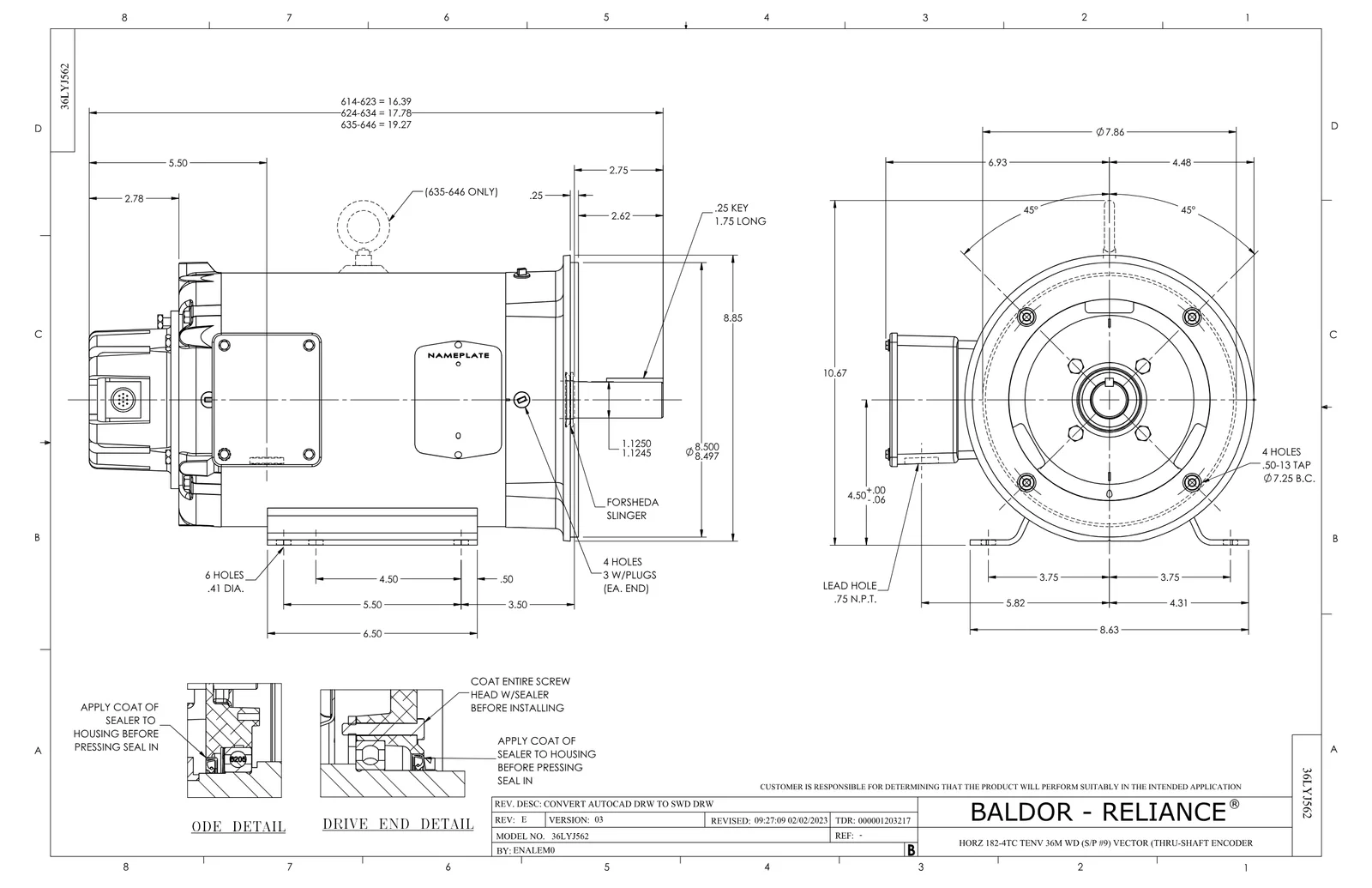

Dimension DrawingDimension SheetPDF·120 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4
