Baldor YPC364A

Baldor YPC364A is a general purpose AC motor with 0.5 HP, 1075 rpm, single phase 115 V 60 Hz, 48YZ frame and TEAO enclosure.

BaldorMFR # YPC364ASKU # YLSZT2DKW9DRL

EnclosureTEAO

Frame48YZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Output at frequency.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor YPC364A is a general purpose AC motor with 0.5 HP, 1075 rpm, single phase 115 V 60 Hz, 48YZ frame and TEAO enclosure.

Baldor YPC364A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEAO

Frame48YZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeOil Capacitor Start and Run

Output at frequency.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorYoke Pedestal

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage5.400 A @ 115.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load68.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)5.4 a

Front face codeTerminal Panel

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeB

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitTerminal Panel Or Lead Hole

Motor lead terminationNone

Motor lead quantity/wire size5 @ 18 AWG

Motor type3420C

Mounting arrangementF1

Number of poles6

Overall length11.31 IN

Power factor93

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.00

Shaft diameter0.500 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible: Connected Standard

Shaft slinger indicatorShaft Slinger

Speed (rpm)1075 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationWG

Winding thermal 2None

UPC781568407714

Nameplate

Catalog numberYPC364A

Specification number34M195R233G1

Horsepower (HP).5

Voltage (V)115

Current (A)5.4

Speed (rpm)1075

Frame size48YZ

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)B

NEMA design letter-

Insulation classB

NEMA nominal efficiency (%)68

Power factor93

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureTEAO

Nameplate numberNP1257L

Performance

General characteristics· 115 V, 60 Hz, 0.5 hp

Line-to-line resistance at 25 °C (ohms)2.773 Ω / 9.4771 Ohms B Ph

Start configurationDOL

Breakdown torque3.6 lb-ft

Pull-up torque0.743 lb-ft

Locked-rotor torque0.96 lb-ft

Starting current (A)14.8 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%
Power factor %	62	80	89	92	93	93
Efficiency %	0	40.2	59.4	66.7	68.6	63.1
Speed rpm	1199	1184.4	1169.7	1152.4	1128.1	1079.2
Line amps A	2.31	2.69	3.36	4.23	5.3	6.95
Power W	166	248	341	448	567	738
Torque lb-ft	0	0.594	1.22	1.83	2.43	3.04

Documents & CAD

For this product 3

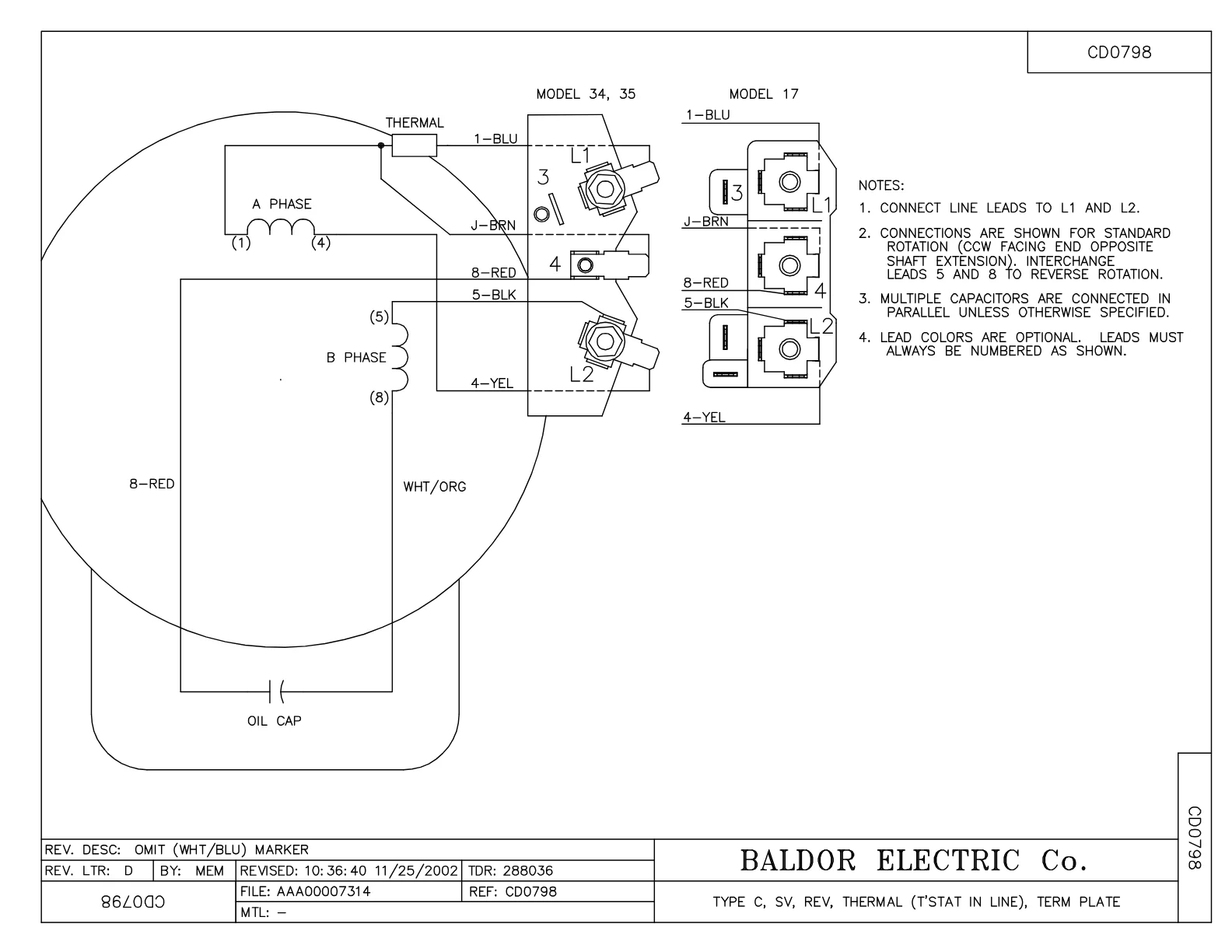

Wiring DiagramWiring DiagramPDF·38 KB·English

DatasheetDatasheetPDF·577 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·94 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor YPC364A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
34CB4501SP	TERMINAL BOX LID, STAMPED X (PLATED)	1 pcs	95 motors
HA1005A05SP	SLINGER, OD 1.50, ID .659, 203 BRG	1 pcs	112 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
