Baldor XM32422T

XM32422T

BaldorMFR # XM32422TSKU # YLSTJYLFCJ3L934

EnclosureXPFC

Frame324TS

Frame materialIron

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency30.000 HP @ 50 HZ · 40.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor XM32422T (XM32422T) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor XM32422T — price, stock availability and technical specifications.

Baldor XM32422T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureXPFC

Frame324TS

Frame materialIron

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency30.000 HP @ 50 HZ · 40.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency380.0 V @ 50 HZ · 230.0 V @ 60 HZ · 190.0 V @ 50 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupCLI GP D; CLII GP F,G

Hazardous area divisionDivision I

Agency approvalsCSA EEV · UL

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Constant torque speed range6

Current at voltage98.000 A @ 208.0 V · 90.000 A @ 230.0 V · 82.000 A @ 190.0 V · 45.000 A @ 460.0 V · 41.000 A @ 380.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load92.4 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)41.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Duty

IP ratingNONE

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)5400 rpm

Motor lead terminationFlying Leads

Motor type1252M

Mounting arrangementF1

Number of poles2

Overall length30.50 IN

Power factor88

Product familyHazardous Location Motor

Pulley face codeStandard

Rodent screenNone

Service factor1.00

Shaft diameter1.875 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)3540 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

Hazardous area temperature codeT3C

UPC781568973455

Product TypeExplosion Proof (Hazardous Location) Motors

Nameplate

CC number010A

Temperature codeT3C

Specification number12-0000-2141

Inverter typePWM

Catalog numberXM32422T

Constant horsepower range from60

Constant horsepower range to90

Horsepower (HP)40//30

Constant torque frequency from (Hz)6

Constant torque frequency to (Hz)60

Voltage (V)230/460//190/380

Variable torque frequency from (Hz)6

Variable torque frequency to (Hz)60

Current (A)90/45//82/41

Magnetizing current (A)24/12

Speed (rpm)3540//2950

Maximum speed (rpm)5400

Frequency (Hz)60//50

Phase3

Insulation classF

Nominal efficiency (%)92.4

Service factor1.00

NEMA design letterA

SL HZ1

Inertia (WK²)4.07

Frame size324TS

Rating40C AMB-CONT

Nameplate numberNP0887XPSLEV

Performance

General characteristics· 460 V, 60 Hz, 40 hp

Line-to-line resistance at 25 °C (ohms)0.12 Ω

Temperature rise at rated load (°C)59° C

Start configurationDOL

Breakdown torque250 lb-ft

Pull-up torque85.8 lb-ft

Locked-rotor torque118 lb-ft

Starting current (A)325 A

Line-to-line resistance at 25 °C (ohms)0.125 Ω

Temperature rise at rated load (°C)51° C

Temperature rise at service factor load (°C)62° C

Start configurationDOL

Breakdown torque243 lb-ft

Pull-up torque91.37 lb-ft

Locked-rotor torque126 lb-ft

Starting current (A)319 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	11	67	83	89	90	91	91
Efficiency %	0	84.6	90.4	91.9	92.6	92	91.5
Speed rpm	3599	3587	3574	3561	3548	3533	3518
Line amps A	11.7	16.4	24.7	34.4	44.7	55.9	67.4
Power W	1021	8797	16407	24273	32221	40468	48906
Torque lb-ft	0	14.6	29.2	44.1	59.2	74.2	89.5

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·789 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

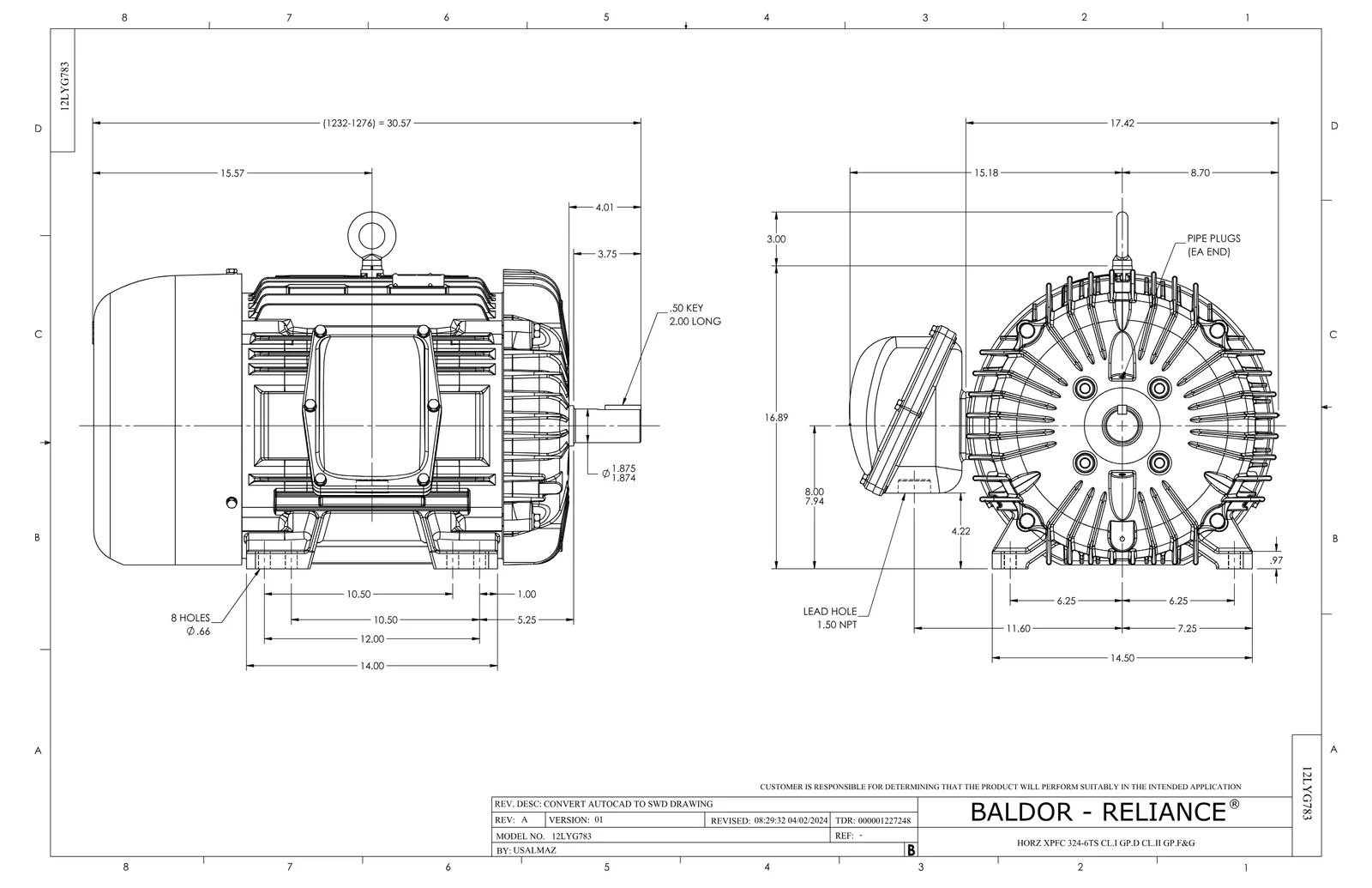

Dimension DrawingDimension SheetPDF·226 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor XM32422T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	11 pcs	1,025 motors
