Baldor XM28322T

XM28322T

BaldorMFR # XM28322TSKU # YLSTG215SJ50LJD

EnclosureTEFC

Frame286TS

Frame materialCast Iron

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency25.000 HP @ 50 HZ · 30.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor XM28322T (XM28322T) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor XM28322T — price, stock availability and technical specifications.

Baldor XM28322T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame286TS

Frame materialCast Iron

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency25.000 HP @ 50 HZ · 30.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency380.0 V @ 50 HZ · 230.0 V @ 60 HZ · 190.0 V @ 50 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupCLI GP D; CLII GP F,G

Hazardous area divisionDivision I

Agency approvalsCSA EEV · UL

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Constant torque speed range6

Current at voltage70.000 A @ 190.0 V · 68.000 A @ 230.0 V · 35.000 A @ 380.0 V · 34.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load91.7 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)34.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingNONE

KVA codeG

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)5400 rpm

Motor lead terminationFlying Leads

Motor type1048M

Mounting arrangementF1

Number of poles2

Overall length27.24 IN

Power factor90

Product familyHazardous Location Motor

Pulley face codeStandard

Rodent screenNone

Service factor1.00

Shaft diameter1.625 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)3525 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

Hazardous area temperature codeT3C

UPC781568973424

Product TypeExplosion Proof (Hazardous Location) Motors

Nameplate

CC number010A

Temperature codeT3C

Specification number10-0000-2077

Inverter typePWM

Catalog numberXM28322T

Constant horsepower range from60

Constant horsepower range to90

Horsepower (HP)30//25

Constant torque frequency from (Hz)6

Constant torque frequency to (Hz)60

Voltage (V)230/460//190/380

Variable torque frequency from (Hz)6

Variable torque frequency to (Hz)60

Current (A)68/34//70/35

Magnetizing current (A)8.7

Speed (rpm)3525//2920

Maximum speed (rpm)5400

Frequency (Hz)60//50

Phase3

Insulation classF

Nominal efficiency (%)91.7

Service factor1.00

NEMA design letterB

SL HZ1.3

Inertia (WK²)2.07

Frame size286TS

Rating40C AMB-CONT

Nameplate numberNP0887XPSLEV

Performance

General characteristics· 460 V, 60 Hz, 30 hp

Line-to-line resistance at 25 °C (ohms)0.237 Ω

Temperature rise at rated load (°C)69° C

Temperature rise at service factor load (°C)86° C

Start configurationDOL

Breakdown torque135 lb-ft

Pull-up torque47 lb-ft

Locked-rotor torque65.2 lb-ft

Starting current (A)212 A

Line-to-line resistance at 25 °C (ohms)0.237 Ω

Temperature rise at rated load (°C)71° C

Temperature rise at service factor load (°C)90° C

Start configurationDOL

Breakdown torque131 lb-ft

Pull-up torque49.99 lb-ft

Locked-rotor torque69.35 lb-ft

Starting current (A)208 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	11	67	83	88	90	90	90	90
Efficiency %	0	86.8	91.2	91.9	91.7	90.8	89.6	91.2
Speed rpm	3599	3583	3566	3547	3527	3504	3479	3513
Line amps A	8.74	12.4	18.7	26.1	34.1	43.1	52.5	39.5
Power W	778	6624	12432	18359	24475	30972	37539	28373
Torque lb-ft	0	11.3	22.4	33.5	44.8	56.5	68.1	51.8

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·801 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

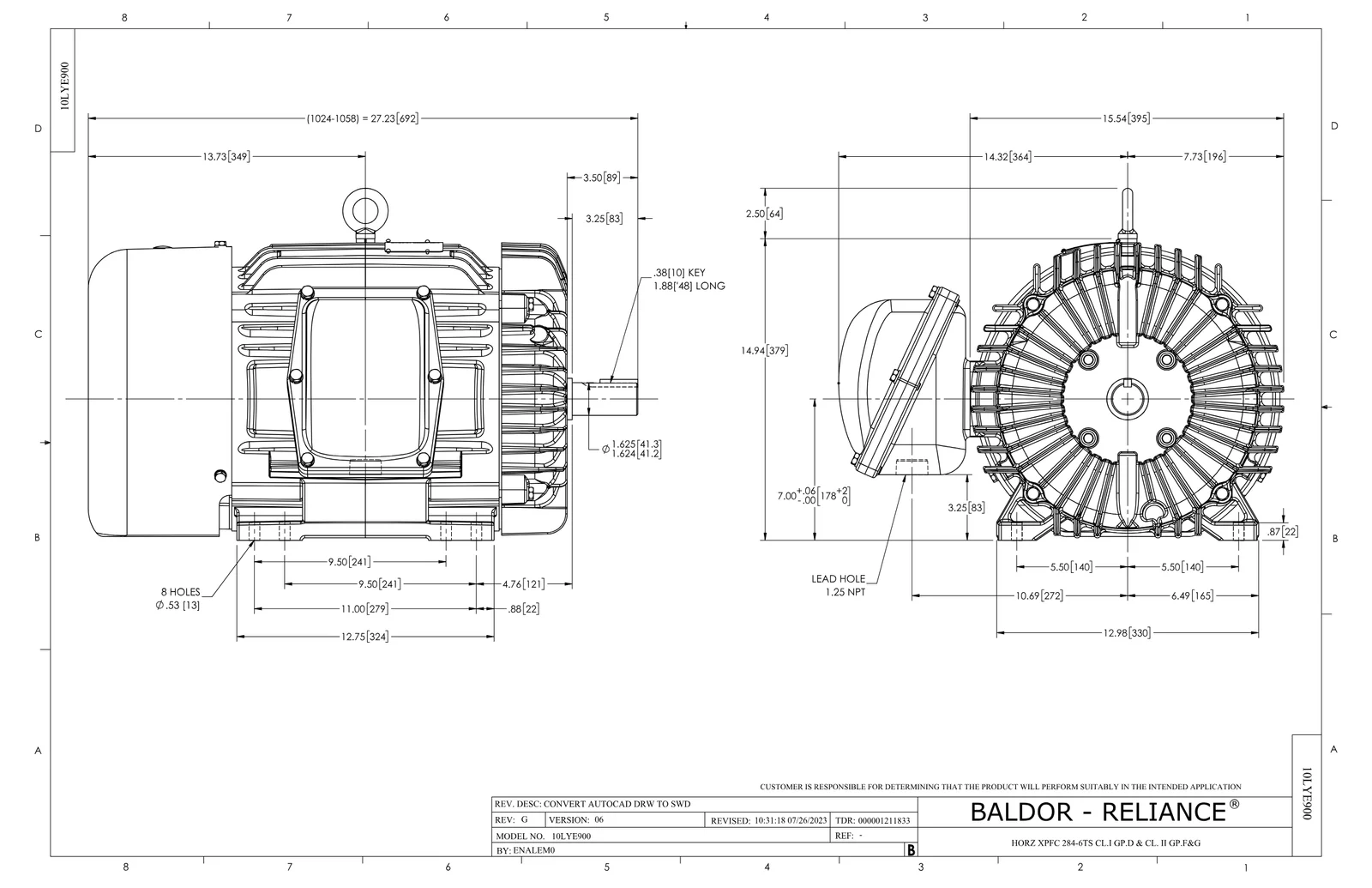

Dimension DrawingDimension SheetPDF·237 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor XM28322T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	7 pcs	1,025 motors
37FN3002C03	EXFN, PLASTIC, 6.00 OD, 1.690 ID	1 pcs	35 motors
