Baldor XL21342

XL21342

BaldorMFR # XL21342SKU # YLS7VSJZUMI0KTE

EnclosureXPFC

Frame213

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency3.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor XL21342 (XL21342) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor XL21342 — price, stock availability and technical specifications.

Baldor XL21342

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureXPFC

Frame213

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency3.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupCLI GP D; CLII GP F,G

Hazardous area divisionDivision I

Agency approvalsUL · CSA

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage17.200 A @ 230.0 V · 34.400 A @ 115.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load78.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)17.2 a

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingNONE

KVA codeK

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead terminationFlying Leads

Motor type3740L

Mounting arrangementF1

Number of poles4

Overall length19.89 IN

Power factor71

Product familyGeneral Purpose

Pulley face codeStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.125 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)1735 rpm · 1750 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

Hazardous area temperature codeT3C

UPC781568973332

Product TypeExplosion Proof (Hazardous Location) Motors

Nameplate

Specification number37-0000-0389

Catalog numberXL21342

Horsepower (HP)3

Temperature codeT3C

Voltage (V)115/230

Current (A)34.4/17.2

Speed (rpm)1750

Frequency (Hz)60

Phase1

Insulation classF

Service factor1.15

NEMA design letter-

Code letter (locked rotor kVA)K

Rating40C AMB-CONT

Frame size213

NEMA nominal efficiency (%)78.5

Power factor71

Nameplate numberNP1426XPSL

Performance

General characteristics· 230 V, 60 Hz, 3 hp

Line-to-line resistance at 25 °C (ohms)0.38356 Ω / 2.2154 Ohms B Ph

Temperature rise at rated load (°C)61° C

Temperature rise at service factor load (°C)72° C

Start configurationDOL

Breakdown torque33.1 lb-ft

Pull-up torque20 lb-ft

Locked-rotor torque31.8 lb-ft

Starting current (A)112.95 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	12	34	51	63	71	76	79	74
Efficiency %	0	64.7	76.2	79.4	79.8	79.2	77.6	79.4
Speed rpm	1798.9	1787.7	1775.8	1762.6	1749.1	1732.4	1713	1739
Line amps A	10.5	11.1	12.5	14.6	17.1	20.2	23.7	19
Power W	285	872	1477	2116	2798	3521	4301	3232
Torque lb-ft	0	2.221	4.463	6.71	8.992	11.34	13.71	10.4

Documents & CAD

For this product 3

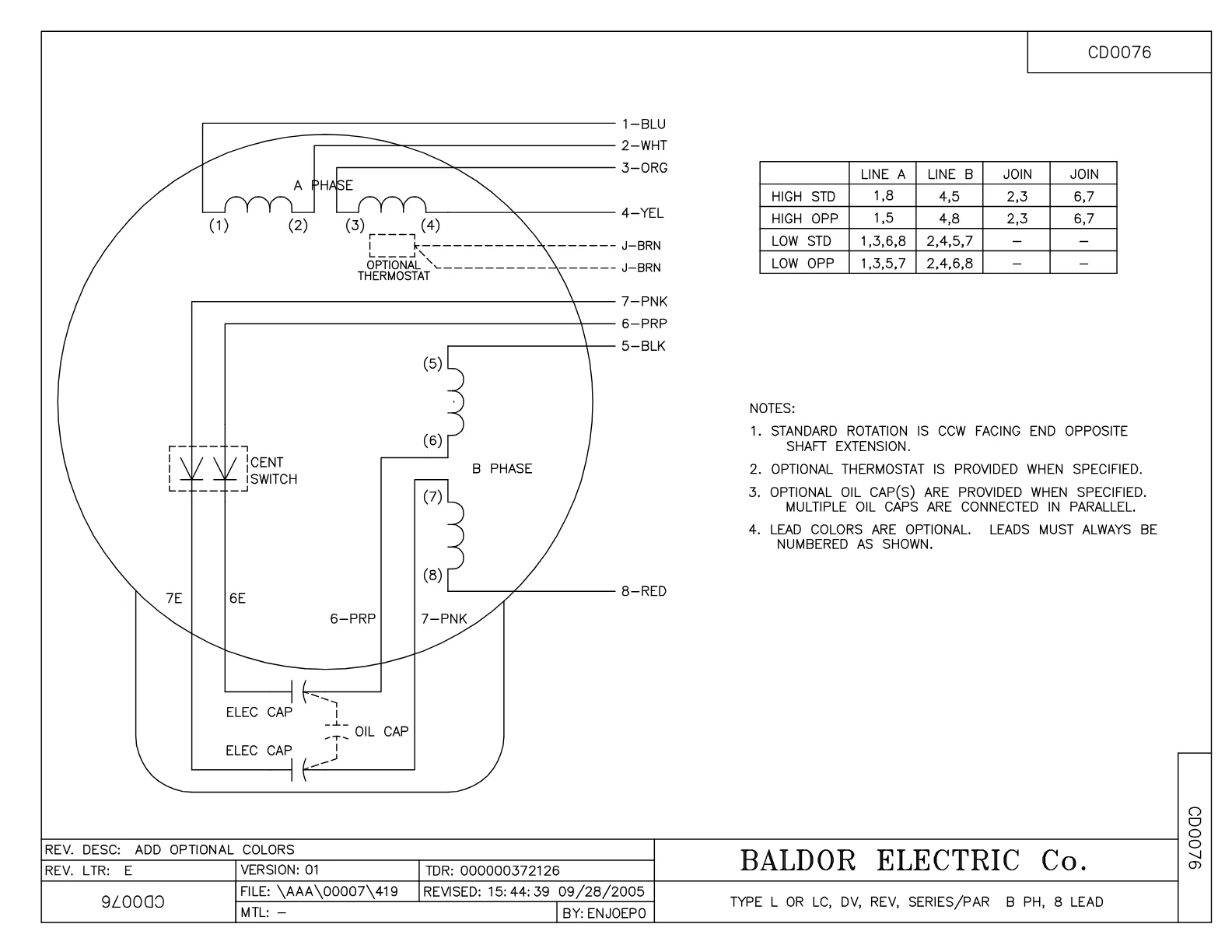

Wiring DiagramWiring DiagramPDF·40 KB·English

DatasheetDatasheetPDF·590 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·108 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor XL21342 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
37FN3002A01SP	EXFN, PLASTIC, 9.00 OD, 1.155 ID	1 pcs	141 motors
35CB3001A02SP	EXPL PROOF CONDUIT BOX, 3/4"PIPE TAP LEA	1 pcs	100 motors
35CB3500A01SP	CONDUIT BOX LID, MACH	1 pcs	203 motors
EC1850A06SP	ELEC CAP 115V 2.0 X 4.3 X	2 pcs	24 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
