Baldor XL181542

XL181542

BaldorMFR # XL181542SKU # YLSIIKBVZY26QNK

EnclosureXPFC

Frame184

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor XL181542 (XL181542) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor XL181542 — price, stock availability and technical specifications.

Baldor XL181542

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureXPFC

Frame184

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupCLI GP D; CLII GP F,G

Hazardous area divisionDivision I

Agency approvalsUL · CSA

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage19.000 A @ 115.0 V · 9.500 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load70.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)9.5 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingNONE

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead terminationFlying Leads

Motor lead quantity/wire size4 @ 14 AWG, A PH

Motor typeX3628L

Mounting arrangementF1

Number of poles4

Overall length16.92 IN

Power factor70

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS NON-COMPLIANT

Service factor1.15

Shaft diameter0.875 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

Hazardous area temperature codeT3C

UPC781568973295

Product TypeExplosion Proof (Hazardous Location) Motors

Nameplate

Specification number36N07-79

Catalog numberXL181542

Horsepower (HP)1.5

Temperature codeT3C

Voltage (V)115/230

Current (A)19/9.5

Speed (rpm)1725

Frequency (Hz)60

Phase1

Insulation classF

Service factor1.15

NEMA design letterL

Code letter (locked rotor kVA)L

Rating40C AMB-CONT

Frame size184

NEMA nominal efficiency (%)70

Power factor70

Nameplate numberNP1426XPSL

Performance

General characteristics· 230 V, 60 Hz, 1.5 hp

Line-to-line resistance at 25 °C (ohms)1.16 Ω / 0.581 Ohms B Ph

Temperature rise at rated load (°C)67° C

Temperature rise at service factor load (°C)76° C

Start configurationDOL

Breakdown torque14 lb-ft

Pull-up torque12 lb-ft

Locked-rotor torque16 lb-ft

Starting current (A)68 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	18	38	50	61	68	75	79	72
Efficiency %	0	56.2	66.9	72.6	77.7	76.2	72.8	76.8
Speed rpm	1798	1784	1776	1764	1754	1742	1727	1747
Line amps A	7.1	7.3	7.8	8.8	9.6	10.9	12.6	10.4
Power W	294	507	848	1165	1443	1827	2274	1673
Torque lb-ft	0	1.125	2.25	3.375	4.5	5.625	6.75	5.17

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·595 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

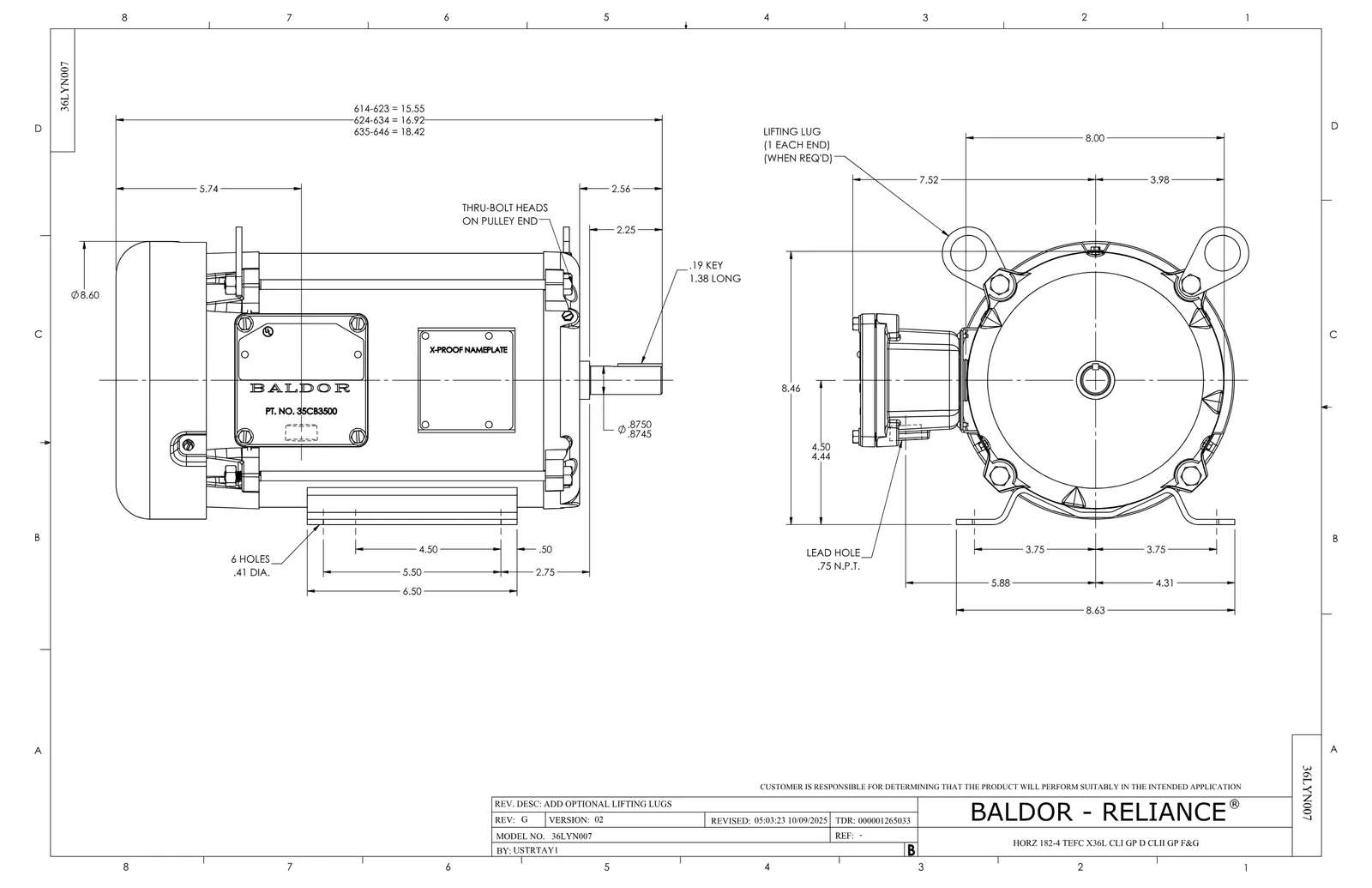

Dimension DrawingDimension SheetPDF·112 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor XL181542 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1400A03SP	ELEC CAP, 400-480 MFD, 125V, 1.81D X 3.	1 pcs	37 motors
35CB3001A02SP	EXPL PROOF CONDUIT BOX, 3/4"PIPE TAP LEA	1 pcs	100 motors
35CB3500A01SP	CONDUIT BOX LID, MACH	1 pcs	203 motors
36FN3000A01SP	EXFN, PLASTIC, 7.00 OD, .912 ID	1 pcs	167 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
