Baldor XL050745A

XL050745A

BaldorMFR # XL050745ASKU # YLS3YJ1ZDW5QX27

EnclosureXPFC

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.750 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor XL050745A (XL050745A) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor XL050745A — price, stock availability and technical specifications.

Baldor XL050745A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureXPFC

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.750 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupCLI GP C,D; CLII GP F,G

Hazardous area divisionDivision I

Agency approvalsCSA · UL

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage10.800 A @ 115.0 V · 5.400 A @ 230.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load70.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)5.4 a

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

IP ratingNONE

KVA codeM

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead terminationFlying Leads

Motor type3528L

Mounting arrangementF1

Number of poles4

Overall length15.17 IN

Power factor68

Product familyGeneral Purpose

Pulley face codeStandard

Rodent screenNone

Service factor1.00

Shaft diameter0.625 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)1750 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationEP

Winding thermal 2None

Hazardous area temperature codeT4

UPC781568973196

Product TypeExplosion Proof (Hazardous Location) Motors

Nameplate

Specification number35U585F218G1

Catalog numberXL050745A

Horsepower (HP).75

Temperature codeT4

Voltage (V)115/230

Current (A)10.4/5.2

Speed (rpm)1760

Frequency (Hz)60

Phase1

Insulation classF

Service factor1.00

NEMA design letterN

Code letter (locked rotor kVA)M

Rating40C AMB-CONT

Frame size56

NEMA nominal efficiency (%)66

Power factor68

Nameplate numberNP0301XPSL

Performance

General characteristics· 115 V, 60 Hz, 0.75 hp

Line-to-line resistance at 25 °C (ohms)0.75553 Ω / 1.79 Ohms B Ph

Temperature rise at rated load (°C)52° C

Start configurationDOL

Breakdown torque9.31 lb-ft

Pull-up torque7.75 lb-ft

Locked-rotor torque10.8 lb-ft

Starting current (A)73 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	18	34	48	59	68	74	80
Efficiency %	0	46.1	61.4	67.6	70.4	70.9	70
Speed rpm	1797.1	1788.9	1780.5	1771.8	1761	1749.6	1734.2
Line amps A	7.7	7.89	8.38	9.21	10.3	11.6	13.3
Power W	154	300	453	619	795	986	1202
Torque lb-ft	0	0.5449	1.101	1.664	2.236	2.814	3.419

Documents & CAD

For this product 4

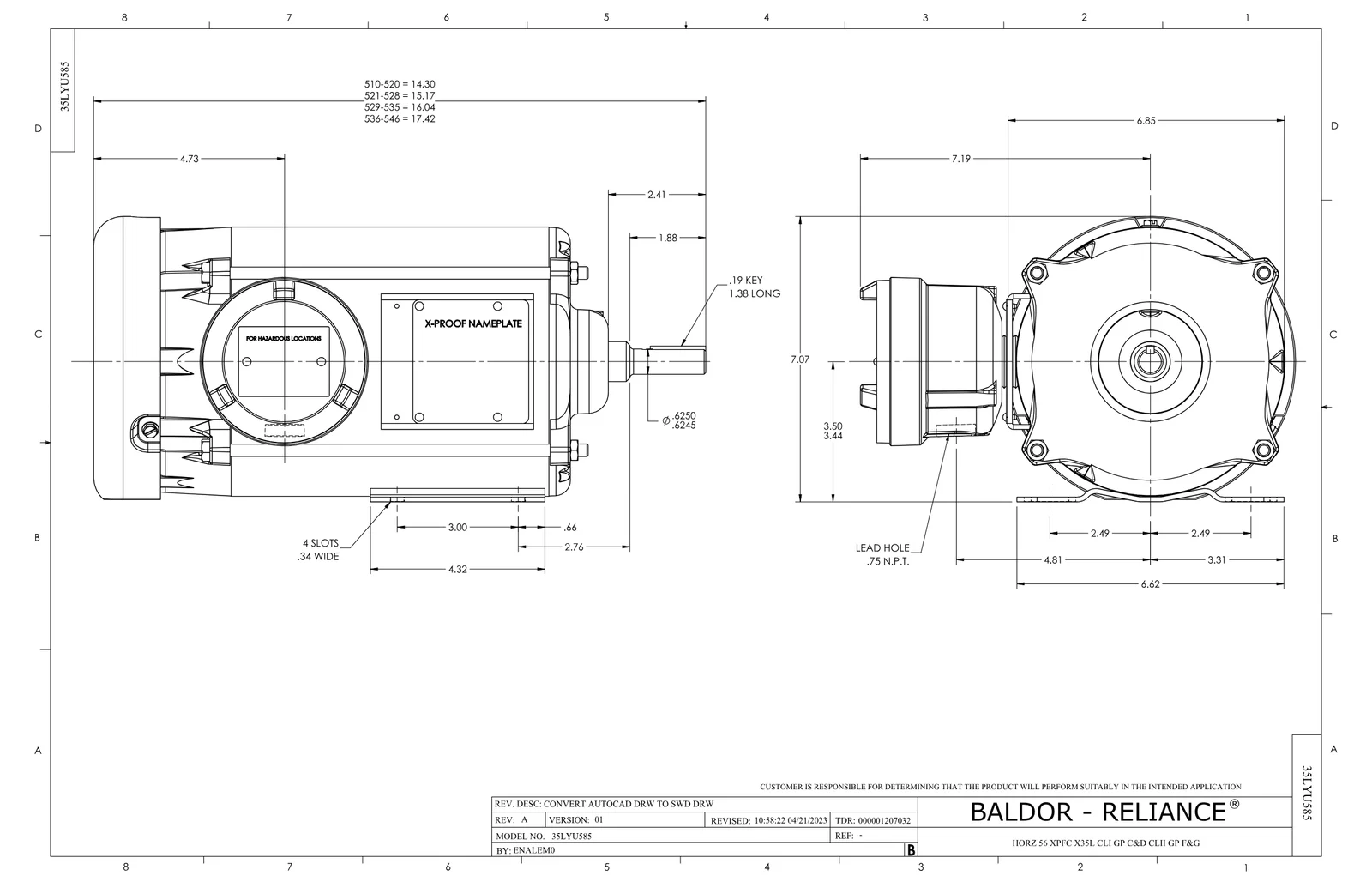

Dimension DrawingDimension SheetPDF·108 KB·English

Wiring DiagramWiring DiagramPDF·34 KB·English

DatasheetDatasheetPDF·586 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor XL050745A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1270A02SP	ELEC CAP, 270-324 MFD, 125V, 1.48D X 3.	2 pcs	65 motors
35FH4005A01SP	IEC FH NO GREASER W/PRIMED	1 pcs	134 motors
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1 pcs	436 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
