How can I get a price quote for Baldor XEFRPM401004?

You can request a fast quote for Baldor XEFRPM401004 from Yılsa Engineering. Reference part number YLS8B66VCP8BPXS. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor XEFRPM401004 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor XEFRPM401004 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor XEFRPM401004?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor XEFRPM401004

RPM XE eXtreme Efficient Motor - 100 hp, 1800 rpm, 3 ph, 460 V, HL405T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1800 rpm Base, Base Mount, Continuous Duty

BaldorMFR # XEFRPM401004SKU # YLS8B66VCP8BPXS

EnclosureTEFC

FrameHL405T

Frame materialExposed Laminations

Frequency (Hz)60.00 Hz

Output at frequency100.000 HP @ 60 HZ

Phase3

Have questions?Chat on WhatsApp

About This Product

RPM XE eXtreme Efficient Motor - 100 hp, 1800 rpm, 3 ph, 460 V, HL405T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1800 rpm Base, Base Mount, Continuous Duty

Features and Benefits

Up to 4 bands beyond NEMA premium efficiency on sine wave power
Meets NEMA premium efficiency levels as a motor and drive package
Aluminum square finned design 10 - 20 Horsepower
Laminated steel frame design 25 - 125 Horsepower
Operates at true synchronous speed
High performance inverter duty insulation system
Totally Enclosed, Fan cooled, 1800 RPM, Design B, 1.15 SF, Class H insulation (B rise)

Baldor XEFRPM401004

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

FrameHL405T

Frame materialExposed Laminations

Frequency (Hz)60.00 Hz

Output at frequency100.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Agency approvalsCCSA US · NEMA_PREMIUM

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Constant torque speed range1-60

Current at voltage98.000 A @ 460.0 V

Duty ratingCONT

Feedback deviceNO FEEDBACK

High voltage full load current (A)98.0 a

Frame prefixHL

Heater indicatorNo Heater

Insulation classH

IP ratingIP54

KVA codeF

Mounting arrangementF1

Overall length40.56 IN

Product familyFan - Centrifugal

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.15

Shaft diameter2.874 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)1800 rpm

Motor standardsNEMA

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

UPC781568837795

Motor CategoryEXtreme Efficient RPMAC Motor

Motor Supply Voltage460 V

Base RPM1800 rpm

Mounting TypeBase

NEMA Design ClassB

Type Of BearingBall

Weight990 lbs

Product TypeSevere Duty Motors

Nameplate

Catalog numberXEFRPM401004

Specification numberH40-A000-0001

Frame sizeHL405T

Ambient temperature (°C)40

Service factor1.15

EnclosureTEFC

Phase3

NEMA design letterB

Code letter (locked rotor kVA)F

NEMA nominal efficiency (%)97.3

Guaranteed efficiency (%)96.7

Power factor99.1

Insulation classH

Drive end bearing75BC02J30X

Opposite drive end bearing55BC02J30X

Constant horsepower frequency range (Hz)60-90

Constant torque frequency range (Hz)1-60

Variable torque frequency range (Hz)0-60

Nameplate number000613007QF

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·179 KB·English

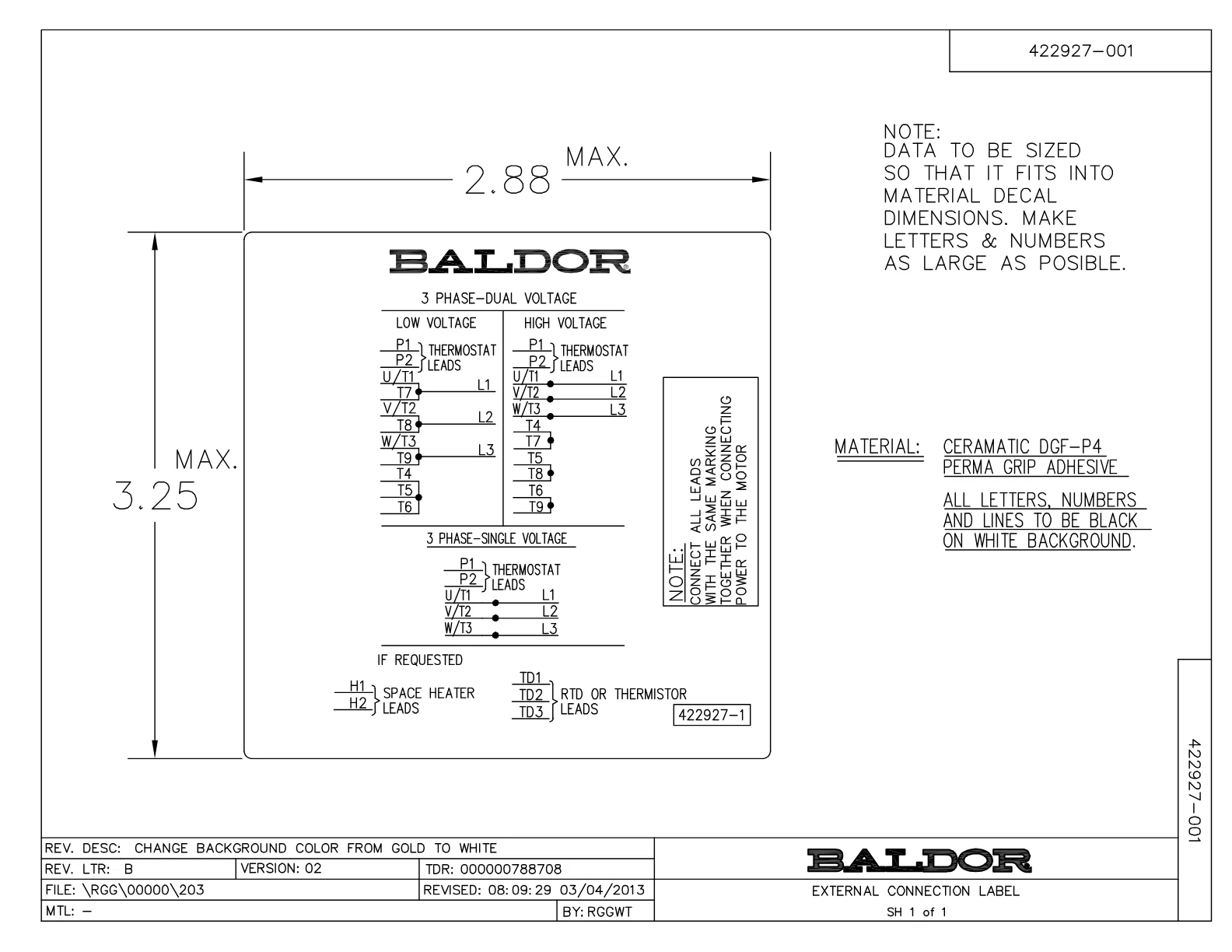

Wiring DiagramWiring DiagramPDF·55 KB·English

DatasheetDatasheetPDF·696 KB·English

Performance CurvePerformance CurvePDF·101 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·50 KB·English

CAD Files 7

3D Model

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor XEFRPM401004 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
