Baldor XEFRPM25204

RPM XE eXtreme Efficient Motor - 20 hp, 1800 rpm, 3 ph, 460 V, HL256T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1800 rpm Base, Base Mount, Continuous Duty

BaldorMFR # XEFRPM25204SKU # YLSV4FB2OZB34XQ

EnclosureTEFC

FrameHL256T

Frame materialExposed Laminations

Frequency (Hz)60.00 Hz

Motor letter typeCP

Output at frequency20.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

RPM XE eXtreme Efficient Motor - 20 hp, 1800 rpm, 3 ph, 460 V, HL256T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1800 rpm Base, Base Mount, Continuous Duty

Features and Benefits

Up to 4 bands beyond NEMA premium efficiency on sine wave power
Meets NEMA premium efficiency levels as a motor and drive package
Aluminum square finned design 10 - 20 Horsepower
Laminated steel frame design 25 - 125 Horsepower
Operates at true synchronous speed
High performance inverter duty insulation system
Totally Enclosed, Fan cooled, 1800 RPM, Design B, 1.15 SF, Class H insulation (B rise)

Baldor XEFRPM25204

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

FrameHL256T

Frame materialExposed Laminations

Frequency (Hz)60.00 Hz

Motor letter typeCP

Output at frequency20.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Agency approvalsCCSA US · NEMA_PREMIUM

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Constant torque speed range1-60

Current at voltage20.000 A @ 460.0 V

Duty ratingCONT

Feedback deviceNO FEEDBACK

High voltage full load current (A)20.0 a

Frame prefixHL

Heater indicatorNo Heater

Insulation classH

IP ratingIP54

KVA codeG

Mounting arrangementF1

Overall length24.89 IN

Product familyFan - Centrifugal

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.15

Shaft diameter1.625 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)1800 rpm

Motor standardsNEMA

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

UPC781568837665

Motor CategoryEXtreme Efficient RPMAC Motor

Motor Supply Voltage460 V

Base RPM1800 rpm

Mounting TypeBase

NEMA Design ClassB

Type Of BearingBall

Weight230 lbs

Product TypeSevere Duty Motors

Nameplate

Catalog numberXEFRPM25204

Specification numberH25-A000-0002

Frame sizeHL256T

Ambient temperature (°C)40

Service factor1.15

EnclosureTEFC

Phase3

NEMA design letterB

Code letter (locked rotor kVA)G

NEMA nominal efficiency (%)94.9

Guaranteed efficiency (%)94

Power factor92.8

Insulation classH

Drive end bearing45BC02J30X

Opposite drive end bearing35BC02J30X

Constant horsepower frequency range (Hz)60-90

Constant torque frequency range (Hz)1-60

Variable torque frequency range (Hz)0-60

Nameplate number000613007QF

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·147 KB·English

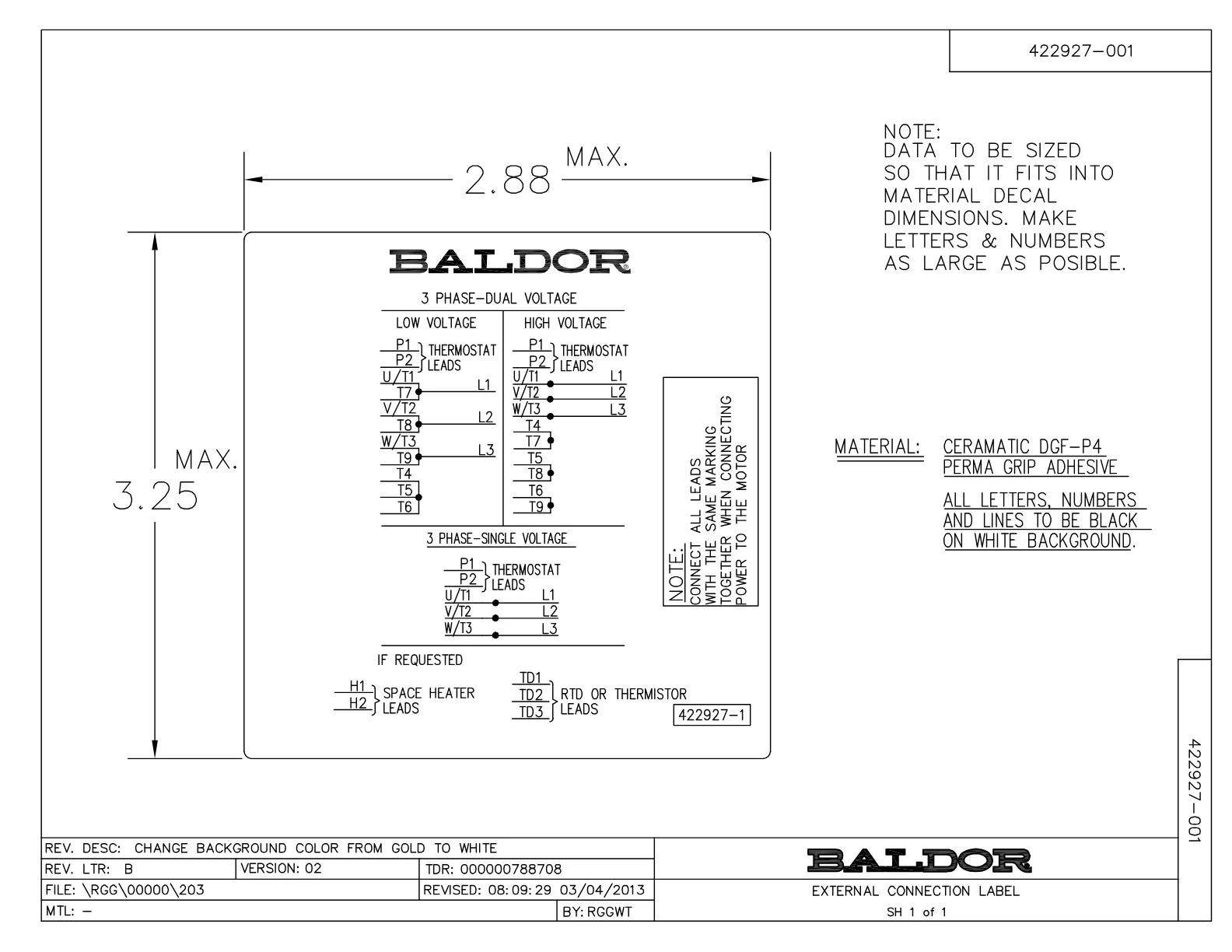

Wiring DiagramWiring DiagramPDF·55 KB·English

DatasheetDatasheetPDF·664 KB·English

Performance CurvePerformance CurvePDF·100 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·50 KB·English

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor XEFRPM25204 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
