How can I get a price quote for Baldor WWL3606?

You can request a fast quote for Baldor WWL3606 from Yılsa Engineering. Reference part number YLSRI0J0PT42JE2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor WWL3606 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor WWL3606 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor WWL3606?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

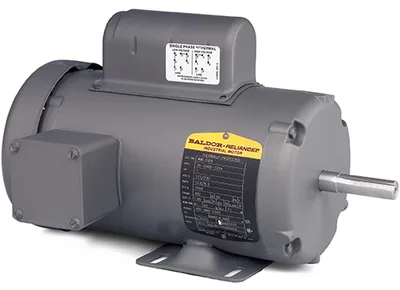

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor WWL3606

Woodworking Motor - 3 hp, 3600 rpm, 1 ph, 230 V, 184YZ Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Bracket / Footless Mount, Continuous Duty

BaldorMFR # WWL3606SKU # YLSRI0J0PT42JE2

Motor CategoryWoodworking Motor

Motor Phase1 ph

Motor Horsepower3 hp

Synchronous Rpm3600 rpm

Motor Supply Voltage230 V

Frame Size184YZ

Have questions?Chat on WhatsApp

About This Product

Woodworking Motor - 3 hp, 3600 rpm, 1 ph, 230 V, 184YZ Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Bracket / Footless Mount, Continuous Duty

Baldor WWL3606

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryWoodworking Motor

Motor Phase1 ph

Motor Horsepower3 hp

Synchronous Rpm3600 rpm

Motor Supply Voltage230 V

Frame Size184YZ

Enclosure TypeTEFC (Totally Enclosed Fan Cooled)

Frequency Rating60 Hz

Full Load Current15.50 A

Duty Condition TypeContinuous Duty

Full Load Efficiency72.00 %

Amps @ Voltage15.5 A @ 230 V

Volts @ Frequency230 V @ 60 Hz

Shaft Diameter0.7500 in

Overall Length C Dimension14.89 in

Service Factor1.00

Frame MaterialSteel

Insulation ClassB

Standards MetCSA, UR

Harmonization Code8501.40.6040

Weight73 lbs

ApplicationsWoodworking equipment such as table saws, planers, etc.

Additional DetailsMotor swivels on rod for belt tensioning. Shaft supplied with full key and keyway. Extra high breakdown torques for maximum cutting power. 1.00 Service Factor.

Mounting TypeBracket / Footless

Product TypeDefinite Purpose Motors
