Baldor WDL3507

Baldor-Reliance WDL3507 is a 0.75 HP, 1750 rpm, single-phase 115/230 V, 60 Hz, 56 frame, TEFC (totally enclosed fan cooled) wash down AC electric motor.

BaldorMFR # WDL3507SKU # YLSSCRSOVVPQN7T

EnclosureTEFC

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.750 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance WDL3507 is a 0.75 HP, 1750 rpm, single-phase 115/230 V, 60 Hz, 56 frame, TEFC (totally enclosed fan cooled) wash down AC electric motor.

Baldor WDL3507

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.750 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage10.000 A @ 115.0 V · 5.000 A @ 230.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load70.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)5.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3522L

Mounting arrangementF1

Number of poles4

Overall length13.22 IN

Power factor69

Product familyWash Down

Pulley end bearing typeSealed Bearing

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.25

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1750 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568747810

Nameplate

Catalog numberWDL3507

Specification number35J271G393

Horsepower (HP).75

Voltage (V)115/230

Current (A)10/5

Speed (rpm)1750

Frame size56

Frequency (Hz)60

Phase1

Service factor1.25

Code letter (locked rotor kVA)L

NEMA design letterN

Insulation classF

NEMA nominal efficiency (%)70

Power factor69

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1496L

Performance

General characteristics· 115 V, 60 Hz, 0.75 hp

Line-to-line resistance at 25 °C (ohms)1.14 Ω / 1.85 Ohms B Ph

Temperature rise at rated load (°C)91° C

Temperature rise at service factor load (°C)119° C

Start configurationDOL

Breakdown torque4.86 lb-ft

Pull-up torque4 lb-ft

Locked-rotor torque8.91 lb-ft

Starting current (A)59.09 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	17	41	58	70	77	82	85	81
Efficiency %	0	57.2	69.2	71.9	72.1	70	66	70.9
Speed rpm	1796	1784	1770	1754	1737	1716	1687	1716
Line amps A	4.92	5.24	6.06	7.22	8.64	10.38	12.49	10.3
Power W	95.68	246	407	582	766	975	1219	963
Torque lb-ft	0	0.556	1.12	1.68	2.24	2.8	3.36	2.8

Documents & CAD

For this product 3

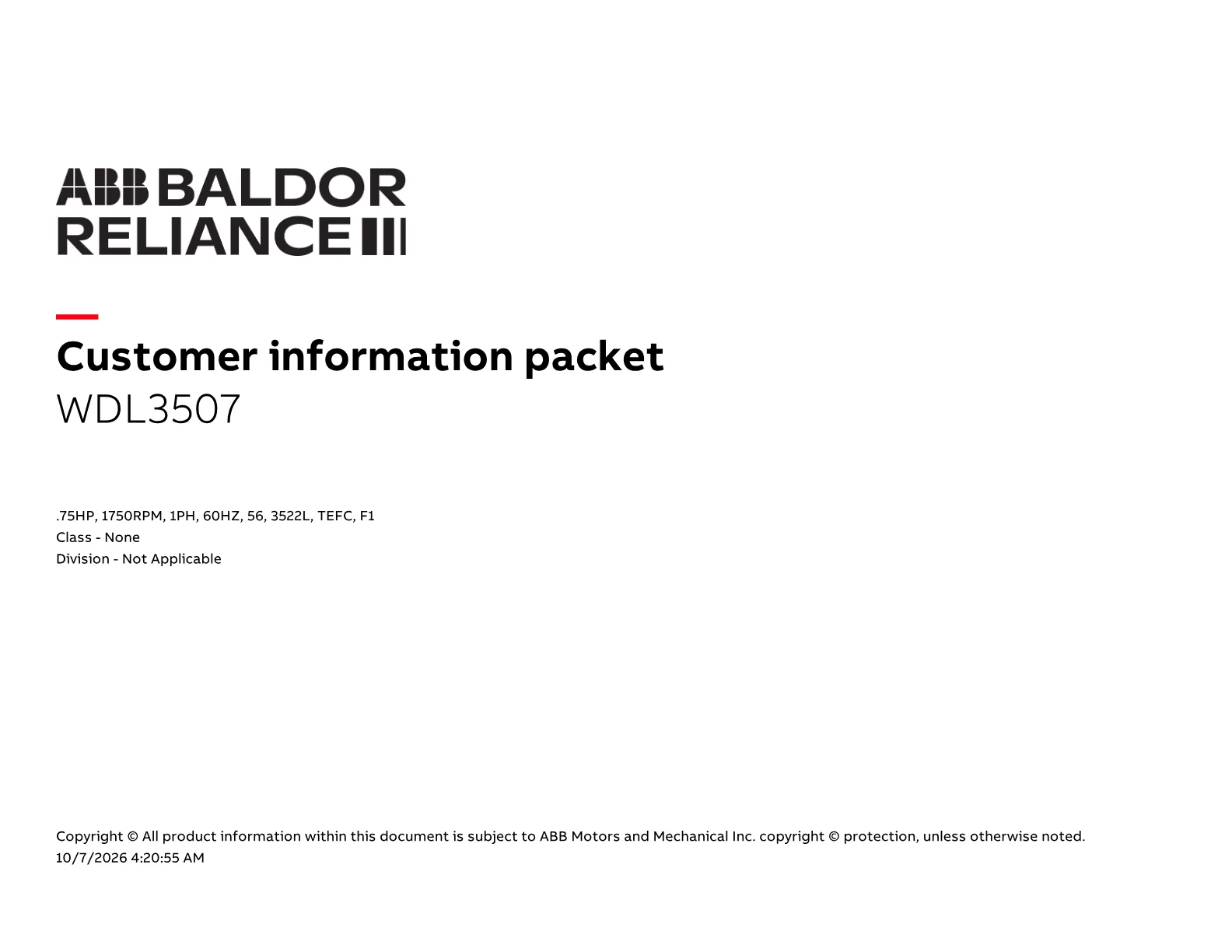

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·603 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·121 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor WDL3507 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1540A06SP	ELEC CAP, 540-648 MFD, 125V, 2.06D X 4.	1 pcs	53 motors
35CB4802A02SP	CAPACITOR COVER, STAMPED X	1 pcs	103 motors
HW4600B39SP	V-RING SLINGER 0.550 X 0.790 X .18 VITON	1 pcs	142 motors
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1 pcs	436 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
