How can I get a price quote for Baldor WCM3312T?

You can request a fast quote for Baldor WCM3312T from Yılsa Engineering. Reference part number YLSJV7428FRI65G. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor WCM3312T in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor WCM3312T genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor WCM3312T?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

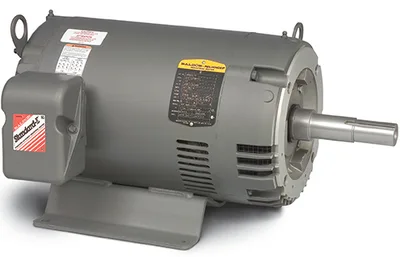

Baldor WCM3312T

Close Coupled Pump Motor - 10 hp, 3600 rpm, 3 ph, 208-230/460 V, 213TCZ Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, C-Face / Foot Mounted Mount, Continuous Duty

BaldorMFR # WCM3312TSKU # YLSJV7428FRI65G

Motor CategoryClose Coupled Pump Motor

Motor Phase3 ph

Motor Horsepower10 hp

Synchronous Rpm3600 rpm

Motor Supply Voltage208-230/460 V

Frame Size213TCZ

Have questions?Chat on WhatsApp

About This Product

Close Coupled Pump Motor - 10 hp, 3600 rpm, 3 ph, 208-230/460 V, 213TCZ Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, C-Face / Foot Mounted Mount, Continuous Duty

Baldor WCM3312T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryClose Coupled Pump Motor

Motor Phase3 ph

Motor Horsepower10 hp

Synchronous Rpm3600 rpm

Motor Supply Voltage208-230/460 V

Frame Size213TCZ

Enclosure TypeODP (Open Drip-Proof)

Frequency Rating60 Hz

Duty Condition TypeContinuous Duty

Full Load Current12.00 A

Full Load Efficiency88.50 %

Amps @ Voltage24.8 A @ 230 V; 26.0 A @ 208 V; 12.4 A @ 460 V

Volts @ Frequency208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz

Standards MetCSA, UR

Shaft Diameter0.8750 in

Overall Length C Dimension21.25 in

Warranty2 Year Warranty

Type Of BearingBall

NEMA Design ClassB

Service Factor1.15

Frame MaterialSteel

Insulation ClassB

IP Rating22/23

Harmonization Code8501.52.4000

Weight116 lbs

ApplicationsApplications for circulating and transferring fluids. Mounting designed to support pump unit.

Additional DetailsOversized ball bearings with locked drive end construction to minimize endplay. Furnished with rodent screens at both ends. EJMM and EJPM Super-E® motors have NEMA Premium® Efficiency.

Mounting TypeC-Face / Foot Mounted

Product TypePump Motors
