Baldor WCL1509T

Baldor-Reliance WCL1509T is a 7.5 HP, 3450 rpm, single-phase 230 V, 60 Hz, 213TCZ frame, open enclosure general purpose AC electric motor.

BaldorMFR # WCL1509TSKU # YLSKVVTKYKUXDR6

EnclosureOPEN

Frame213TCZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency7.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance WCL1509T is a 7.5 HP, 3450 rpm, single-phase 230 V, 60 Hz, 213TCZ frame, open enclosure general purpose AC electric motor.

Baldor WCL1509T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame213TCZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency7.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage37.000 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load81.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)37.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeG

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 8 AWG, A PH

Motor type3729L

Mounting arrangementF1

Number of poles2

Overall length21.25 IN

Power factor82

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorTapped & Key

Rodent screenIncluded

Service factor1.15

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568114803

Nameplate

Catalog numberWCL1509T

Specification number37E284X77

Horsepower (HP)7.5

Voltage (V)230

Current (A)37

Speed (rpm)3450

Frame size213TCZ

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)G

NEMA design letterL

Insulation classB

NEMA nominal efficiency (%)81

Power factor82

Rating40C AMB-CONT

Drive end bearing6309

Opposite drive end bearing6206

EnclosureOPEN

Nameplate numberNP1256L

Performance

General characteristics· 230 V, 60 Hz, 7.5 hp

Line-to-line resistance at 25 °C (ohms)0.23 Ω / 0.799 Ohms B Ph

Temperature rise at rated load (°C)58° C

Temperature rise at service factor load (°C)73° C

Start configurationDOL

Breakdown torque31 lb-ft

Pull-up torque17 lb-ft

Locked-rotor torque18 lb-ft

Starting current (A)205 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	19	46	65	76	82	85	87	0
Efficiency %	0	61.3	73.9	78.2	79.5	79.3	78.1	0
Speed rpm	3594	3574	3552	3528	3502	3472	3438	0
Line amps A	19.5	21.6	25.5	30.1	37.4	45	53.7	42
Power W	852	2340	3857	5431	7070	8784	10598	0
Torque lb-ft	0	2.825	5.65	8.475	11.3	14.125	16.95	0

Documents & CAD

For this product 4

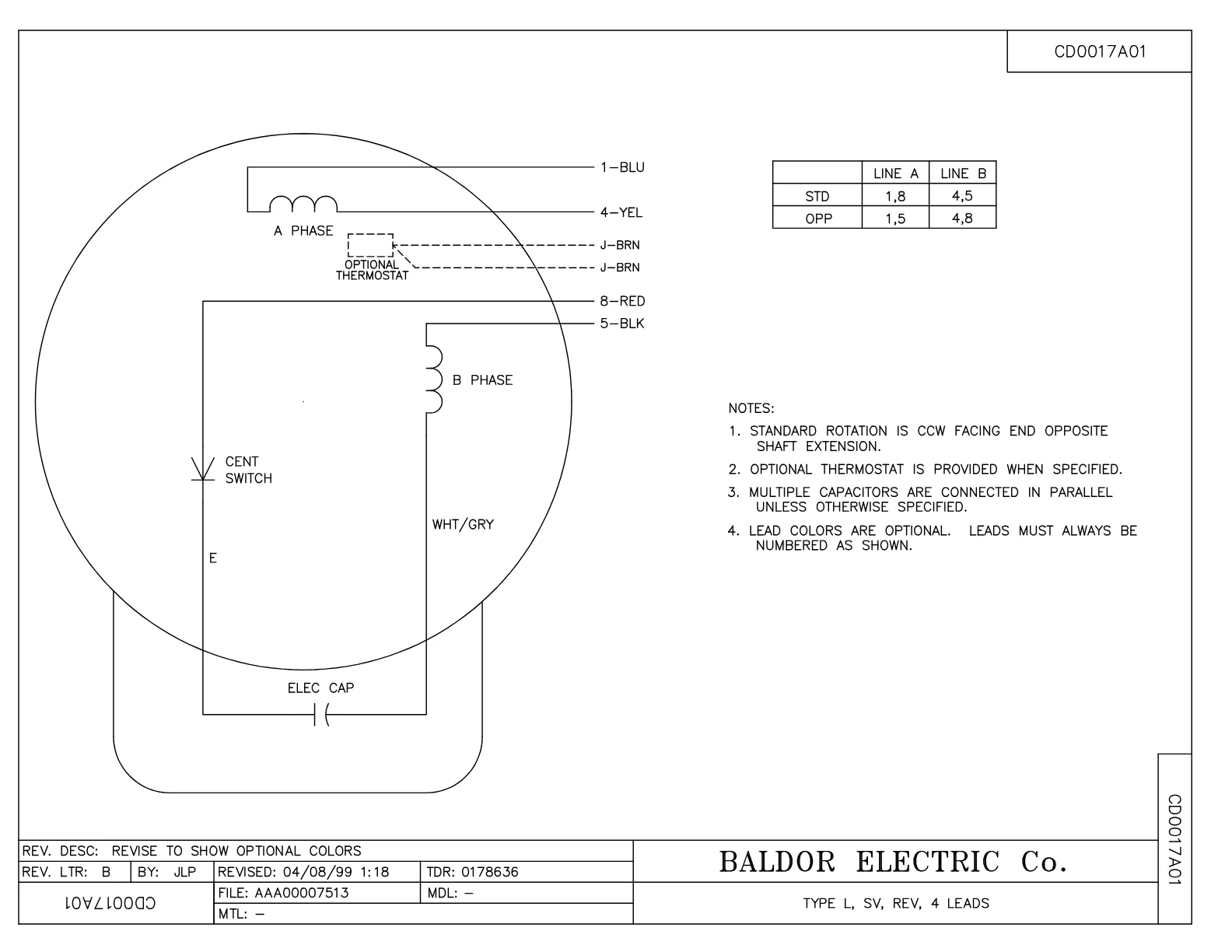

Wiring DiagramWiring DiagramPDF·35 KB·English

2D Drawing2D Drawing (PDF Dimension Sheet)PDF·54 KB

DatasheetDatasheetPDF·649 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·167 KB·English

CAD Files 2

2D Drawing

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor WCL1509T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
