Baldor WCL1409T

Close Coupled Pump Motor - 5 hp, 3600 rpm, 1 ph, 230 V, 184TCZ Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 3450 rpm Base, Foot Mounted Mount, Continuous Duty

BaldorMFR # WCL1409TSKU # YLSRWVLWB74FLV2

EnclosureOPEN

Frame184TCZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency5.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Close Coupled Pump Motor - 5 hp, 3600 rpm, 1 ph, 230 V, 184TCZ Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 3450 rpm Base, Foot Mounted Mount, Continuous Duty

Baldor WCL1409T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame184TCZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency5.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage23.000 A @ 230.0 V · 24.000 A @ 208.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load75.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)23.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeF

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 10 AWG, A PH

Motor type3634L

Mounting arrangementF1

Number of poles2

Overall length19.69 IN

Power factor88

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorTapped & Key

Rodent screenIncluded

Service factor1.15

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568114780

Motor CategoryClose Coupled Pump Motor

Motor Supply Voltage230 V

Base RPM3450 rpm

Harmonization Code8501.40.6040

Weight92 lbs

ApplicationsPumping systems where only single phase power is available.

Additional DetailsHeavy-gauge steel frame construction, corrosion resistant finish, oversized ball bearings with locked construction to minimize axial shaft movement.

Mounting TypeFoot Mounted

Product TypePump Motors

Nameplate

Catalog numberWCL1409T

Specification number36E775-190

Horsepower (HP)5

Voltage (V)230

Current (A)23

Speed (rpm)3450

Frame size184TCZ

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)F

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)75

Power factor88

Rating40C AMB-CONT

Drive end bearing6207

Opposite drive end bearing6205

EnclosureOPEN

Nameplate numberNP1256L

Performance

General characteristics· 230 V, 60 Hz, 5 hp

Line-to-line resistance at 25 °C (ohms)0.338 Ω / 1.16 Ohms B Ph

Temperature rise at rated load (°C)75° C

Temperature rise at service factor load (°C)90° C

Start configurationDOL

Breakdown torque18.7 lb-ft

Pull-up torque16 lb-ft

Locked-rotor torque18 lb-ft

Starting current (A)125 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	25	59	76	84	88	90	90	0
Efficiency %	0	63	74.5	77.7	78	76.5	73.6	0
Speed rpm	3591	3559	3524	3485	3440	3387	3318	0
Line amps A	9	10.9	14.3	18.6	23.6	29.6	36.8	27.2
Power W	518	1525	2553	3631	4761	5974	7300	0
Torque lb-ft	0	1.9	3.8	5.7	7.6	9.5	11.4	0

Documents & CAD

For this product 3

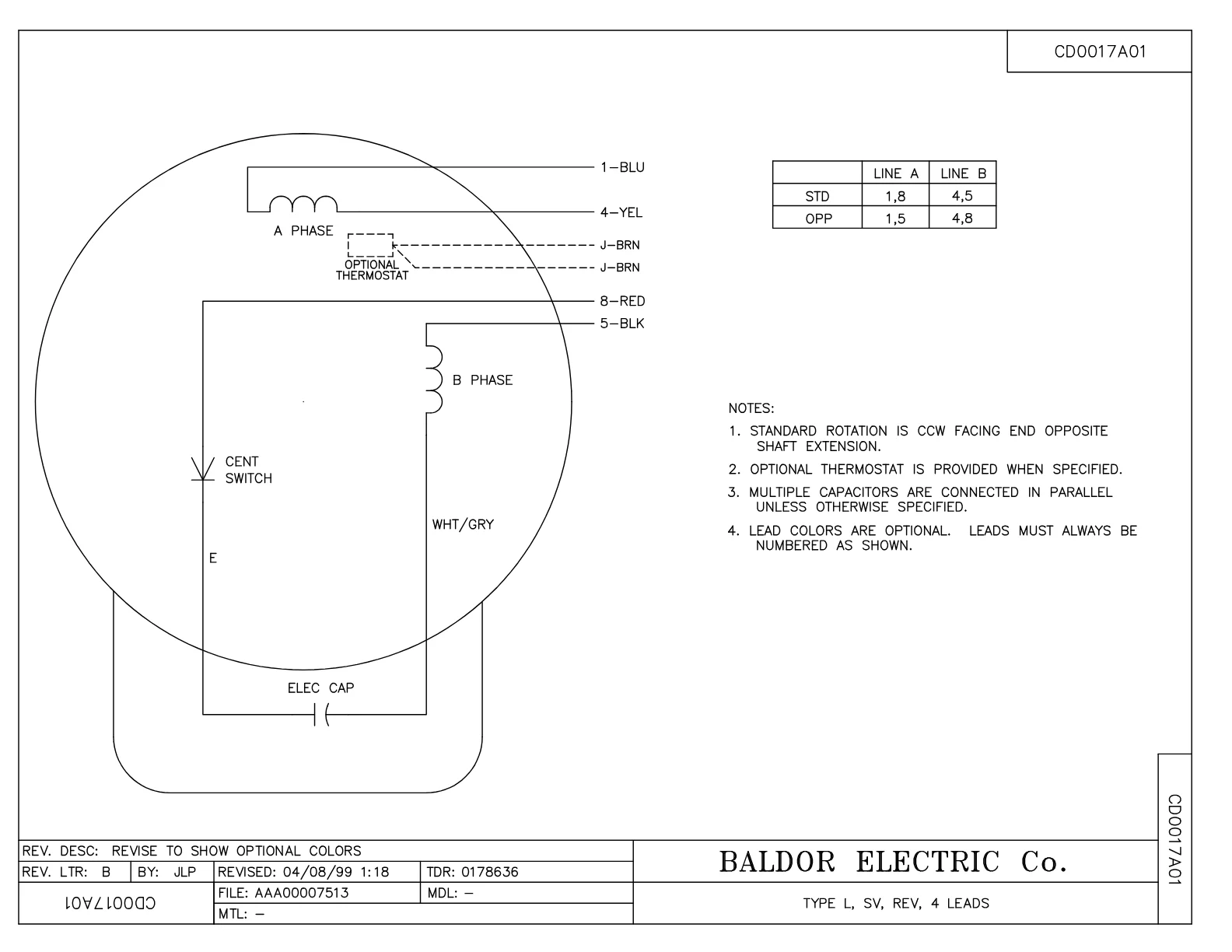

Wiring DiagramWiring DiagramPDF·35 KB·English

DatasheetDatasheetPDF·582 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·102 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor WCL1409T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
