Baldor VZDNM3554T

Baldor-Reliance VZDNM3554T is a 1.5 HP, 1760 rpm, 3-phase 230/460 V 60 Hz, 145TC frame, TENV (totally enclosed non-ventilated) general purpose three-phase AC electric motor.

BaldorMFR # VZDNM3554TSKU # YLSVMB49ZFGVFCK

EnclosureTENV

Frame145TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance VZDNM3554T is a 1.5 HP, 1760 rpm, 3-phase 230/460 V 60 Hz, 145TC frame, TENV (totally enclosed non-ventilated) general purpose three-phase AC electric motor.

Baldor VZDNM3554T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame145TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.500 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsNEMA PREMIUM (OLD LOGO) · UR · NEMA PREMIUM · CSA EEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage2.360 A @ 460.0 V · 4.720 A @ 230.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load86.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)2.4 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter codeInverter Duty

KVA codeS

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)2700 rpm

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 18 AWG

Motor type3538M

Mounting arrangementF1

Number of poles4

Overall length17.15 IN

Power factor69

Product familyGeneral Purpose

Pulley end bearing typeSealed Bearing

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS NON-COMPLIANT

Service factor1.00

Shaft diameter0.875 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1760 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568677247

Nameplate

Catalog numberVZDNM3554T

Specification number35E6717K587Z1

Frame size145TC

Horsepower (HP)1.5 TE

Voltage (V)230/460 ENCL TENV

Magnetizing current (A)3.4/1.7

Full load current (A)4.72/2.36

Speed (rpm)1760

Maximum speed (rpm)2700

Frequency (Hz)60

Phase3

Insulation classH

Service factor1.00

SL HZ1.33

NEMA nominal efficiency (%)86.5

Inertia (WK²)0.274

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

CC number010A

Nameplate numberNP3943L

Performance

General characteristics· 460 V, 60 Hz, 1.5 hp

Line-to-line resistance at 25 °C (ohms)7.3 Ω

Temperature rise at rated load (°C)98° C

Start configurationDOL

Breakdown torque32.3 lb-ft

Pull-up torque19.1 lb-ft

Locked-rotor torque24.4 lb-ft

Starting current (A)32.3 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	7	27	45	59	69	76	81
Efficiency %	0	73.7	83.3	85.9	86.7	86.4	85.5
Speed rpm	1799	1789	1780	1771	1762	1751	1740
Line amps A	1.7	1.74	1.88	2.09	2.36	2.69	3.06
Power W	93	376	673	979	1292	1619	1962
Torque lb-ft	0	1.09	2.22	3.35	4.48	5.62	6.79

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

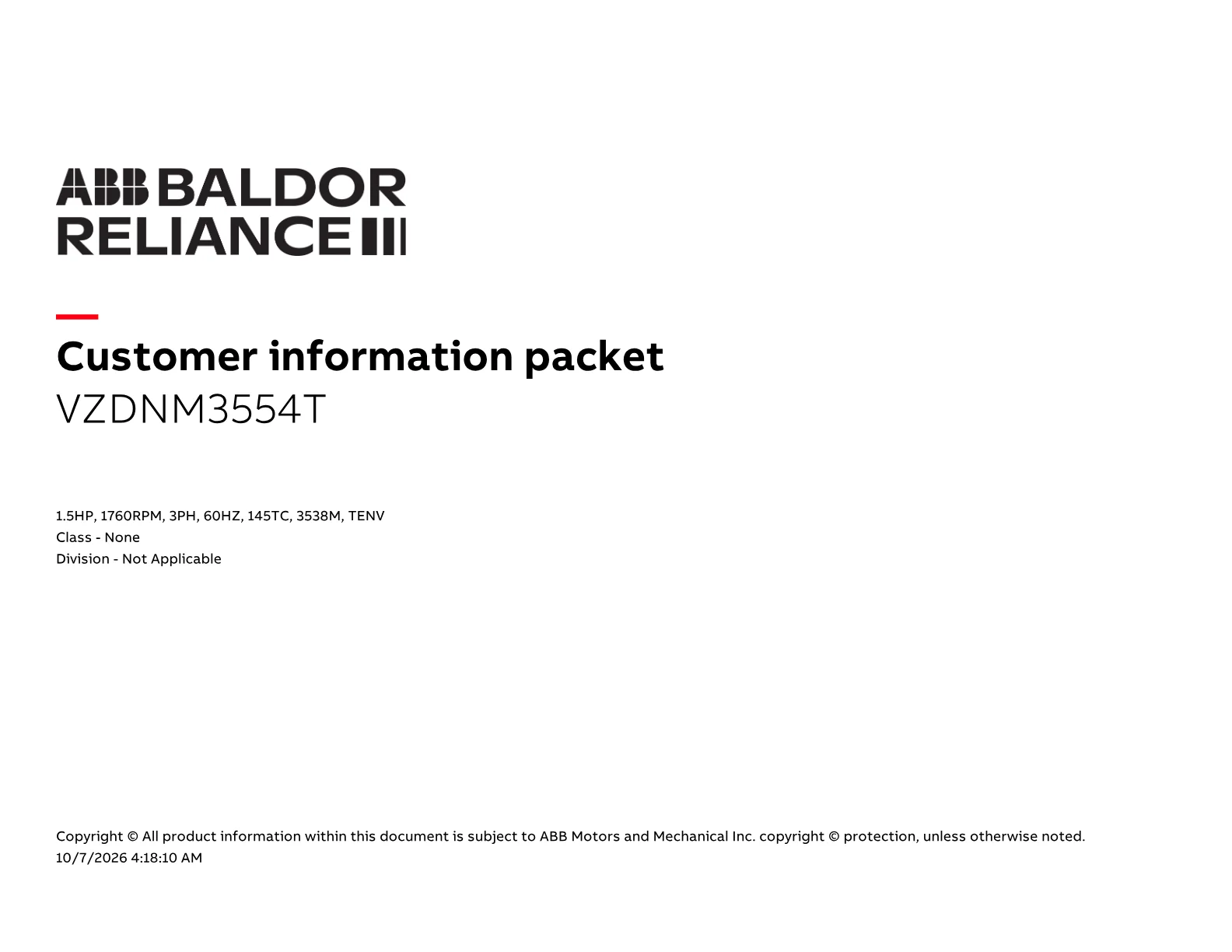

DatasheetDatasheetPDF·598 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·114 KB·English

CAD Files 5

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor VZDNM3554T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
HW4600B39SP	V-RING SLINGER 0.550 X 0.790 X .18 VITON	1 pcs	142 motors
HW4600B32SP	V-RING SLINGER 1.000 X 1.540 X .24 VITON	1 pcs	262 motors
OE5011A05SP	HS25 ENCODER ASSY - TENV	1 pcs	47 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
