Baldor VXT30156T-5

Baldor-Reliance VXT30156T-5 is a 1.5 HP, 1170 rpm, 3-phase 575 V 60 Hz, 182TC frame, TEFC (totally enclosed fan-cooled) general purpose three-phase AC electric motor.

BaldorMFR # VXT30156T-5SKU # YLSW5XMJLNXKCJ

EnclosureTEFC

Frame182TC

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance VXT30156T-5 is a 1.5 HP, 1170 rpm, 3-phase 575 V 60 Hz, 182TC frame, TEFC (totally enclosed fan-cooled) general purpose three-phase AC electric motor.

Baldor VXT30156T-5

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame182TC

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.500 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency575.0 V @ 60 HZ

Hazardous area class and groupCLI GP A,B,C,D

Hazardous area divisionDivision II

Agency approvalsCCSA US · CSA EEV · NEMA_PREMIUM · UR

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Constant torque speed range3

Current at voltage2.000 A @ 575.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load87.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)2.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Duty

IP ratingNONE

KVA codeK

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead terminationFlying Leads

Motor type0630M

Mounting arrangementF1

Number of poles6

Overall length15.98 IN

Power factor65

Product familyGeneral Purpose

Pulley face codeC-Face

Rodent screenNone

Service factor1.15

Shaft diameter1.125 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)1170 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

Hazardous area temperature codeT3C

UPC781568981924

Nameplate

Catalog numberVXT30156T-5

Ingress protection (IP)54

Specification number06-0000-0940

EnclosureTEFC

Frame size182TC

Horsepower (HP)1.5

Temperature codeT3C

Voltage (V)575

Power factor65

Full load current (A)2

Rating40C AMB-CONT

Speed (rpm)1170

Frequency (Hz)60

Phase3

Insulation classF

Service factor1.15

NEMA design letterB

SL HZ1.5

NEMA nominal efficiency (%)87.5

Inertia (WK²)0.282

Drive end bearing6206

Opposite drive end bearing6205

Magnetizing current (A)1.3

Inverter typePWM

Constant horsepower60

TO90

Inverter temperature codeT3C

Constant torque3

TO60

Variable torque3

TO60

CC number010A

Nameplate numberNP4224L

Performance

General characteristics· 575 V, 60 Hz, 1.5 hp

Line-to-line resistance at 25 °C (ohms)11.1 Ω

Temperature rise at rated load (°C)26° C

Temperature rise at service factor load (°C)31° C

Start configurationDOL

Breakdown torque23.8 lb-ft

Pull-up torque12.4 lb-ft

Locked-rotor torque15.7 lb-ft

Starting current (A)12.9 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	6	27	45	56	65	70	73	68
Efficiency %	0	76.2	84.8	86.9	87.5	87.1	85.8	87.3
Speed rpm	1199	1194	1187	1179	1172	1163	1153	1167
Line amps A	1.29	1.35	1.51	1.74	2	2.33	2.7	2.2
Power W	79.5	367	670	973	1287	1614	1966	1483
Torque lb-ft	0	1.65	3.37	5.05	6.77	8.51	10.3	7.81

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·38 KB·English

DatasheetDatasheetPDF·602 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

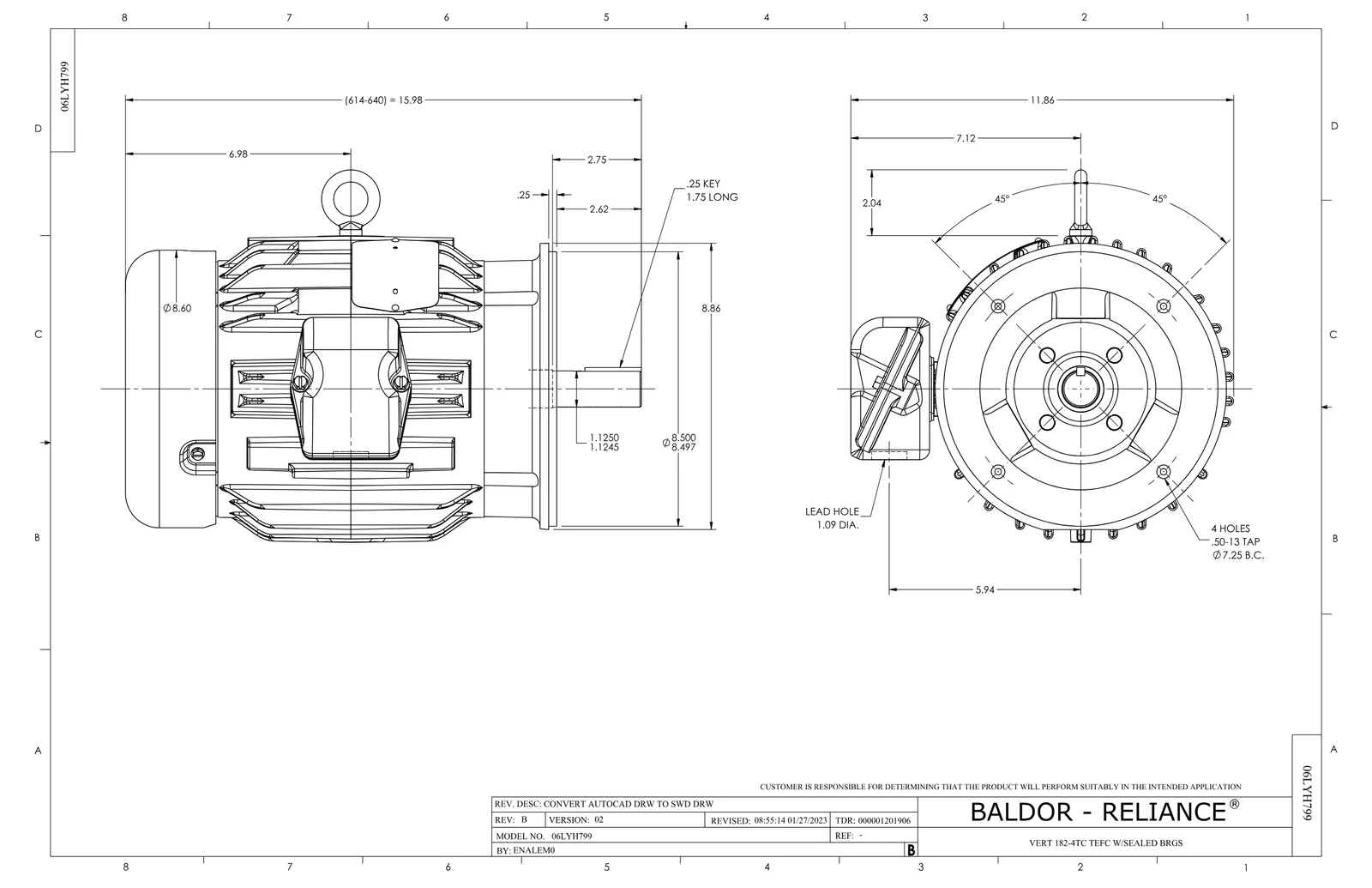

Dimension DrawingDimension SheetPDF·120 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 8

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor VXT30156T-5 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
36FN3000C01SP	EXFN, PLASTIC, 5.25 OD, .912 ID	1 pcs	334 motors
HW4600B32SP	V-RING SLINGER 1.000 X 1.540 X .24 VITON	1 pcs	262 motors
HW4600B36SP	V-RING SLINGER 1.188 X 1.380 X .24 VITON	1 pcs	252 motors
51XW2520A12	SCREW, HEX SER SLT HD, ZN, 1/4-20 X .75	4 pcs	1,543 motors
