Baldor VXT3012T-5

Baldor-Reliance VXT3012T-5 is a 1 HP, 3450 rpm, 3-phase 575 V 60 Hz, 143TC frame, TEFC (totally enclosed fan-cooled) general purpose three-phase AC electric motor.

BaldorMFR # VXT3012T-5SKU # YLSYSPUZL0ZDFW

EnclosureTEFC

Frame143TC

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance VXT3012T-5 is a 1 HP, 3450 rpm, 3-phase 575 V 60 Hz, 143TC frame, TEFC (totally enclosed fan-cooled) general purpose three-phase AC electric motor.

Baldor VXT3012T-5

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame143TC

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency575.0 V @ 60 HZ

Hazardous area class and groupCLI GP A,B,C,D

Hazardous area divisionDivision II

Agency approvalsCCSA US · CSA EEV · NEMA_PREMIUM · UR

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Constant torque speed range6

Current at voltage1.100 A @ 575.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load84.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)1.1 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Duty

IP ratingNONE

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead terminationFlying Leads

Motor type0516M

Mounting arrangementF1

Number of poles2

Overall length12.54 IN

Power factor82

Product familyGeneral Purpose

Pulley face codeC-Face

Rodent screenNone

Service factor1.15

Shaft diameter0.875 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

Hazardous area temperature codeT4

UPC781568981894

Nameplate

Catalog numberVXT3012T-5

Ingress protection (IP)54

Specification number05-0000-0993

EnclosureTEFC

Frame size143TC

Horsepower (HP)1

Temperature codeT4

Voltage (V)575

Power factor82

Full load current (A)1.1

Rating40C AMB-CONT

Speed (rpm)3450

Frequency (Hz)60

Phase3

Insulation classF

Service factor1.15

NEMA design letterB

SL HZ2

NEMA nominal efficiency (%)84

Inertia (WK²)0.05

Drive end bearing6205

Opposite drive end bearing6203

Magnetizing current (A).55

Inverter typePWM

Constant horsepower60

TO90

Inverter temperature codeT4

Constant torque6

TO60

Variable torque6

TO60

CC number010A

Nameplate numberNP4224L

Performance

General characteristics· 575 V, 60 Hz, 1 hp

Line-to-line resistance at 25 °C (ohms)24.1 Ω

Start configurationDOL

Breakdown torque6.5 lb-ft

Pull-up torque4.8 lb-ft

Locked-rotor torque5.7 lb-ft

Starting current (A)9.7 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	13	45	65	77	83	87	87	85
Efficiency %	0	70.4	80.6	84	84.6	84.7	83.7	84.7
Speed rpm	3593	3567	3539	3510	3479	3446	3410	3459
Line amps A	0.54	0.6	0.72	0.87	1.06	1.25	1.5	1.17
Power W	70	270	468	671	876	1087	1302	1003
Torque lb-ft	0	0.375	0.75	1.13	1.5	1.88	2.25	1.73

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·38 KB·English

DatasheetDatasheetPDF·635 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

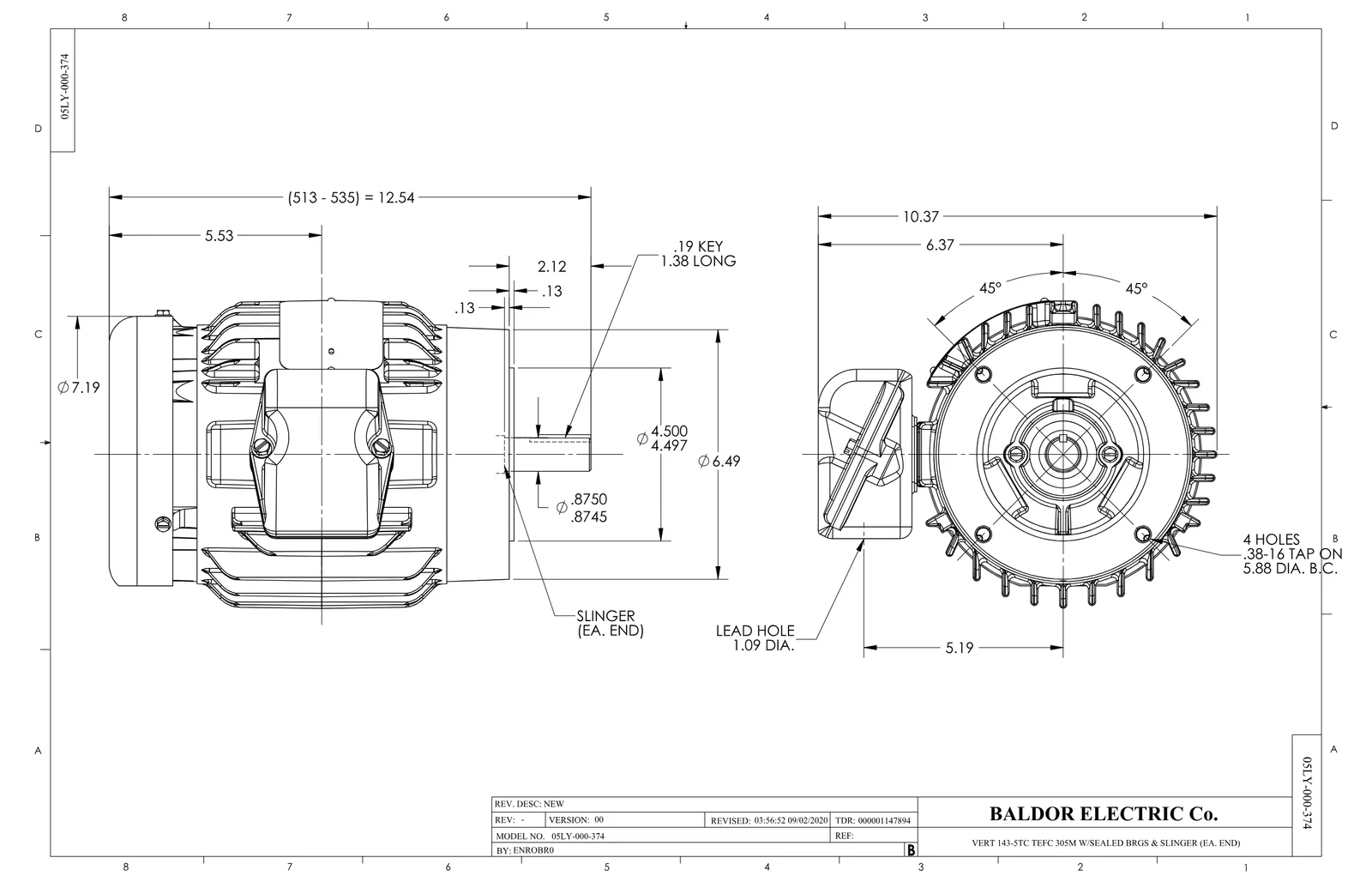

Dimension DrawingDimension SheetPDF·156 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 8

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor VXT3012T-5 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
34FN3002B01	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	623 motors
HW4600B39SP	V-RING SLINGER 0.550 X 0.790 X .18 VITON	1 pcs	142 motors
HW4600B32SP	V-RING SLINGER 1.000 X 1.540 X .24 VITON	1 pcs	262 motors
51XW2520A12	SCREW, HEX SER SLT HD, ZN, 1/4-20 X .75	4 pcs	1,543 motors
