How can I get a price quote for Baldor VXM050742A?

You can request a fast quote for Baldor VXM050742A from Yılsa Engineering. Reference part number YLSEH6N6U49TNPJ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor VXM050742A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor VXM050742A genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor VXM050742A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor VXM050742A

VXM050742A

BaldorMFR # VXM050742ASKU # YLSEH6N6U49TNPJ

EnclosureTEFC

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.750 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor VXM050742A (VXM050742A) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor VXM050742A — price, stock availability and technical specifications.

Baldor VXM050742A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.750 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 208.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupCLI GP D; CLII GP F,G

Hazardous area divisionDivision I

Agency approvalsCSA · UL

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage3.200 A @ 208.0 V · 3.000 A @ 230.0 V · 1.500 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load73.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)1.5 a

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

IP ratingNONE

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead terminationFlying Leads

Motor type3420M

Mounting arrangementF1

Number of poles4

Overall length14.22 IN

Power factor58

Product familyHazardous Location Motor

Pulley face codeC-Face

Rodent screenNone

Service factor1.00

Shaft diameter0.625 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationEP

Winding thermal 2None

Hazardous area temperature codeT3C

UPC781568957547

Product TypeExplosion Proof (Hazardous Location) Motors

Nameplate

Specification number34-0000-0388

Catalog numberVXM050742A

Horsepower (HP).75

Temperature codeT3C

Voltage (V)208-230/460

Current (A)3.2-3/1.5

Speed (rpm)1725 34WG5721

Frequency (Hz)60

Phase3

Insulation classB

Service factor1.00

NEMA design letterB

Code letter (locked rotor kVA)K

Rating40C AMB-CONT

Frame size56C

NEMA nominal efficiency (%)73

Power factor58

Nameplate numberNP0016XPSL

Performance

General characteristics· 460 V, 60 Hz, 0.75 hp

Line-to-line resistance at 25 °C (ohms)17.7 Ω

Temperature rise at rated load (°C)74° C

Start configurationDOL

Breakdown torque10 lb-ft

Pull-up torque8.5 lb-ft

Locked-rotor torque8.8 lb-ft

Starting current (A)10 A

Line-to-line resistance at 25 °C (ohms)4.425 Ω

Temperature rise at rated load (°C)63° C

Start configurationDOL

Breakdown torque8.04 lb-ft

Pull-up torque6.66 lb-ft

Locked-rotor torque6.89 lb-ft

Starting current (A)17.58 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	12	28	42	55	64	71	76
Efficiency %	0	56.1	69.7	74.7	76.2	76.1	75.2
Speed rpm	1798	1783	1766	1749	1731	1711	1693
Line amps A	1.2	1.2	1.2	1.3	1.5	1.6	1.8
Power W	115	254	405	561	726	898	1079
Torque lb-ft	0	0.5625	1.125	1.6875	2.25	2.8125	3.375

Documents & CAD

For this product 4

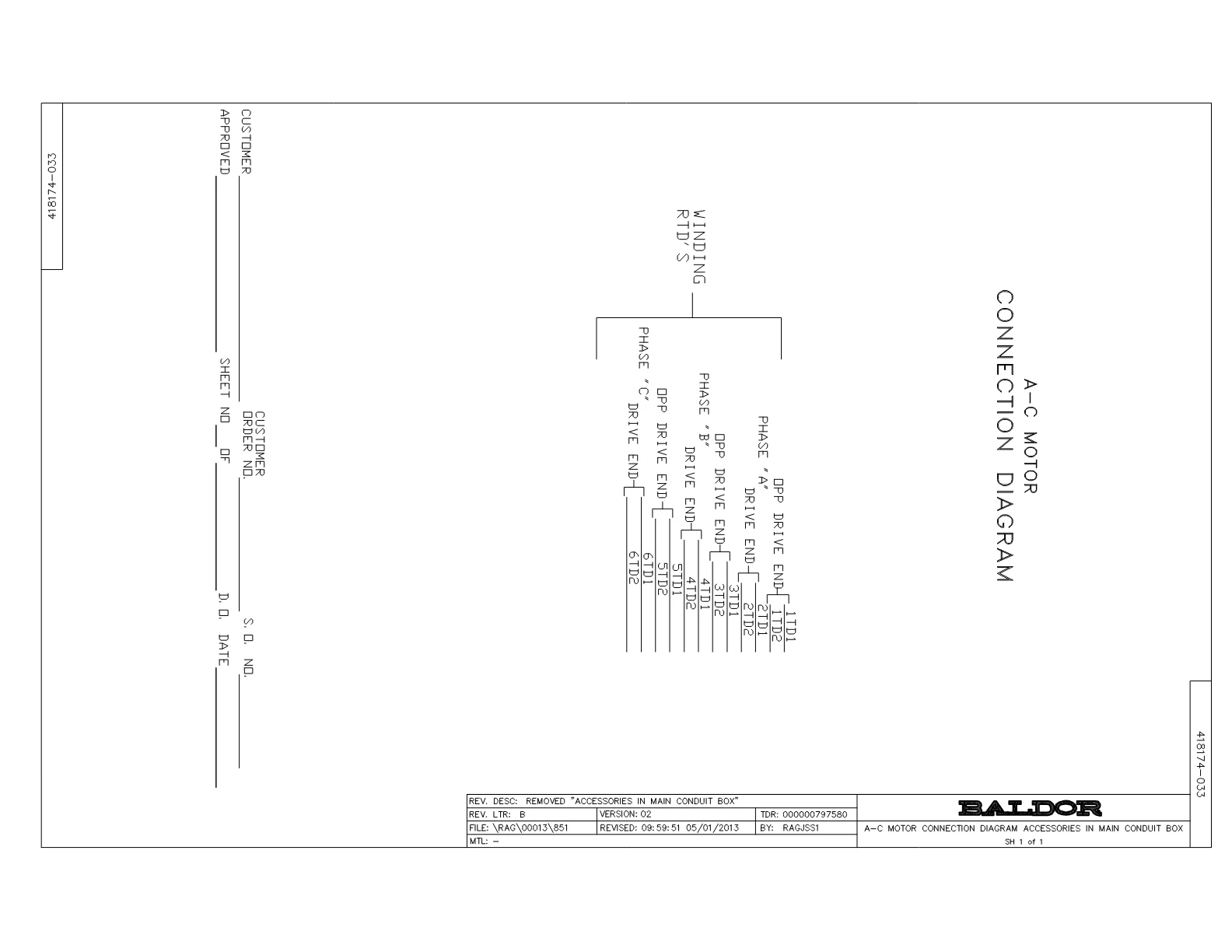

Wiring DiagramWiring DiagramPDF·26 KB·English

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·692 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·104 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor VXM050742A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
34FH4002A01SP	IEC FH NO GREASER PRIMED	1 pcs	210 motors
34FN3002A01SP	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	410 motors
34EP3705A01SP	PU ENDPLATE, MACH	1 pcs	31 motors
35CB3001A01SP	EXPL CONDUIT BOX, MACH, 1/2" PIPE TAP LE	1 pcs	103 motors
35CB3500A01SP	CONDUIT BOX LID, MACH	1 pcs	203 motors
