How can I get a price quote for Baldor VXL051522?

You can request a fast quote for Baldor VXL051522 from Yılsa Engineering. Reference part number YLSTATEA3ELAFIA. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor VXL051522 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor VXL051522 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor VXL051522?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor VXL051522

VXL051522

BaldorMFR # VXL051522SKU # YLSTATEA3ELAFIA

EnclosureTEFC

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor VXL051522 (VXL051522) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor VXL051522 — price, stock availability and technical specifications.

Baldor VXL051522

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 208.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupCLI GP D; CLII GP F,G

Hazardous area divisionDivision I

Agency approvalsUL · CSA

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage16.000 A @ 115.0 V · 8.000 A @ 230.0 V · 8.500 A @ 208.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load70.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)8.0 a

Heater indicatorNo Heater

Insulation classF

IP ratingNONE

KVA codeJ

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead terminationFlying Leads

Motor type3530L

Mounting arrangementF1

Number of poles2

Overall length16.03 IN

Power factor82

Product familyGeneral Purpose

Pulley face codeC-Face

Rodent screenNone

Service factor1.15

Shaft diameter0.625 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

Hazardous area temperature codeT3C

UPC781568972823

Product TypeExplosion Proof (Hazardous Location) Motors

Nameplate

Specification number35-0000-1105

Catalog numberVXL051522

Horsepower (HP)1.5

Temperature codeT3C

Voltage (V)115/208-230

Current (A)16/8.5-8

Speed (rpm)3450

Frequency (Hz)60

Phase1

Insulation classF

Service factor1.15

NEMA design letterL

Code letter (locked rotor kVA)J

Rating40C AMB-CONT

Frame size56C

NEMA nominal efficiency (%)70

Power factor82

Nameplate numberNP1426XPSL

Performance

General characteristics· 115 V, 60 Hz, 1.5 hp

Line-to-line resistance at 25 °C (ohms)1.3569 Ω / 1.2102 Ohms B Ph

Temperature rise at rated load (°C)72° C

Breakdown torque6.56 lb-ft

Pull-up torque4.82 lb-ft

Locked-rotor torque7.25 lb-ft

Starting current (A)104 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	27	51	66	76	83	85	87
Efficiency %	0	50.7	64.9	70.6	71.5	71.8	70.8
Speed rpm	3596	3572.2	3550.8	3527.2	3478	3472	3437.1
Line amps A	8.68	9.61	11.5	13.9	16.38	20.2	23.7
Power W	269	559	884	1219	1576	1966	2354
Torque lb-ft	0	0.5586	1.138	1.719	2.282	2.863	3.415

Documents & CAD

For this product 4

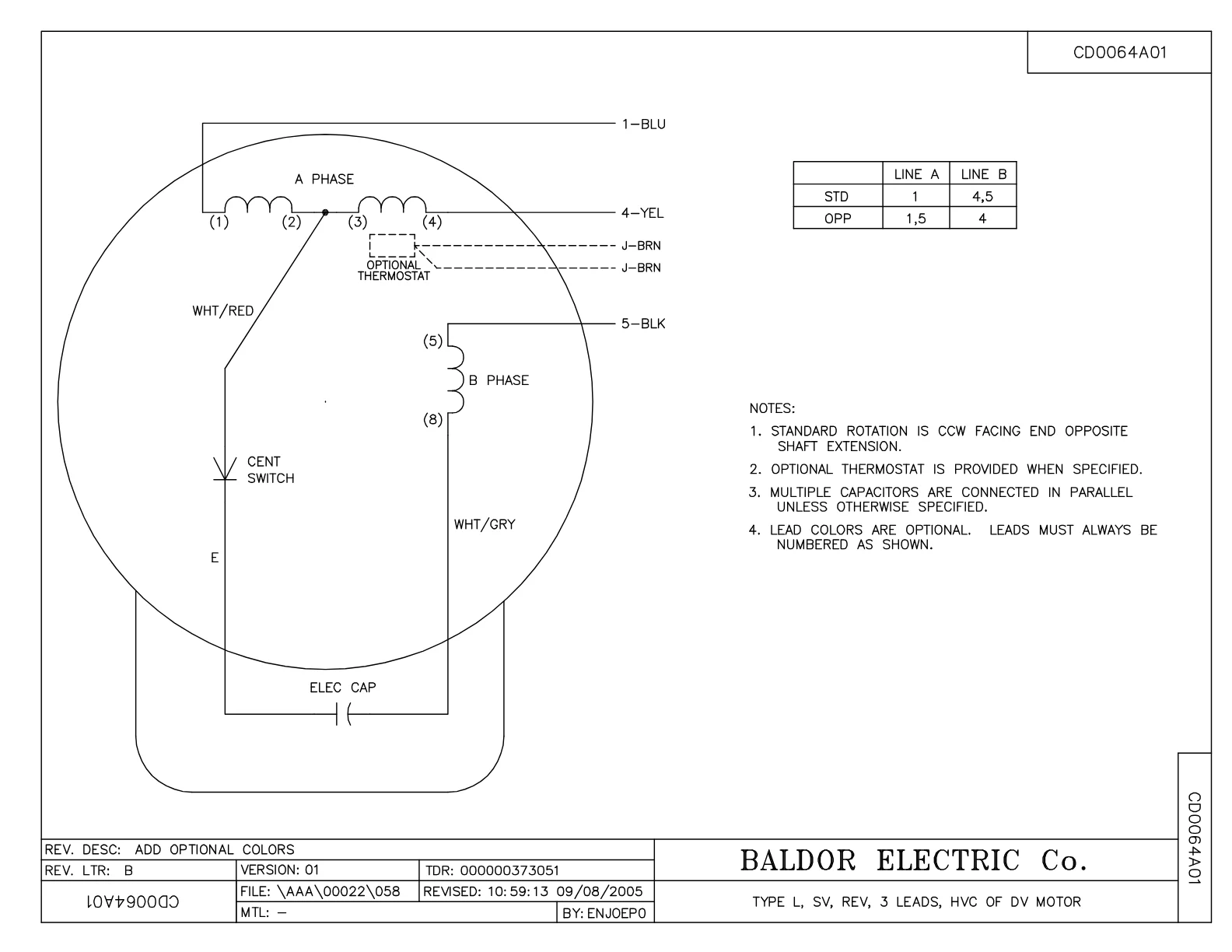

Wiring DiagramWiring DiagramPDF·33 KB·English

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·648 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·133 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 8

The genuine spare parts used for servicing and repairing the Baldor VXL051522 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
35FH4005A01SP	IEC FH NO GREASER W/PRIMED	1 pcs	134 motors
34FN3002A01SP	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	410 motors
35EP3702A01SP	PU EP-205 BRG-35X-56C-143-5TC	1 pcs	56 motors
35EP3700A01SP	FR ENDPLATE, XPFC	1 pcs	90 motors
35CB3001A01SP	EXPL CONDUIT BOX, MACH, 1/2" PIPE TAP LE	1 pcs	103 motors
35CB3500A01SP	CONDUIT BOX LID, MACH	1 pcs	203 motors
