How can I get a price quote for Baldor VWDL3514?

You can request a fast quote for Baldor VWDL3514 from Yılsa Engineering. Reference part number YLSQS1GKS3UMO2E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor VWDL3514 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor VWDL3514 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor VWDL3514?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor VWDL3514

General Purpose Washdown Duty Motor (Painted) - 1-1/2 hp, 1800 rpm, 1 ph, 115/230 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, C-Face / Footless Mount

BaldorMFR # VWDL3514SKU # YLSQS1GKS3UMO2E

EnclosureTEFC

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency1.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Washdown Duty Motor (Painted) - 1-1/2 hp, 1800 rpm, 1 ph, 115/230 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, C-Face / Footless Mount

Features and Benefits

300 Series stainless steel hardware
Moisture sealant on bolt heads, between frame and endplates
Neoprene gaskets
Double sealed bearings
Forsheda® running contact v-ring slinger
Stainless steel shaft
Electrostatically applied epoxy finish
Class F insulation
Tropicalized
Standard efficiency
Applications: Food processing and other applications where motor is regularly exposed to high pressure wash down

Baldor VWDL3514

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency1.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage12.200 A @ 115.0 V · 6.100 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load80.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)6.1 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeH

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3532LC

Mounting arrangementF1

Number of poles4

Overall length14.10 IN

Power factor98

Product familyWash Down

Pulley end bearing typeSealed Bearing

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568155066

Motor CategoryGeneral Purpose Motor (Painted)

Motor Supply Voltage115/230 V

Base RPM1725 rpm

Warranty2 Year Warranty

Type Of BearingBall

IP Rating55

Harmonization Code8501.40.6040

Weight50 lbs

ApplicationsSingle phase food processing applications where motors receive washdown on a regular basis.

Additional Details300 series stainless steel hardware, moisture sealant on bolt heads, between frame and endplates. Neoprene gaskets. Double sealed ball bearings. Lip and V-Ring seal on drive end. Stainless steel shaft extension. Electrostatically applied epoxy finish over autophoretic primer. Class F insulation.

Mounting TypeC-Face / Footless

Product TypeWashdown Duty Motors

Nameplate

Catalog numberVWDL3514

Specification number35S582G242

Horsepower (HP)1.5

Voltage (V)115/230

Current (A)12.2/6.1

Speed (rpm)1725

Frame size56C

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)H

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)80

Power factor98

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1496L

Performance

General characteristics· 115 V, 60 Hz, 1.5 hp

Line-to-line resistance at 25 °C (ohms)0.517 Ω / 1.32 Ohms B Ph

Temperature rise at rated load (°C)61° C

Temperature rise at service factor load (°C)76° C

Start configurationDOL

Breakdown torque9.9 lb-ft

Pull-up torque8.1 lb-ft

Locked-rotor torque13 lb-ft

Starting current (A)88 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	66	94	98	98	98	97	96	97
Efficiency %	0	71.4	82.4	84	82.2	77.7	70.5	79.5
Speed rpm	1798	1782	1765	1746	1723	1690	1642	1703
Line amps A	1.68	3.54	6.02	8.84	12.06	16.08	21.4	14.5
Power W	127	384	675	997	1358	1797	2371	1621
Torque lb-ft	0	1.08	2.22	3.38	4.57	5.82	7.17	5.32

Documents & CAD

For this product 4

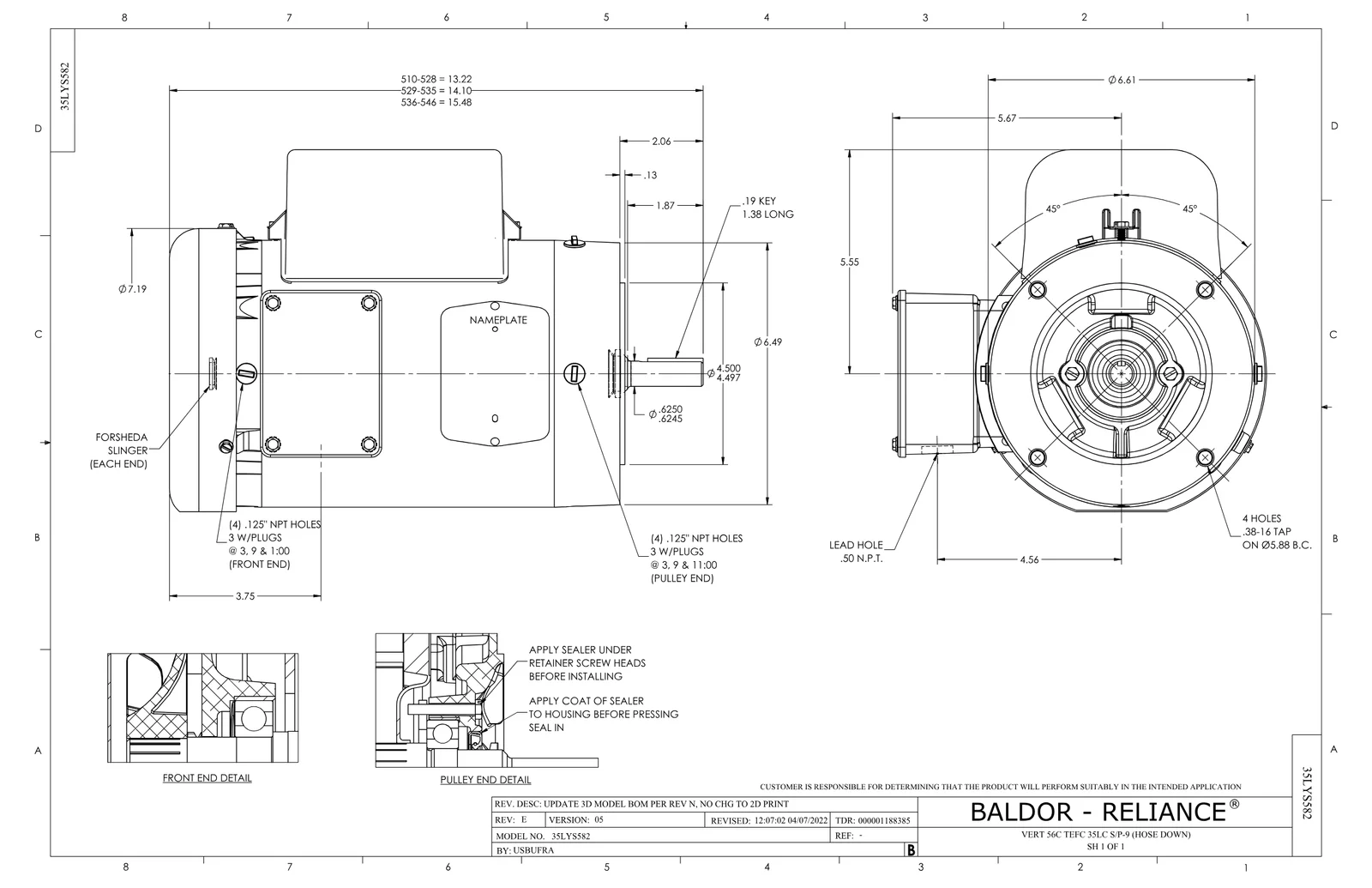

Dimension DrawingDimension SheetPDF·119 KB·English

Wiring DiagramWiring DiagramPDF·40 KB·English

DatasheetDatasheetPDF·603 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor VWDL3514 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3050F09SP	CAPACITOR 50 MFD 370 VAC	1 pcs	69 motors
EC1540A06SP	ELEC CAP, 540-648 MFD, 125V, 2.06D X 4.	1 pcs	53 motors
HW4600B39SP	V-RING SLINGER 0.550 X 0.790 X .18 VITON	1 pcs	142 motors
HW4600B32SP	V-RING SLINGER 1.000 X 1.540 X .24 VITON	1 pcs	262 motors
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1 pcs	436 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
