How can I get a price quote for Baldor VPECP4314T?

You can request a fast quote for Baldor VPECP4314T from Yılsa Engineering. Reference part number YLSQWBAX0TBQS9I. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor VPECP4314T in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor VPECP4314T genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor VPECP4314T?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor VPECP4314T

Vertical P-Base Motor - 60 hp, 1800 rpm, 3 ph, 230/460 V, 364VP Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1780 rpm Base, P-Base Mount, Continuous Duty

BaldorMFR # VPECP4314TSKU # YLSQWBAX0TBQS9I

EnclosureTEFC

Frame364VP

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency60.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Vertical P-Base Motor - 60 hp, 1800 rpm, 3 ph, 230/460 V, 364VP Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1780 rpm Base, P-Base Mount, Continuous Duty

Baldor VPECP4314T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame364VP

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency60.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionDivision II

Agency approvalsNEMA_PREMIUM · UR · CURUSEEV · CCSAUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

Constant torque speed range10-60

Current at voltage140.000 A @ 230.0 V · 152.000 A @ 208.0 V · 70.000 A @ 460.0 V

Design codeB

Drip coverDrip Cover

Duty ratingCONT

Efficiency at 100% load95.0 %

Enclosure modificationSevere Duty Features

Feedback deviceNO FEEDBACK

High voltage full load current (A)70.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

IP ratingNONE

KVA codeG

Lifting lugsVertical Lifting Lugs

Maximum speed (rpm)2700 rpm

Motor lead quantity/wire size3 @ 4 AWG

Motor typeA3658M

Mounting arrangementV1

Number of poles4

Overall length37.25 IN

Power factor84

Product familyGeneral Industrial

Pulley end bearing typeBall

Pulley face codeP-Base

Service factor1.15

Shaft diameter1.625 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1780 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Hazardous area temperature codeT3

UPC781568811313

Motor CategoryVertical P-Base Motor

Motor Supply Voltage230/460 V

Base RPM1780 rpm

Weight910 lbs

Mounting TypeP-Base

Product TypePump Motors

Nameplate

Catalog numberVPECP4314T

CC number010A

Specification numberA36-6173-4075

Rating40C AMB-CONT

Phase3

Insulation classF

Maximum speed (rpm)2700

Maximum correction (kVAR)15

Drive end bearing6313

Opposite drive end bearing7310

EnclosureTEFC

Frame size364VP

Ingress protection (IP)55

GreasePOLYREX EM

Motor weight910

Temperature code200

Constant torque15-60

Variable torque3-60

Constant horsepower60-90

Inverter temperature class200

Usable at (V)50HZ 50HP 190/380V 138/69A

Nameplate numberNP4033LUA

Documents & CAD

For this product 3

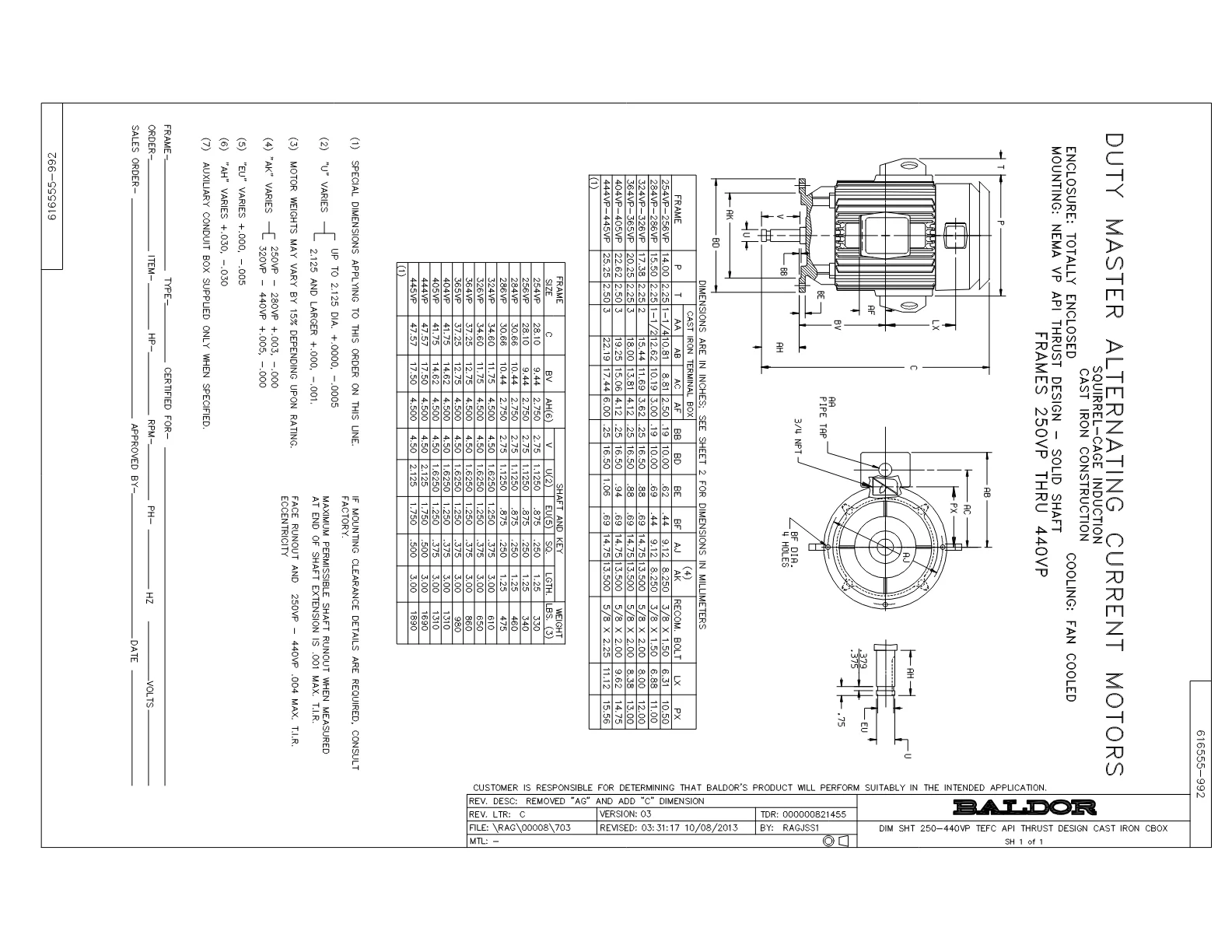

Dimension DrawingDimension SheetPDF·136 KB·English

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·623 KB·English

Series documents 3· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

Performance CurvePerformance CurvePDF·77 KB·English

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor VPECP4314T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
000692000VD	LABEL WARNING	1 pcs	544 motors
034017014AB	LCKW 3/8 STD. PLATED	14 pcs	376 motors
076709000A	C/B Cover - 360	1 pcs	179 motors
067053000B	GASK 320-400	1 pcs	179 motors
