Baldor VPECP4310T

Vertical P-Base Motor - 60 hp, 3600 rpm, 3 ph, 230/460 V, 364VP Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3560 rpm Base, P-Base Mount, Continuous Duty

BaldorMFR # VPECP4310TSKU # YLS4DOOT6R2YYY6

EnclosureTEFC

Frame364VP

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency60.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Vertical P-Base Motor - 60 hp, 3600 rpm, 3 ph, 230/460 V, 364VP Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3560 rpm Base, P-Base Mount, Continuous Duty

Baldor VPECP4310T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame364VP

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency60.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · CCSAUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

Constant torque speed range6-60

Current at voltage130.200 A @ 230.0 V · 65.100 A @ 460.0 V

Design codeB

Drip coverDrip Cover

Duty ratingCONT

Efficiency at 100% load95.0 %

Enclosure modificationSevere Duty Features

Feedback deviceNO FEEDBACK

High voltage full load current (A)65.1 a

Heater indicatorNo Heater

Insulation classB

Inverter codeInverter Ready

IP ratingNONE

KVA codeG

Lifting lugsStandard Lifting Lugs

Motor lead quantity/wire size3 @ 4 AWG

Motor typeA36056M

Mounting arrangementV1

Number of poles2

Overall length37.25 IN

Power factor91

Product familyGeneral Industrial

Pulley end bearing typeBall

Pulley face codeP-Base

Service factor1.15

Shaft diameter1.625 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)3560 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Hazardous area temperature codeT3

UPC781568811290

Motor CategoryVertical P-Base Motor

Motor Supply Voltage230/460 V

Base RPM3560 rpm

Weight999 lbs

Mounting TypeP-Base

Product TypePump Motors

Nameplate

Nameplate numberNP2496L

Documents & CAD

For this product 3

Dimension DrawingDimension SheetPDF·136 KB·English

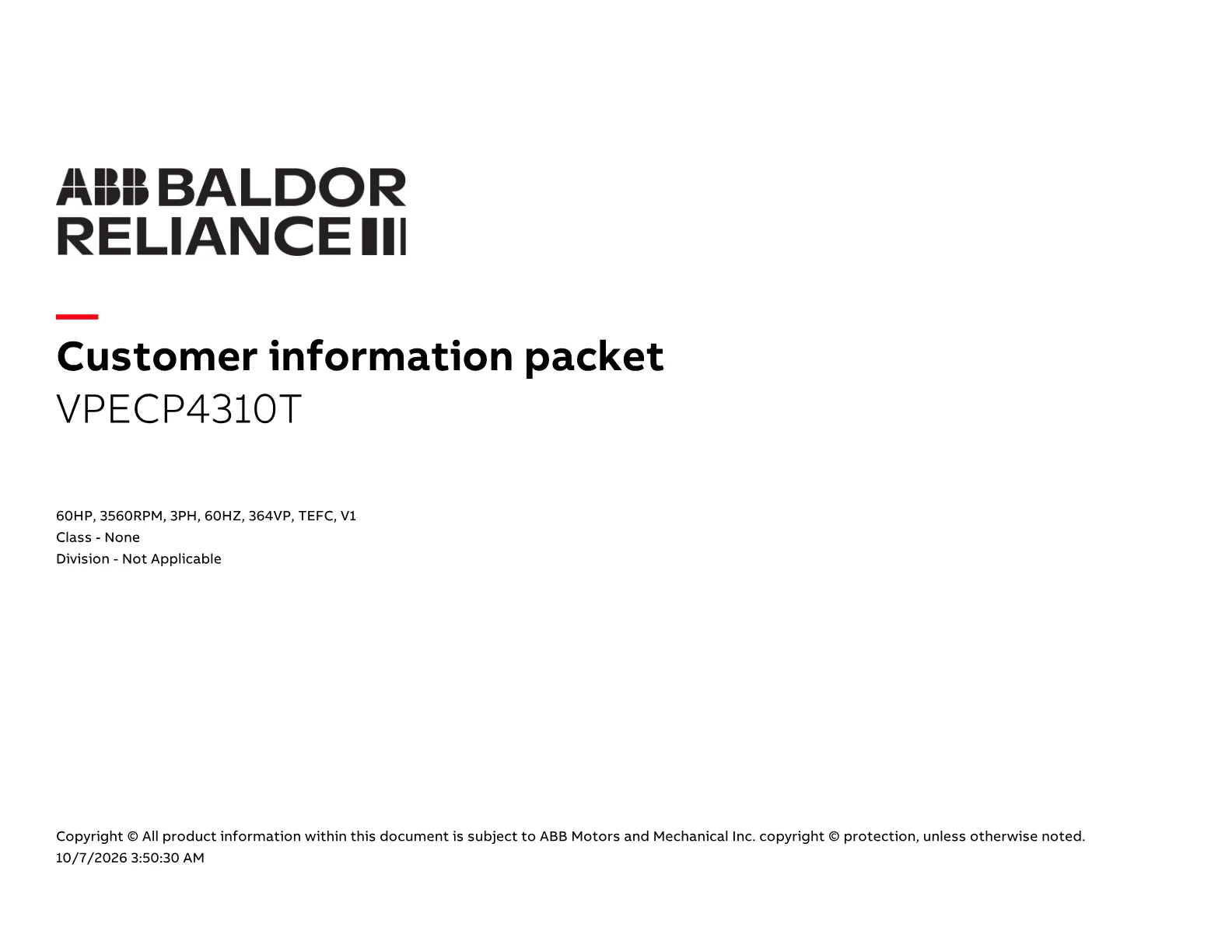

DatasheetDatasheetPDF·634 KB·English

Performance CurvePerformance CurvePDF·115 KB·English

Series documents 3· shared by this product series

Wiring DiagramWiring DiagramPDF·28 KB·English

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor VPECP4310T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
000692000VD	LABEL WARNING	1 pcs	544 motors
702674001A	FAN 250	1 pcs	1 motors
034017014AB	LCKW 3/8 STD. PLATED	14 pcs	376 motors
076709000A	C/B Cover - 360	1 pcs	179 motors
067053000B	GASK 320-400	1 pcs	179 motors
