Baldor VP3603D

DC Electric Motor - Permanent Magnet, Brushed, 180 V, 1750 rpm rpm, TEFC (Totally Enclosed Fan Cooled), D112D Frame

BaldorMFR # VP3603DSKU # YLSA6GBTY03NA46

Armature voltage (V)180 V

Base speed (rpm)1750 rpm

EnclosureTEFC

FrameD112D

Frame materialSteel

Output power3.000 HP

Have questions?Chat on WhatsApp

About This Product

DC Electric Motor - Permanent Magnet, Brushed, 180 V, 1750 rpm rpm, TEFC (Totally Enclosed Fan Cooled), D112D Frame

Baldor VP3603D

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Armature voltage (V)180 V

Base speed (rpm)1750 rpm

EnclosureTEFC

FrameD112D

Frame materialSteel

Output power3.000 HP

Hazardous area class and groupNone

Agency approvalsCE · CSA · UKCA · UR · WEEE

Ambient temperature (°C)40 °C

Armature current (A)14.0 a

Armature inertia107.110 lb-ft2

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Drip coverNo Drip Cover

Duty ratingCONT

Feedback deviceNO FEEDBACK

Frame prefixD

Heater indicatorNo Heater

Insulation classF

Lifting lugsStandard Lifting Lugs

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 12 AWG

Mounting arrangementF1

Overall length24.57 IN

Product familyGeneral Purpose

Pulley end bearing typeSealed Bearing

RoHS statusROHS COMPLIANT

Service factor1.00

Shaft diameter1.103 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Motor standardsIEC

Hazardous area divisionNot Applicable

UPC781568154922

Motor TypeBrushed

Motor Horsepower3 hp

Overall Dimensions10.38

Drive End Bearing6206

Weight129.00 lbs

Opposite Drive End Bearing6206

Recommended ControlBc142

Typical ApplicationScar Drive Motors for Replacement on Machinery Requiring Metric Mounting Dimensions, Motor Has Metric B5-Flange

Overall Depth24.57 in

Overall Height10.38 in

Overall Width8.63 in

Performance

General characteristics· 180 Arm V, 3 HP

Armature resistance (ohms)0.3209 ohms

Documents & CAD

For this product 3

Dimension DrawingDimension SheetPDF·106 KB·English

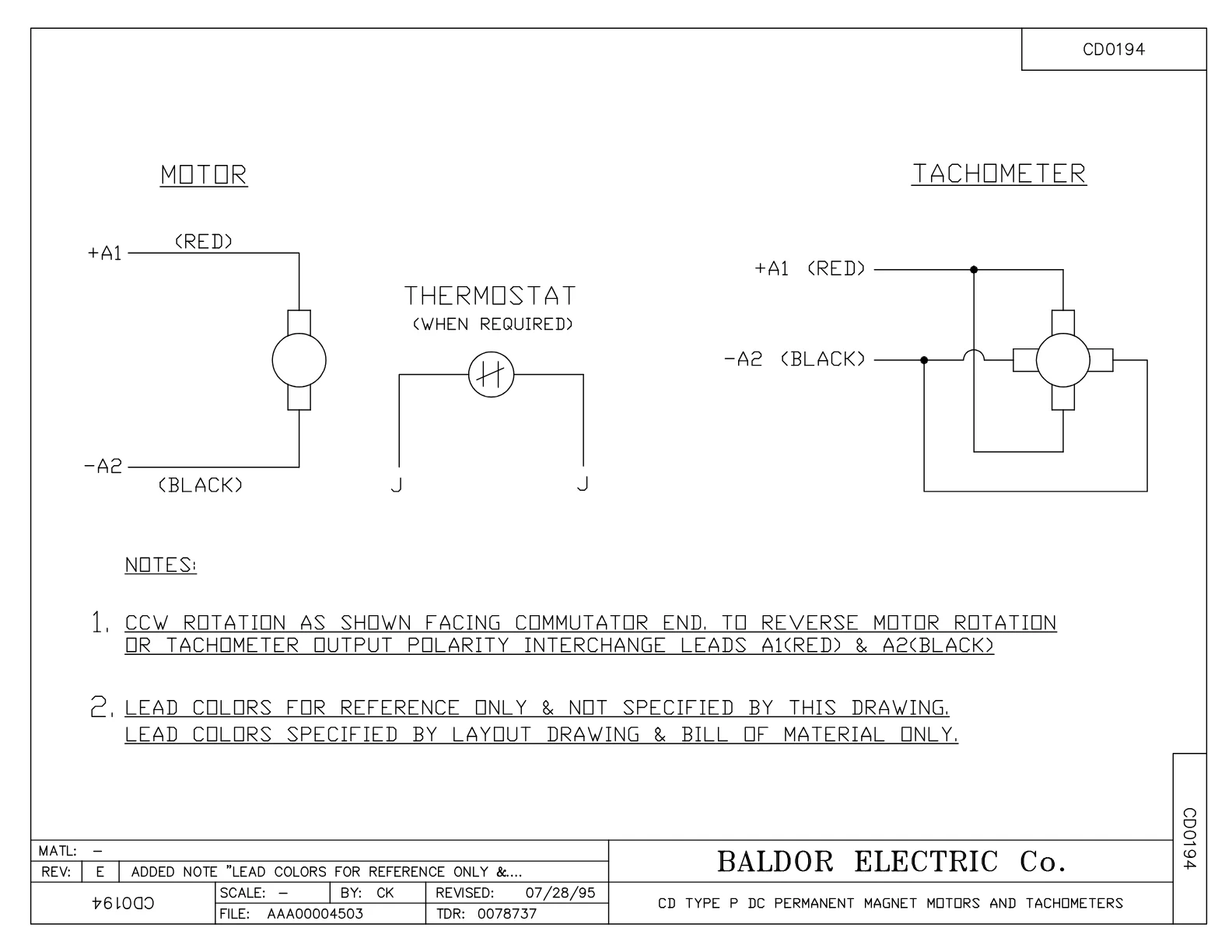

Wiring DiagramWiring DiagramPDF·25 KB·English

DatasheetDatasheetPDF·576 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

CAD Files 8

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor VP3603D motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
BP5031A01SP	CARBON BRUSH, GRADE H45 180 VOLTS	1 pcs	3 motors
36CB3000SP	CONDUIT BOX, CAST	1 pcs	35 motors
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
36FN3000A01SP	EXFN, PLASTIC, 7.00 OD, .912 ID	1 pcs	167 motors
36CB4500SP	CONDUIT BOX LID, STAMPED	2 pcs	7 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors

Accessories 1

Genuine accessories that can be used with the Baldor VP3603D motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
