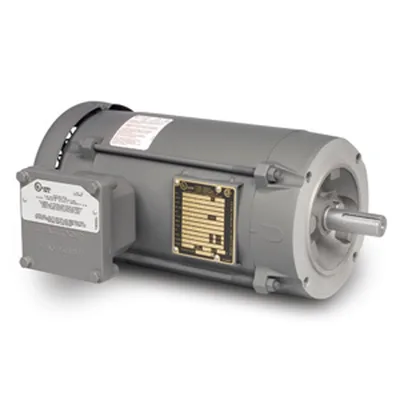

Baldor VM7014-5

Explosion Proof / Hazardous Location Motor - 1 hp, 1800 rpm, 3 ph, 575 V, 56C Frame, EPFC (Explosion Proof Fan Cooled) Enclosure, 60 Hz, C-Face / Footless Mount, Continuous Duty

BaldorMFR # VM7014-5SKU # YLSO53E8BAPUZMN

Motor CategoryGeneral Purpose Motor

Motor Phase3 ph

Motor Horsepower1 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage575 V

Frame Size56C

Have questions?Chat on WhatsApp

About This Product

Explosion Proof / Hazardous Location Motor - 1 hp, 1800 rpm, 3 ph, 575 V, 56C Frame, EPFC (Explosion Proof Fan Cooled) Enclosure, 60 Hz, C-Face / Footless Mount, Continuous Duty

Baldor VM7014-5

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryGeneral Purpose Motor

Motor Phase3 ph

Motor Horsepower1 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage575 V

Frame Size56C

Enclosure TypeEPFC (Explosion Proof Fan Cooled)

Frequency Rating60 Hz

Duty Condition TypeContinuous Duty

Full Load Current1.50 A

Full Load Efficiency75.50 %

Amps @ Voltage1.5 A @ 575 V

Volts @ Frequency575 V @ 60 Hz

Shaft Diameter0.6250 in

Overall Length C Dimension14.30 in

Warranty2 Year Warranty

Type Of BearingBall

NEMA Design ClassB

Service Factor1.00

Frame MaterialSteel

Insulation ClassB

Standards MetCSA, UL

Temperature CodeT3C

Group & ClassDivision 1, Class I - Group D, Class II - Group F & G

Harmonization Code8501.51.6040

Weight40 lbs

Applications575 volt designs for use on pumps, fans, and conveyors where hazardous fumes and dust are present, requiring Div 1 UL listed and/or CSA approved enclosures.

Additional DetailsUL & CSA approved for Class I, Group D, Class II, Group F & G, T3C. Totally enclosed heavy gauge steel and cast iron construction. Corrosion resistant epoxy finish. 1.0 Service Factor. Super-E® explosion proof motors have NEMA Premium® efficiency and 3 year warranty. Fixed speed sine wave operation only.

Mounting TypeC-Face / Footless

Product TypeExplosion Proof (Hazardous Location) Motors
