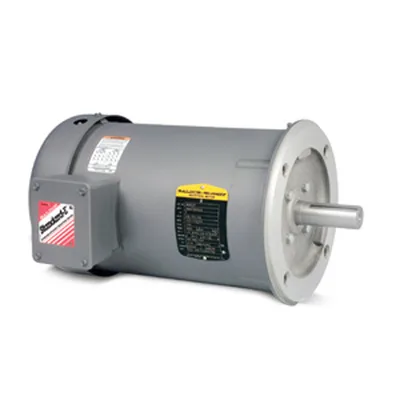

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor VM3704

U Frame Motor - 3 hp, 1200 rpm, 3 ph, 208-230/460 V, 215C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, C-Face / Footless Mount, Continuous Duty

BaldorMFR # VM3704SKU # YLS9IW66841467D

Motor CategoryU-Frame Motor

Motor Phase3 ph

Motor Horsepower3 hp

Synchronous Rpm1200 rpm

Motor Supply Voltage208-230/460 V

Frame Size215C

Have questions?Chat on WhatsApp

About This Product

U Frame Motor - 3 hp, 1200 rpm, 3 ph, 208-230/460 V, 215C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, C-Face / Footless Mount, Continuous Duty

Features and Benefits

Ball bearings with a locked drive end bearing and heavy-gauge steel or cast iron frame
Super-E® motors have NEMA Premium® efficiency and 3 year warranty
Applications: Pumps, fans, conveyors, machine tools, gear reducers and other applications requiring a NEMA C-face motor

Baldor VM3704

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryU-Frame Motor

Motor Phase3 ph

Motor Horsepower3 hp

Synchronous Rpm1200 rpm

Motor Supply Voltage208-230/460 V

Frame Size215C

Enclosure TypeTEFC (Totally Enclosed Fan Cooled)

Frequency Rating60 Hz

Full Load Current4.60 A

Duty Condition TypeContinuous Duty

Full Load Efficiency87.50 %

Amps @ Voltage9.9 A @ 208 V; 9.2 A @ 230 V; 4.6 A @ 460 V

Volts @ Frequency208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz

Shaft Diameter1.1250 in

Overall Length C Dimension18.26 in

Type Of BearingBall

NEMA Design ClassB

Service Factor1.15

Frame MaterialSteel

Insulation ClassF

IP Rating44

Standards MetCSA, UR

Warranty2 Year Warranty

Harmonization Code8501.52.4000

Weight97 lbs

ApplicationsPumps, compressors, fans, conveyors, machine tools and other general purpose three phase applications requiring NEMA U-frame mounting.

Additional DetailsBall bearings, heavy-gauge steel and cast-iron frames, Exxon Polyrex EM grease. All the features of our stock three phase general purpose NEMA T -frame motors but with NEMA U-frame mounting dimensions.

Mounting TypeC-Face / Footless

Product TypeDefinite Purpose Motors
