Baldor VLECP4110T

Vertical P-Base Motor - 40 hp, 1800 rpm, 3 ph, 230/460 V, 324LP Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1775 rpm Base, P-Base Mount, Continuous Duty

BaldorMFR # VLECP4110TSKU # YLS2D5V67C5Q060

EnclosureTEFC

Frame324LP

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency40.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Vertical P-Base Motor - 40 hp, 1800 rpm, 3 ph, 230/460 V, 324LP Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1775 rpm Base, P-Base Mount, Continuous Duty

Baldor VLECP4110T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame324LP

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency40.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupCLI GP A,B,C,D

Hazardous area divisionDivision II

Agency approvalsCCSA US · CSA EEV · NEMA_PREMIUM · UR

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Constant torque speed range0.8

Current at voltage96.000 A @ 230.0 V · 48.000 A @ 460.0 V · 102.000 A @ 208.0 V

Design codeA

Drip coverDrip Cover

Duty ratingCONT

Efficiency at 100% load94.1 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)48.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Duty

KVA codeH

Lifting lugsVertical Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)2700 rpm

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 8 AWG

Motor type1254M

Mounting arrangementF1

Number of poles4

Overall length34.72 IN

Power factor82

Product familySuper-E Chemical Processing

Pulley end bearing typeThrust

Pulley face codeP-Base

Pulley shaft indicatorP-Base Groove & Key

Rodent screenNone

Service factor1.15

Shaft diameter2.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1775 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

Hazardous area temperature codeT3

UPC781568811269

Motor CategoryVertical P-Base Motor

Motor Supply Voltage230/460 V

Base RPM1775 rpm

Weight605 lbs

Mounting TypeP-Base

Product TypePump Motors

Nameplate

Catalog numberVLECP4110T

EnclosureTEFC

Specification number12K001Y276G1

CC number010A

Frame size324LP

Horsepower (HP)40

Insulation classF

Frequency (Hz)60

NEMA design letterA

Speed (rpm)1775

Maximum speed (rpm)2700

Phase3

kVA codeH

Voltage (V)230/460

Motor weight600

Current (A)96/48

Service factor1.15

Power factor82

Opposite drive end bearing6311

Drive end bearingQJ312

Rating40C AMB-CONT

NEMA nominal efficiency (%)94.1

GreasePOLYREX EM

Inverter typePWM

Temperature codeT3

Inverter temperature code200

Temperature code200

Constant horsepower range from60

Constant horsepower range to90

Constant torque frequency from (Hz)0.8

Constant torque frequency to (Hz)60

Variable torque frequency from (Hz)O

Variable torque frequency to (Hz)60

Nameplate numberNP3241

Performance

General characteristics· 460 V, 60 Hz, 40 hp

Line-to-line resistance at 25 °C (ohms)0.14898 Ω

Temperature rise at rated load (°C)54° C

Temperature rise at service factor load (°C)64° C

Start configurationDOL

Breakdown torque386 lb-ft

Pull-up torque193 lb-ft

Locked-rotor torque216 lb-ft

Starting current (A)338 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	47	69	78	83	85	85	84
Efficiency %	0	90.1	93.5	94.2	94.2	93.8	93.1	94
Speed rpm	1798.9	1793.5	1788	1782.5	1776.6	1770.7	1764.1	1773
Line amps A	19.9	22.9	29.5	38.4	48.1	59.2	70.8	54.8
Power W	770	8514	16120	23864	31795	39883	48170	36648
Torque lb-ft	0	29.7	59	88.5	118	148	179	136

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·643 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

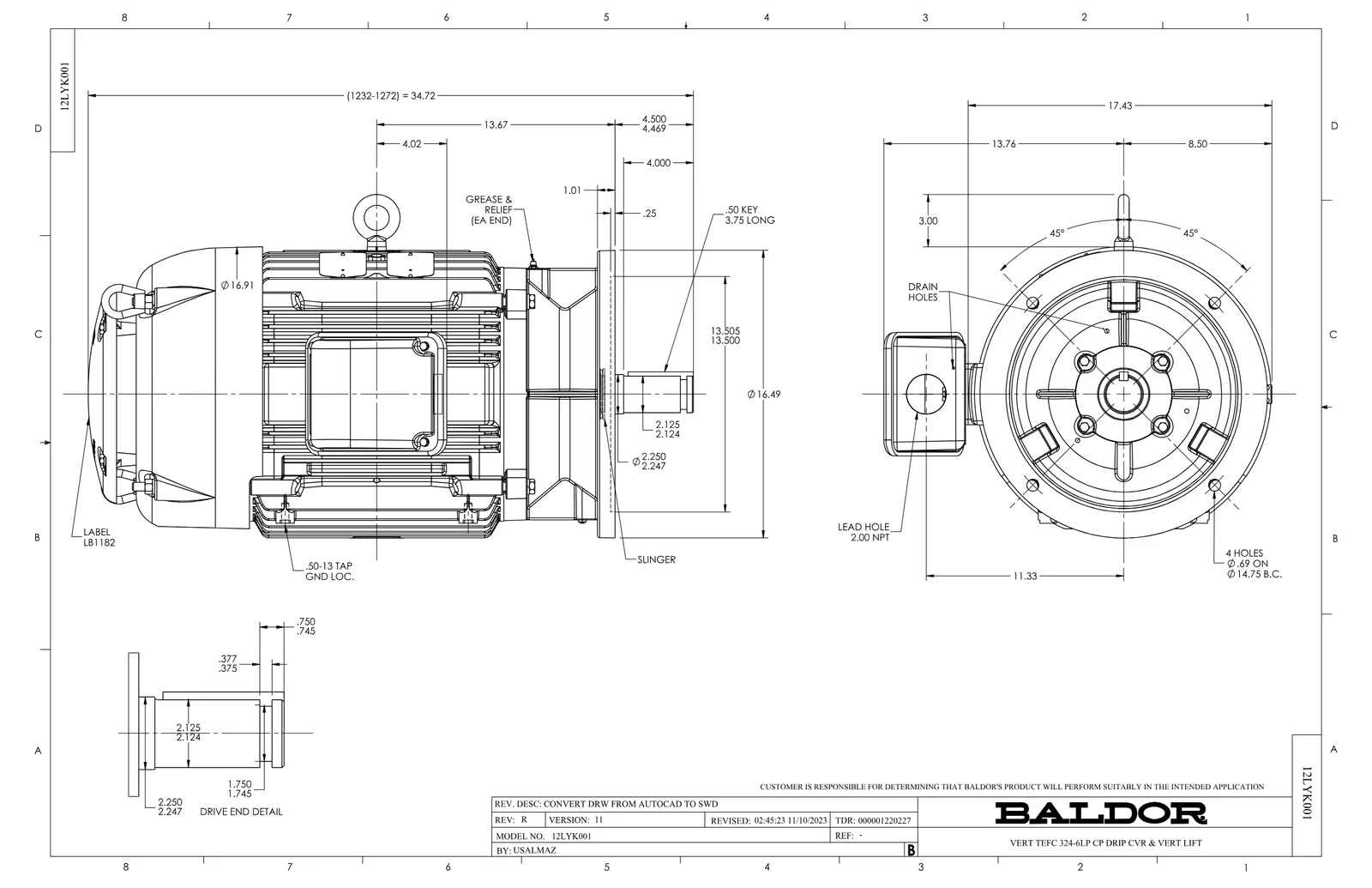

Dimension DrawingDimension SheetPDF·158 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor VLECP4110T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
09FN3001B03SP	EXTERNAL FAN, PLASTIC (COMES W/SCREW FRO	1 pcs	101 motors
09GS1010	GASKET, DWG, LEADWIRE SEPERATOR	1 pcs	343 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	4 pcs	1,025 motors
14GS1003	GASKET CONDUIT BOX LID, NEOP	1 pcs	223 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
