How can I get a price quote for Baldor VL3509A?

You can request a fast quote for Baldor VL3509A from Yılsa Engineering. Reference part number YLSW79FYFNX9WHA. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor VL3509A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor VL3509A genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor VL3509A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor VL3509A

Baldor-Reliance VL3509A is a general purpose single phase AC electric motor, 1 HP, 3450 rpm, 115/230 V 60 Hz, 56C frame, TEFC enclosure.

BaldorMFR # VL3509ASKU # YLSW79FYFNX9WHA

EnclosureTEFC

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance VL3509A is a general purpose single phase AC electric motor, 1 HP, 3450 rpm, 115/230 V 60 Hz, 56C frame, TEFC enclosure.

Baldor VL3509A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage12.000 A @ 115.0 V · 6.000 A @ 230.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load66.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)6.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size4 @ 16 AWG, A&J

Motor type3524L

Mounting arrangementF1

Number of poles2

Overall length13.25 IN

Power factor81

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.25

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationES

Winding thermal 2None

UPC781568109106

Nameplate

Catalog numberVL3509A

Specification number35C13-498

Horsepower (HP)1

Voltage (V)115/230

Current (A)12/6

Speed (rpm)3450

Frame size56C

Frequency (Hz)60

Phase1

Service factor1.25

Code letter (locked rotor kVA)K

NEMA design letterN

Insulation classB

NEMA nominal efficiency (%)66

Power factor81

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1257L

Performance

General characteristics· 230 V, 60 Hz, 1 hp

Line-to-line resistance at 25 °C (ohms)2.46 Ω / 1.75 Ohms B Ph

Start configurationDOL

Breakdown torque4.1 lb-ft

Pull-up torque3.1 lb-ft

Locked-rotor torque5 lb-ft

Starting current (A)38.5 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	29	50	64	75	81	84	86	84
Efficiency %	0	49	65	67	69	68	67.5	68
Speed rpm	3587	3570	3550	3530	3505	3472	3445	3472
Line amps A	2.95	3.2	3.7	4.5	5.5	6.75	7.7	6.75
Power W	197	388	582	842	1082	1360	1631	0
Torque lb-ft	0	0.375	0.75	1.125	1.5	1.875	2.25	0

Documents & CAD

For this product 3

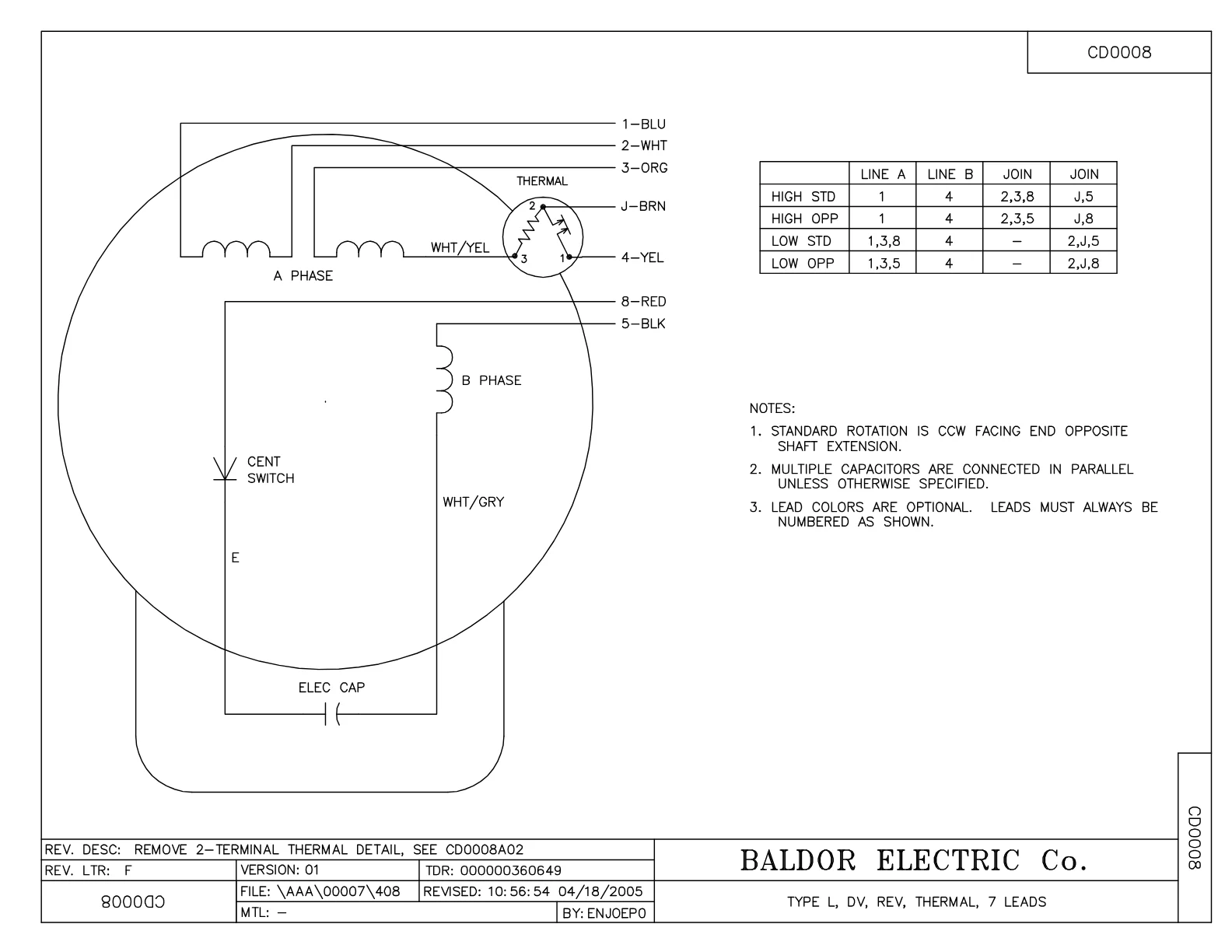

Wiring DiagramWiring DiagramPDF·34 KB·English

DatasheetDatasheetPDF·582 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·105 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor VL3509A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1645A06SP	ELEC CAP, 645-774 MFD, 125V, 2.06D X 4.	1 pcs	56 motors
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
34FN3002A01SP	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	410 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
35CB4802A02SP	CAPACITOR COVER, STAMPED X	1 pcs	103 motors
