Baldor VL3504-50

General Purpose Motor - 1/2 hp, 1500 rpm, 1 ph, 110/220 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 50 Hz, 1425 rpm Base, C-Face / Footless Mount, Continuous Duty

BaldorMFR # VL3504-50SKU # YLS9M6BO9ABQIDX

EnclosureTEFC

Frame56C

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency.370 KW @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 1/2 hp, 1500 rpm, 1 ph, 110/220 V, 56C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 50 Hz, 1425 rpm Base, C-Face / Footless Mount, Continuous Duty

Baldor VL3504-50

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56C

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency.370 KW @ 50 HZ

Phase1

Synchronous speed at frequency (rpm)1500 RPM @ 50 HZ

Voltage at frequency220.0 V @ 50 HZ · 110.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS · UKCA · WEEE · CE · C UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage2.500 A @ 220.0 V · 5.000 A @ 110.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load72.7 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)2.5 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeJ

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3424LC

Mounting arrangementF1

Number of poles4

Overall length11.97 IN

Power factor93

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.25

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1425 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568120231

Motor Supply Voltage110/220 V

Base RPM1425 rpm

Mounting TypeC-Face / Footless

Warranty2 Year Warranty

Type Of BearingBall

NEMA Design ClassN

IP Rating54

Weight32 lbs

ApplicationsPumps, fans, gear reducers, conveyors and many other applications with 50 Hz power supply.

Additional DetailsCE certified. Heavy gauge steel frame construction, pressure-cast aluminum endplates with machined steel bearing inserts for extended bearing life.

Harmonization Code8501.40.4040

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberVL3504-50

Specification number34H852R778

Horsepower (HP).5/.37KW

Voltage (V)110/220

Current (A)5/2.5

Speed (1/min)1425

Frame size56C

Frequency (Hz)50

Phase1

Service factor1.25

Code letter (locked rotor kVA)J

NEMA design letter-

Insulation classB

NEMA nominal efficiency (%)72.7

Power factor93

Rating40C AMB-S1 CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1372L

Performance

General characteristics· 220 V, 50 Hz, 0.37 kw

Line-to-line resistance at 25 °C (ohms)4.8692 Ω / 4.0443 Ohms B Ph

Temperature rise at rated load (°C)53° C

Temperature rise at service factor load (°C)63° C

Start configurationDOL

Breakdown torque4.92 lb-ft

Pull-up torque4.25 lb-ft

Locked-rotor torque5.35 lb-ft

Starting current (A)18.6 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	46	66	79	86	90	92	93	92
Efficiency %	0	44	61.6	69.4	72.8	73.8	73.1	73.8
Speed rpm	1494.8	1484.9	1473.4	1460.5	1446.1	1429	1408.9	1429
Line amps A	1.33	1.47	1.74	2.14	2.58	3.1	3.69	3.1
Power W	133	215	303	404	511	628	757	628
Torque lb-ft	0	0.449	0.8903	1.352	1.811	2.285	2.764	2.29

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·40 KB·English

DatasheetDatasheetPDF·579 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

Series documents 1· shared by this product series

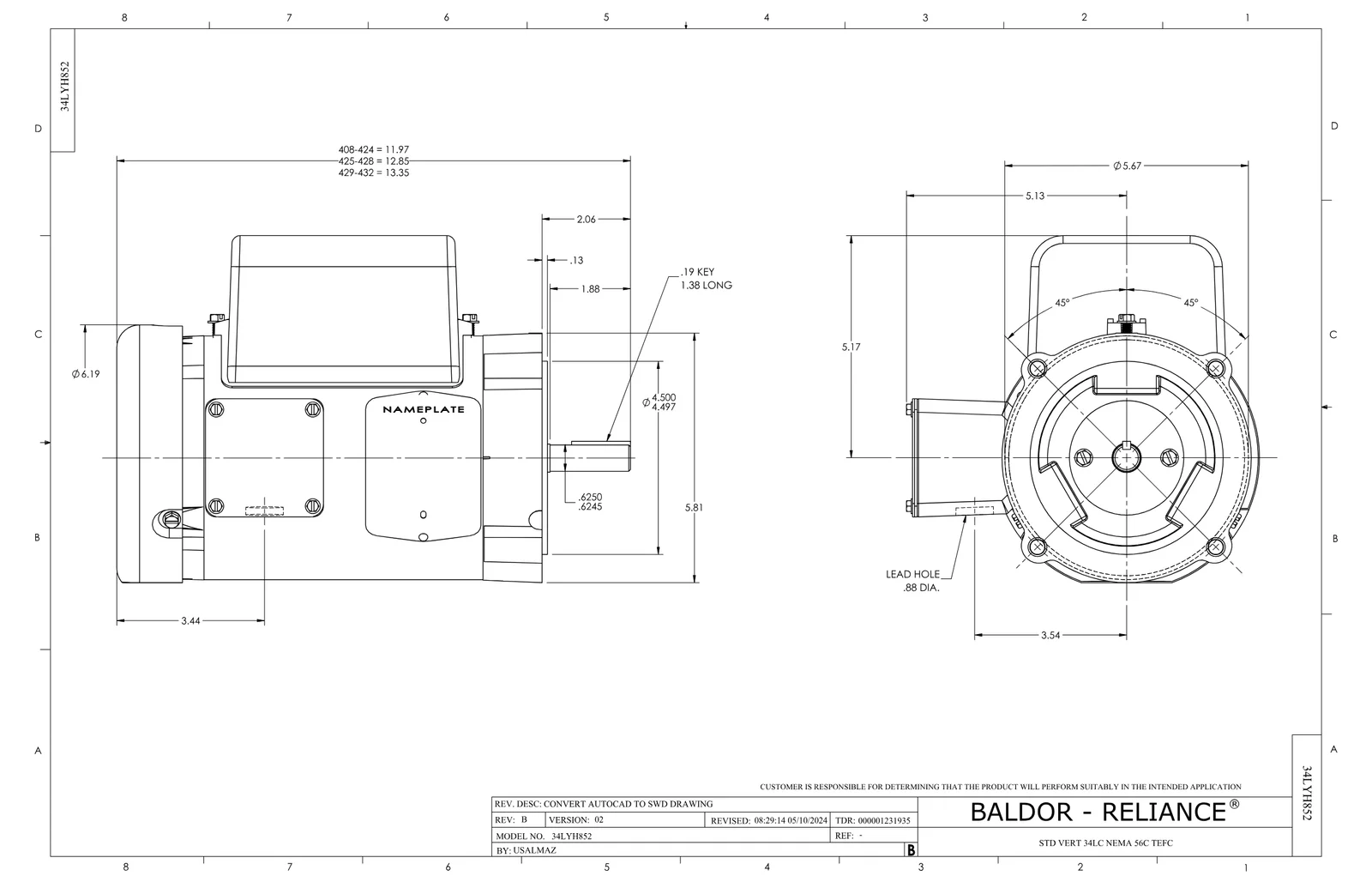

Dimension DrawingDimension SheetPDF·94 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor VL3504-50 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
