Baldor VL3503CNF

Baldor-Reliance VL3503CNF is a general purpose single phase AC electric motor, 0.5 HP, 3450 rpm, 115 V 60 Hz, NEMA 56C frame, TEFC enclosure.

BaldorMFR # VL3503CNFSKU # YLSTSXYYV1PRZB

EnclosureTEFC

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance VL3503CNF is a general purpose single phase AC electric motor, 0.5 HP, 3450 rpm, 115 V 60 Hz, NEMA 56C frame, TEFC enclosure.

Baldor VL3503CNF

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage7.400 A @ 115.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load57.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)7.4 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationCord And Plug

Motor lead quantity/wire size2 @ 16 AWG, A PH

Motor type3416L

Mounting arrangementF1

Number of poles2

Overall length11.38 IN

Power factor71

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.25

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible: Connected OPP STD

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568370469

Nameplate

Catalog numberVL3503CNF

Specification number34G200-3906G1

Horsepower (HP).5

Voltage (V)115

Current (A)7.4

Speed (rpm)3450

Frame size56C

Frequency (Hz)60

Phase1

Service factor1.25

Code letter (locked rotor kVA)K

NEMA design letterN

Insulation classB

NEMA nominal efficiency (%)57

Power factor71

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1256L

Performance

General characteristics· 115 V, 60 Hz, 0.5 hp

Line-to-line resistance at 25 °C (ohms)1.18 Ω / 3.76 Ohms B Ph

Temperature rise at rated load (°C)78° C

Temperature rise at service factor load (°C)92° C

Start configurationDOL

Breakdown torque2 lb-ft

Pull-up torque1.6 lb-ft

Locked-rotor torque3 lb-ft

Starting current (A)39 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	26	39	49	61	69	74	78	74
Efficiency %	0	38.3	49.7	57.4	60.7	60.9	59.8	60.9
Speed rpm	3580	3530	3490	3450	3420	3380	3340	3380
Line amps A	5.9	6	6.4	7	7.8	8.8	9.9	8.8
Power W	176	245	374	480	600	739	893	739
Torque lb-ft	0	0.1875	0.375	0.5625	0.75	0.9375	1.125	0.938

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·93 KB·English

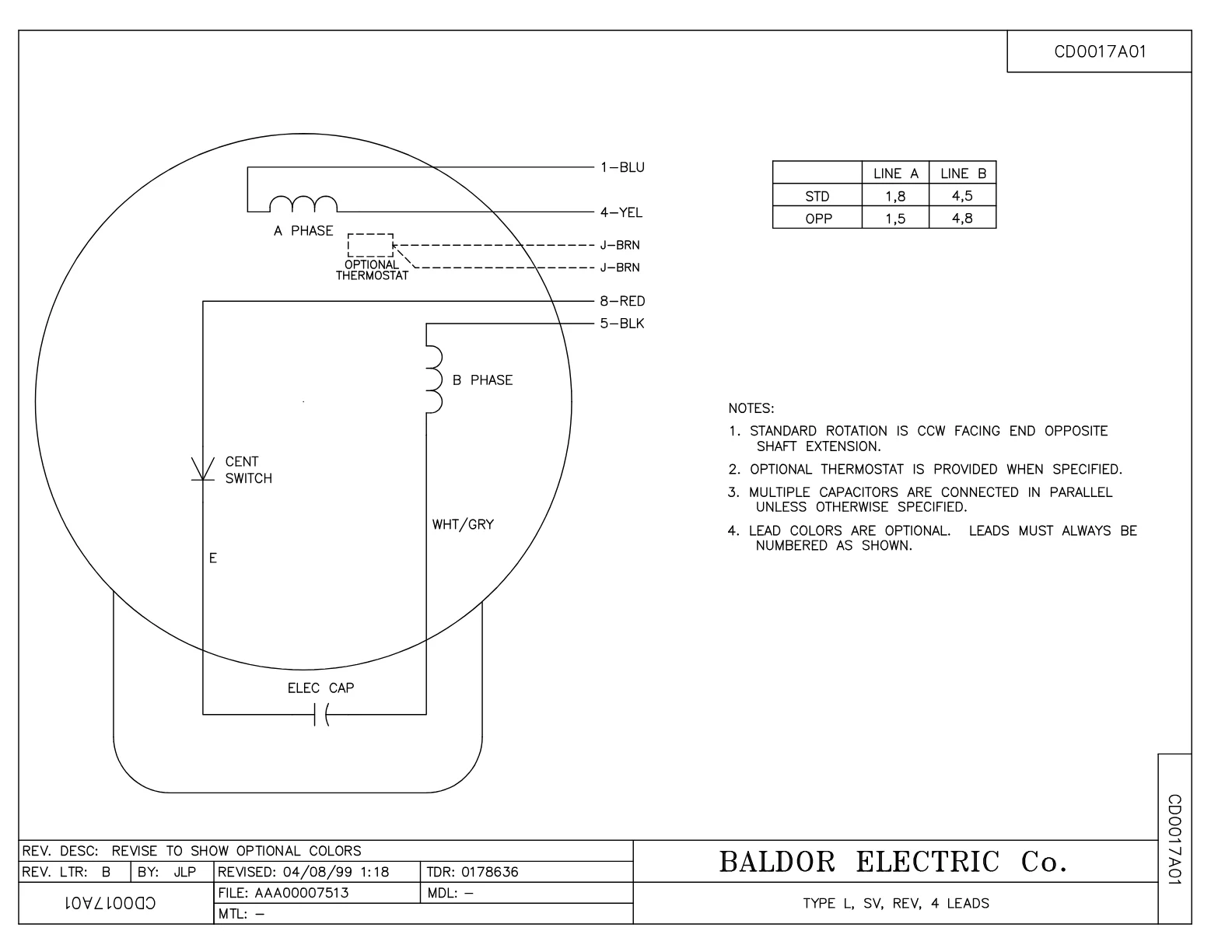

Wiring DiagramWiring DiagramPDF·35 KB·English

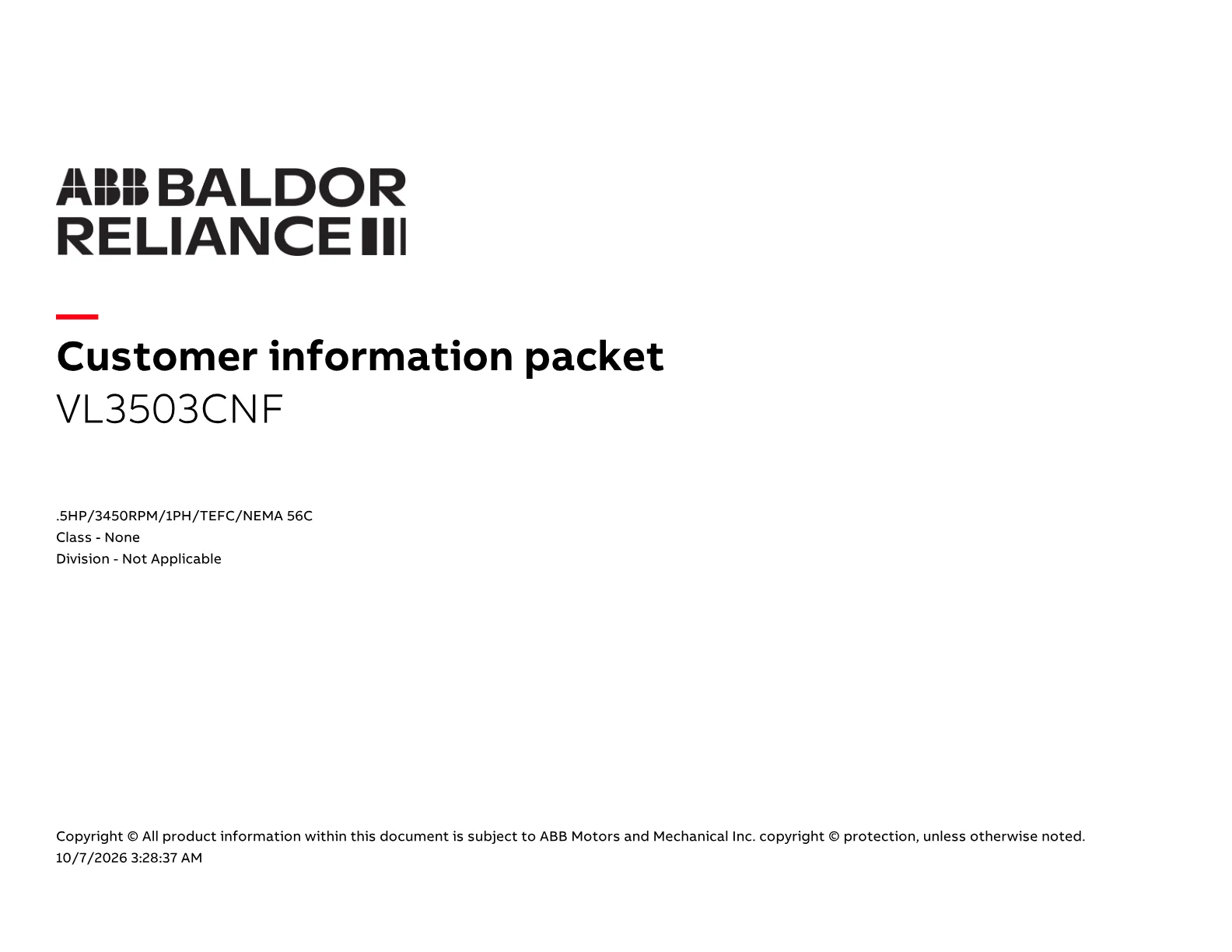

DatasheetDatasheetPDF·570 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor VL3503CNF motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1270A02SP	ELEC CAP, 270-324 MFD, 125V, 1.48D X 3.	1 pcs	65 motors
34EP3102A01SP	FR ENDPLATE, MACH	1 pcs	179 motors
34CB4800SP	CAPACITOR COVER, STAMPED PRIMED	1 pcs	79 motors
34EP3300A24SP	PU ENDPLATE, MACH	1 pcs	100 motors
34FN3002A01SP	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	410 motors
34FH4002A01SP	IEC FH NO GREASER PRIMED	1 pcs	210 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
