Baldor VL1321T

Baldor-Reliance VL1321T is a general purpose single phase AC electric motor, 1.5 HP, 1730 rpm, 115/230 V 60 Hz, 145TC frame, open enclosure.

BaldorMFR # VL1321TSKU # YLSIHL6BZHMKUAG

EnclosureOPEN

Frame145TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance VL1321T is a general purpose single phase AC electric motor, 1.5 HP, 1730 rpm, 115/230 V 60 Hz, 145TC frame, open enclosure.

Baldor VL1321T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame145TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency1.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage15.500 A @ 115.0 V · 7.800 A @ 230.0 V · 8.300 A @ 208.0 V

Design codeL

Drip coverDrip Cover

Duty ratingCONT

Efficiency at 100% load75.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)7.8 a

Front face codeDrip Cover Mounting

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeM

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size4 @ 14 AWG, A PH

Motor type3536L

Mounting arrangementF1

Number of poles4

Overall length15.54 IN

Power factor80

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1730 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568110904

Nameplate

Catalog numberVL1321T

Specification number35DD00G406

Horsepower (HP)1.5

Voltage (V)115/230

Current (A)15.5/7.8

Speed (rpm)1730

Frame size145TC

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)M

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)75.5

Power factor80

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP1256L

Performance

General characteristics· 115 V, 60 Hz, 1.5 hp

Line-to-line resistance at 25 °C (ohms)0.446 Ω / 1.18 Ohms B Ph

Temperature rise at rated load (°C)82° C

Temperature rise at service factor load (°C)101° C

Start configurationDOL

Breakdown torque9.82 lb-ft

Pull-up torque9.83 lb-ft

Locked-rotor torque14.77 lb-ft

Starting current (A)100 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	13	42	62	73	81	83	85	82
Efficiency %	0	66.2	75.9	78.2	77.1	73.2	67.7	74.8
Speed rpm	1799	1782	1767	1748	1728	1697	1658	1709
Line amps A	10.35	8.89	10.27	12.73	15.64	19.99	25.47	18.2
Power W	151	428	734	1076	1452	1918	2490	1732
Torque lb-ft	0	1.12	2.22	3.39	4.56	5.83	7.16	5.32

Documents & CAD

For this product 4

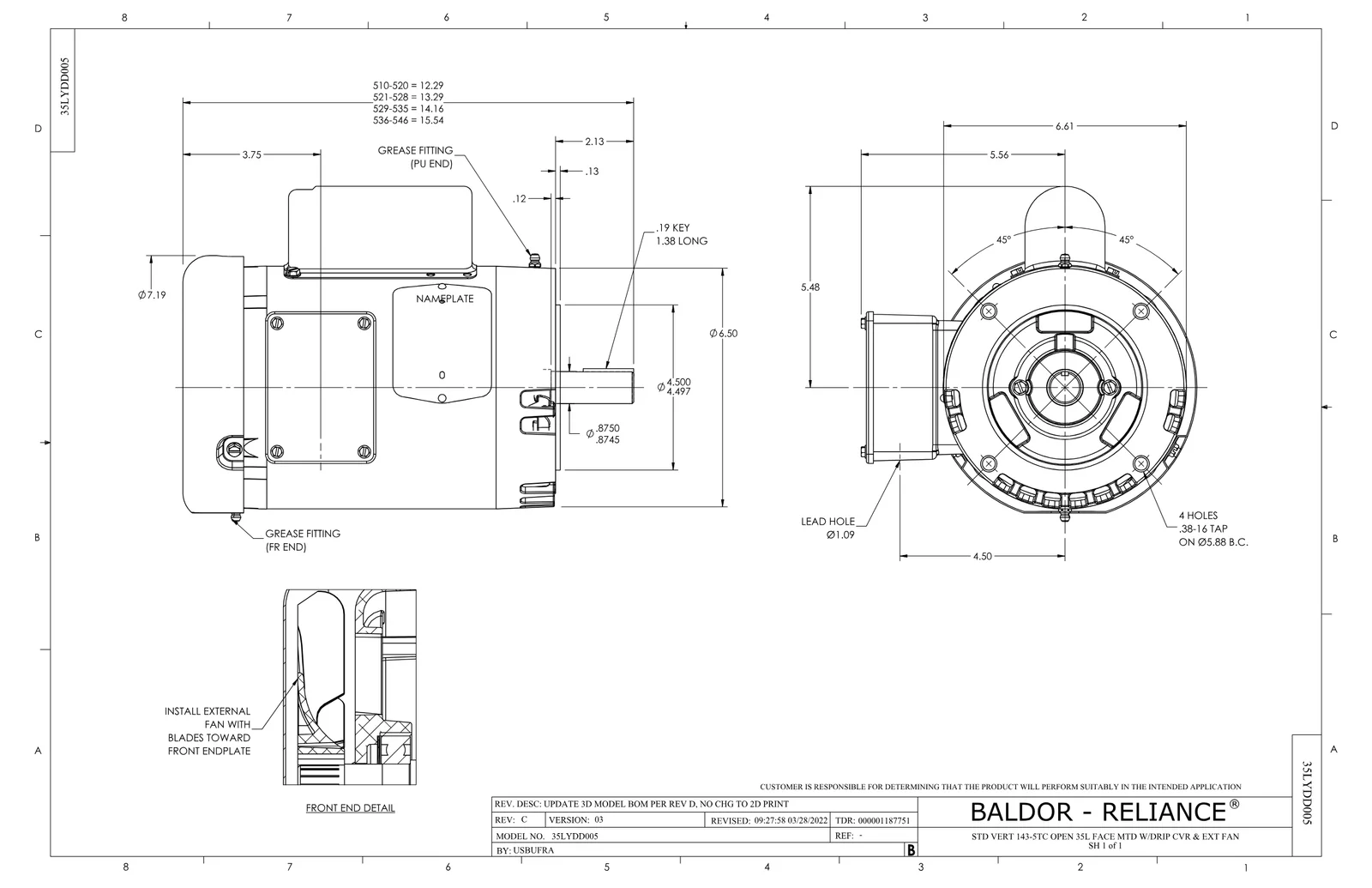

Dimension DrawingDimension SheetPDF·124 KB·English

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·606 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor VL1321T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1645A06SP	ELEC CAP, 645-774 MFD, 125V, 2.06D X 4.	1 pcs	56 motors
35CB4802A02SP	CAPACITOR COVER, STAMPED X	1 pcs	103 motors
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1 pcs	436 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
