How can I get a price quote for Baldor VL1317A?

You can request a fast quote for Baldor VL1317A from Yılsa Engineering. Reference part number YLSDGLGIS1TAWDQ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor VL1317A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor VL1317A genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor VL1317A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor VL1317A

Jet Pump Motor - 2 hp, 3600 rpm, 1 ph, 115/230 V, 56C Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 3450 rpm Base, C-Face / Footless Mount, Continuous Duty

BaldorMFR # VL1317ASKU # YLSDGLGIS1TAWDQ

EnclosureOPEN

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency2.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Jet Pump Motor - 2 hp, 3600 rpm, 1 ph, 115/230 V, 56C Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 3450 rpm Base, C-Face / Footless Mount, Continuous Duty

Baldor VL1317A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Induction Run

Output at frequency2.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage13.000 A @ 230.0 V · 26.000 A @ 115.0 V

Design codeL

Drip coverDrip Cover

Duty ratingCONT

Efficiency at 100% load70.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)13.0 a

Front face codeTerminal Panel

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeG

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitTerminal Panel

Motor lead terminationNone

Motor lead quantity/wire size4 @ 14 AWG, A&J

Motor type3528L

Mounting arrangementF1

Number of poles2

Overall length12.74 IN

Power factor69

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.20

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible: Connected OPP STD

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingDo Not Use Eve-Not Valiid

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568110928

Motor CategoryJet Pump Motor

Motor Supply Voltage115/230 V

Base RPM3450 rpm

Warranty2 Year Warranty

Type Of BearingBall

IP Rating22/23

Harmonization Code8501.40.6040

Weight44 lbs

ApplicationsResidential and industrial pumps, swimming pool pumps, etc.

Additional DetailsDiecast aluminum end plates with machined steel bearing seat insert, drip cover, and stainless steel shaft extension on 56J frames. Catalog numbers ending with “A” have automatic thermal overload.

Mounting TypeC-Face / Footless

Product TypePump Motors

Nameplate

Catalog numberVL1317A

Specification number35E523W183

Horsepower (HP)2

Voltage (V)115/230

Current (A)26/13

Speed (rpm)3450

Frame size56C

Frequency (Hz)60

Phase1

Service factor1.20

Code letter (locked rotor kVA)G

NEMA design letterL

Insulation classB

NEMA nominal efficiency (%)70

Power factor69

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP1257L

Performance

General characteristics· 230 V, 60 Hz, 2 hp

Line-to-line resistance at 25 °C (ohms)0.842 Ω / 0.843 Ohms B Ph

Temperature rise at rated load (°C)77° C

Temperature rise at service factor load (°C)87° C

Start configurationDOL

Breakdown torque10.4 lb-ft

Pull-up torque5.9 lb-ft

Locked-rotor torque7.1 lb-ft

Starting current (A)79 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	22	38	53	65	71	80	84	78
Efficiency %	0	46	60	66	70	68	67.5	68.4
Speed rpm	3589	3569	3547	3523	3498	3469	3436	3475
Line amps A	9.3	9.5	10.3	11.4	13	14.7	16.8	13.8
Power W	471	827	1260	1706	2129	2717	3254	0
Torque lb-ft	0	0.75	1.5	2.25	3	3.75	4.5	0

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·119 KB·English

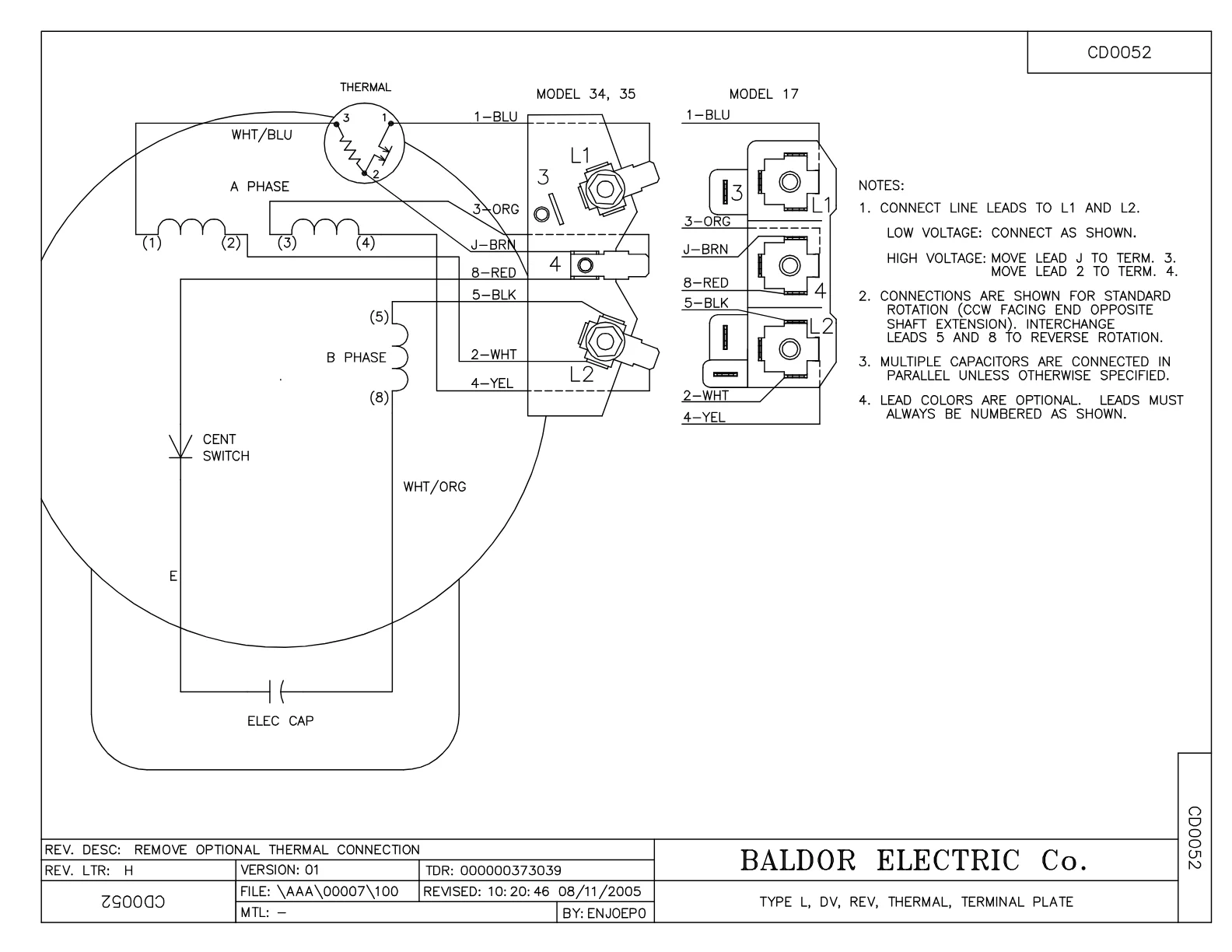

Wiring DiagramWiring DiagramPDF·45 KB·English

DatasheetDatasheetPDF·609 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor VL1317A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1645A06SP	ELEC CAP, 645-774 MFD, 125V, 2.06D X 4.	1 pcs	56 motors
35CB4802A02SP	CAPACITOR COVER, STAMPED X	1 pcs	103 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
