Baldor VL1313A

Jet Pump Motor - 1-1/2 hp, 3600 rpm, 1 ph, 115/230 V, 56C Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 3450 rpm Base, C-Face / Footless Mount, Continuous Duty

BaldorMFR # VL1313ASKU # YLSWU62KDKV6QOK

EnclosureOPEN

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency1.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Jet Pump Motor - 1-1/2 hp, 3600 rpm, 1 ph, 115/230 V, 56C Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, 3450 rpm Base, C-Face / Footless Mount, Continuous Duty

Baldor VL1313A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPEN

Frame56C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency1.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage13.000 A @ 115.0 V · 6.500 A @ 230.0 V

Drip coverDrip Cover

Duty ratingCONT

Efficiency at 100% load78.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)6.5 a

Front face codeDrip Cover Mounting

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeNot Inverter

KVA codeH

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitTerminal Panel Or Lead Hole

Motor lead terminationFlying Leads

Motor lead quantity/wire size4 @ 16 AWG, A&J

Motor type3432LC

Mounting arrangementF1

Number of poles2

Overall length13.01 IN

Power factor95

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.30

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible: Connected OPP STD

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568110881

Motor CategoryJet Pump Motor

Motor Supply Voltage115/230 V

Base RPM3450 rpm

Warranty2 Year Warranty

Type Of BearingBall

IP Rating22/23

Harmonization Code8501.40.6040

Weight40 lbs

ApplicationsResidential and industrial pumps, swimming pool pumps, etc.

Additional DetailsDiecast aluminum end plates with machined steel bearing seat insert, drip cover, and stainless steel shaft extension on 56J frames. Catalog numbers ending with “A” have automatic thermal overload.

Mounting TypeC-Face / Footless

Product TypePump Motors

Nameplate

Catalog numberVL1313A

Specification number34H551X598

Horsepower (HP)1.5

Voltage (V)115/230

Current (A)13/6.5

Speed (rpm)3450

Frame size56C

Frequency (Hz)60

Phase1

Service factor1.30

Code letter (locked rotor kVA)H

NEMA design letter-

Insulation classB

NEMA nominal efficiency (%)78.5

Power factor95

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureOPEN

Nameplate numberNP1257L

Performance

General characteristics· 230 V, 60 Hz, 1.5 hp

Line-to-line resistance at 25 °C (ohms)1.58 Ω / 1.44 Ohms B Ph

Temperature rise at rated load (°C)38° C

Temperature rise at service factor load (°C)53° C

Start configurationDOL

Breakdown torque6.2 lb-ft

Pull-up torque5 lb-ft

Locked-rotor torque6.7 lb-ft

Starting current (A)43.5 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	40	81	90	93	95	95	95	95
Efficiency %	0	60.5	76.2	77.7	78.5	77.2	75.3	76.8
Speed rpm	3599	3566	3534	3498	3455	3403	3343	3391
Line amps A	1.65	2.45	3.65	5	6.5	8.25	10.25	8.65
Power W	152	481	758	1103	1438	1800	2176	1875
Torque lb-ft	0	0.575	1.15	1.725	2.3	2.875	3.45	2.99

Documents & CAD

For this product 3

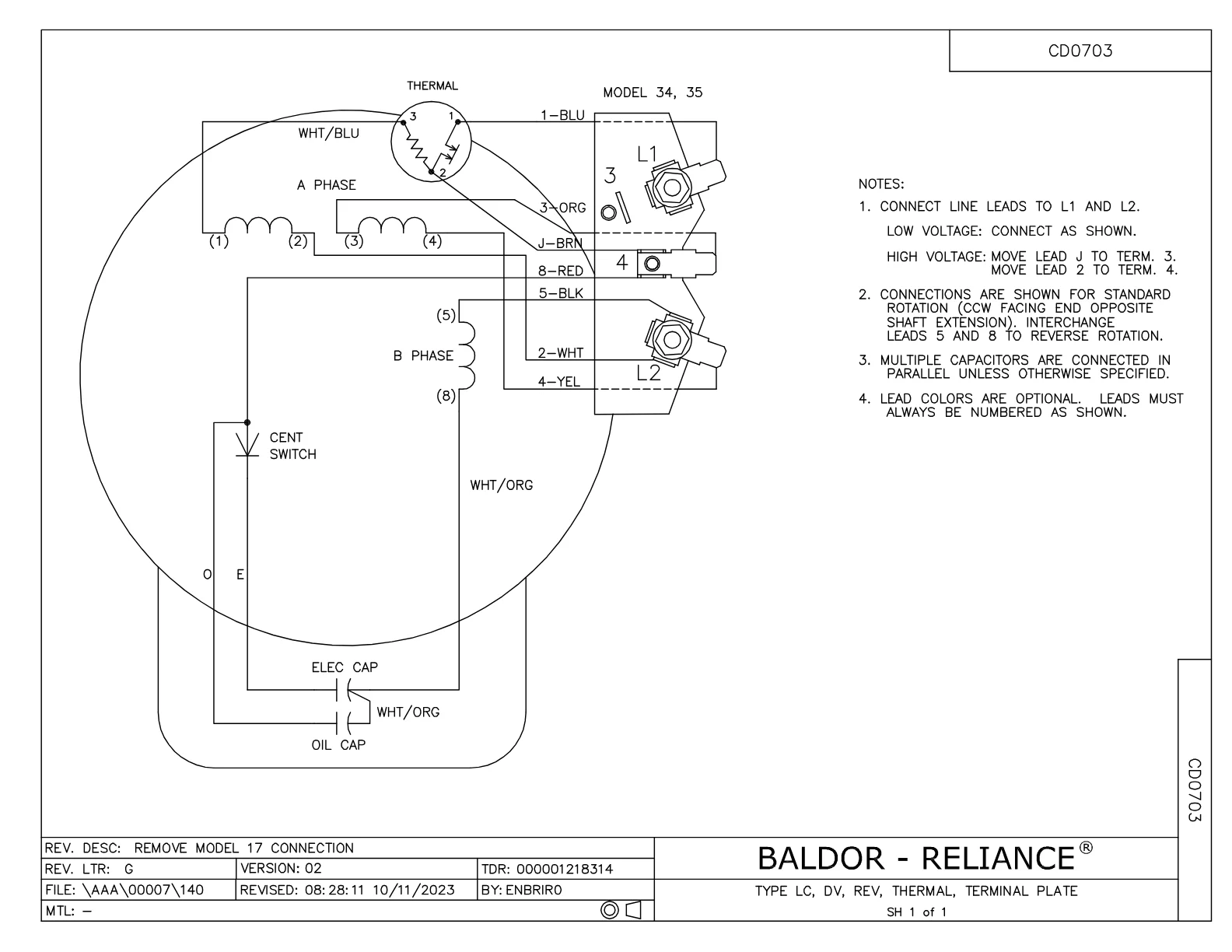

Wiring DiagramWiring DiagramPDF·42 KB·English

DatasheetDatasheetPDF·576 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·88 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor VL1313A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1540A06SP	ELEC CAP, 540-648 MFD, 125V, 2.06D X 4.	1 pcs	53 motors
34CB4501SP	TERMINAL BOX LID, STAMPED X (PLATED)	1 pcs	95 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
