How can I get a price quote for Baldor VL1307A?

You can request a fast quote for Baldor VL1307A from Yılsa Engineering. Reference part number YLSTG2UNXNXWHSG. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor VL1307A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor VL1307A genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor VL1307A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

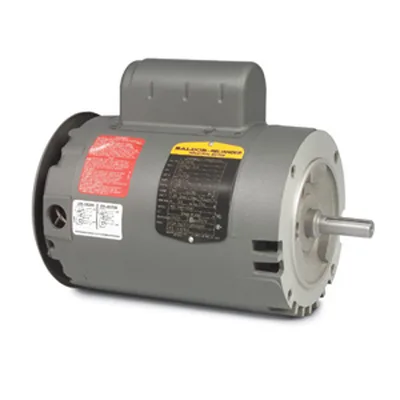

Baldor VL1307A

Jet Pump Motor - 3/4 hp, 1800 rpm, 1 ph, 115/230 V, 56C Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, C-Face / Footless Mount, Continuous Duty

BaldorMFR # VL1307ASKU # YLSTG2UNXNXWHSG

Motor CategoryJet Pump Motor

Motor Phase1 ph

Motor Horsepower3/4 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage115/230 V

Frame Size56C

Have questions?Chat on WhatsApp

About This Product

Jet Pump Motor - 3/4 hp, 1800 rpm, 1 ph, 115/230 V, 56C Frame, ODP (Open Drip-Proof) Enclosure, 60 Hz, C-Face / Footless Mount, Continuous Duty

Baldor VL1307A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryJet Pump Motor

Motor Phase1 ph

Motor Horsepower3/4 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage115/230 V

Frame Size56C

Enclosure TypeODP (Open Drip-Proof)

Frequency Rating60 Hz

Duty Condition TypeContinuous Duty

Full Load Current5.40 A

Full Load Efficiency63.00 %

Amps @ Voltage5.4 A @ 230 V; 10.8 A @ 115 V

Volts @ Frequency115 V @ 60 Hz; 230 V @ 60 Hz

Standards MetCSA, UR

Shaft Diameter0.6250 in

Overall Length C Dimension11.75 in

Warranty2 Year Warranty

Type Of BearingBall

NEMA Design ClassN

Service Factor1.25

Frame MaterialSteel

Insulation ClassB

IP Rating22/23

Harmonization Code8501.40.4040

Weight34 lbs

ApplicationsResidential and industrial pumps, swimming pool pumps, etc.

Additional DetailsDiecast aluminum end plates with machined steel bearing seat insert, drip cover, and stainless steel shaft extension on 56J frames. Catalog numbers ending with “A” have automatic thermal overload.

Mounting TypeC-Face / Footless

Product TypePump Motors
