Baldor VJPFPM2559T-4

Baldor-Reliance VJPFPM2559T-4 is a 3-phase, 405TCZ frame, ODP vertical fire pump motor with drip cover, rated 125 HP, 1775 rpm, 460 V at 60 Hz and 100 HP, 1475 rpm, 380 V at 50 Hz.

BaldorMFR # VJPFPM2559T-4SKU # YLSG0LGTFCVA9IE

EnclosureODP

Frame405TCZ

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency100.000 HP @ 50 HZ · 125.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance VJPFPM2559T-4 is a 3-phase, 405TCZ frame, ODP vertical fire pump motor with drip cover, rated 125 HP, 1775 rpm, 460 V at 60 Hz and 100 HP, 1475 rpm, 380 V at 50 Hz.

Baldor VJPFPM2559T-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame405TCZ

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency100.000 HP @ 50 HZ · 125.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1500 RPM @ 50 HZ

Voltage at frequency380.0 V @ 50 HZ · 460.0 V @ 60 HZ

Agency approvalsCULUS · CSA EEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage141.000 A @ 380.0 V · 145.000 A @ 460.0 V

Design codeB

Drip coverDrip Cover

Duty ratingCONT

Efficiency at 100% load94.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)141.0 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeF

Lifting lugsVertical Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead terminationFlying Leads

Motor lead quantity/wire size12 @ 2 AWG

Motor type4476M

Mounting arrangementF1

Number of poles4

Overall length40.22 IN

Power factor85

Product familyFire Pump Motor

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorTapped & Key

Rodent screenIncluded

Service factor1.15

Shaft diameter2.125 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1475 rpm · 1775 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568892824

Nameplate

Catalog numberVJPFPM2559T-4

Ingress protection (IP)23

Specification number44E270W359H2

Frame size405TCZ

Frequency (Hz)60

Horsepower (HP)125

Speed (rpm)1775

Frequency (Hz)50

Horsepower (HP)100

Speed (rpm)1475

Voltage (V)460

Code letter (locked rotor kVA)F

Voltage (V)380

Code letter (locked rotor kVA)F

Current (A)145

NEMA design letterB

Current (A)141

NEMA design letterB

Efficiency (%)94.5

Service factor1.15

Power factor85

Efficiency (%)94.1

Service factor1.15

Power factor85

Rating40C AMB-CONT

Drive end bearing6316

GreasePOLYREX EM

Opposite drive end bearing6312

Motor weight590

Insulation classF

Phase3

EnclosureOPSB

CC number010A

Nameplate numberNP3454L

Performance

General characteristics· 460 V, 60 Hz, 125 hp

Line-to-line resistance at 25 °C (ohms)0.0453 Ω

Temperature rise at rated load (°C)48° C

Temperature rise at service factor load (°C)58° C

Start configurationDOL

Breakdown torque991 lb-ft

Pull-up torque385 lb-ft

Locked-rotor torque490 lb-ft

Starting current (A)845 A

Line-to-line resistance at 25 °C (ohms)0.0453 Ω

Temperature rise at rated load (°C)45° C

Temperature rise at service factor load (°C)55° C

Start configurationDOL

Breakdown torque962 lb-ft

Pull-up torque406 lb-ft

Locked-rotor torque517 lb-ft

Starting current (A)829 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	58	77	83	85	85	84	85
Efficiency %	0	92.6	95.2	95.1	94.6	93.9	93	94.2
Speed rpm	1799	1795	1790	1784	1777	1769	1761	1772
Line amps A	42.8	55.1	80.2	111	145	182	223	167
Power W	1705	25427	49431	73820	98455	123428	149031	113439
Torque lb-ft	0	92.3	185	277	369	461	554	424

Documents & CAD

For this product 3

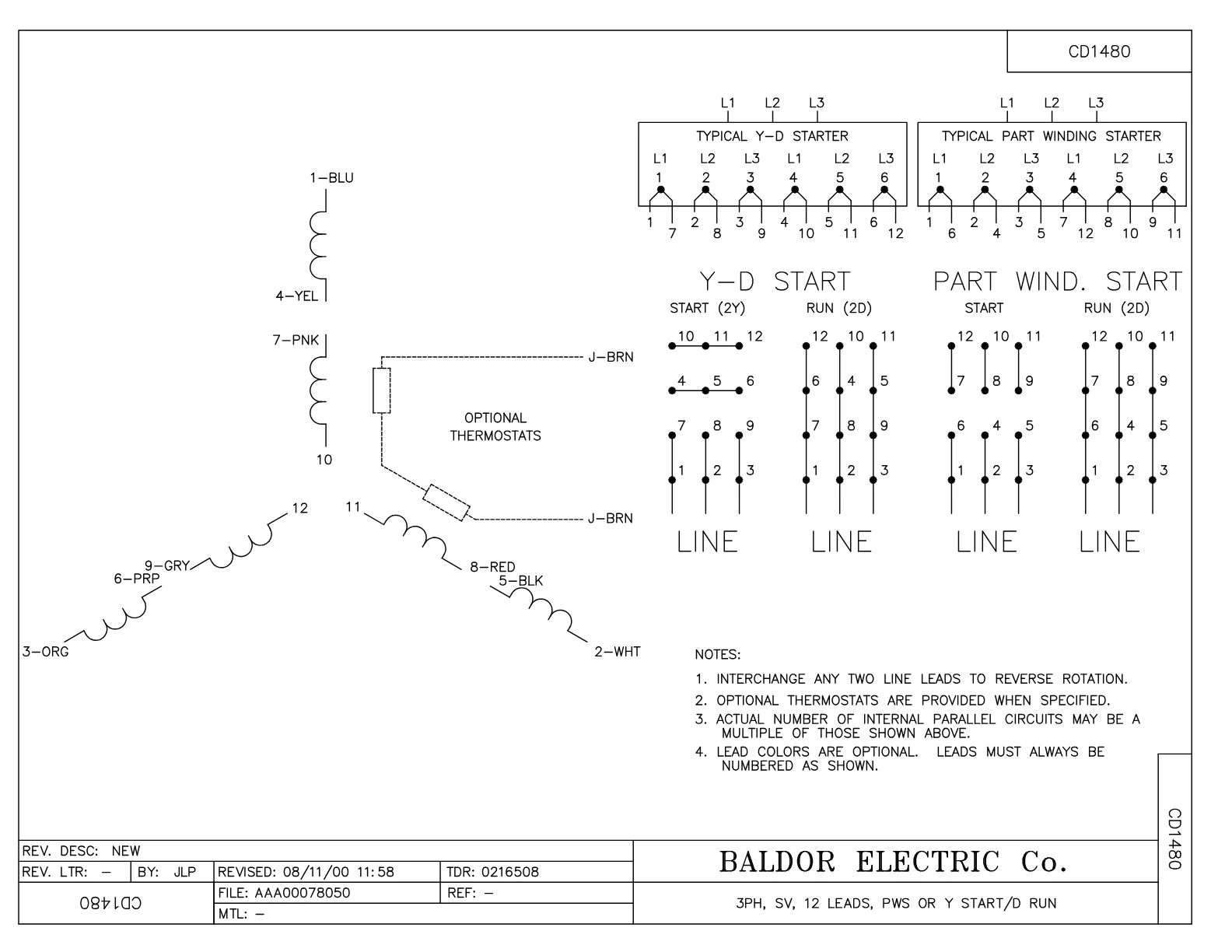

Wiring DiagramWiring DiagramPDF·57 KB·English

DatasheetDatasheetPDF·741 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·157 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 8

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor VJPFPM2559T-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	9 pcs	1,025 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
