Baldor VJPFPM2515T-5

VJPFPM2515T-5

BaldorMFR # VJPFPM2515T-5SKU # YLSFQMAE0ITN9OQ

EnclosureODP

Frame256JP

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency20.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor VJPFPM2515T-5 (VJPFPM2515T-5) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor VJPFPM2515T-5 — price, stock availability and technical specifications.

Baldor VJPFPM2515T-5

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame256JP

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency20.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency575.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCULUS · CSA EEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage19.600 A @ 575.0 V

Design codeB

Drip coverDrip Cover

Duty ratingCONT

Efficiency at 100% load91.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)19.6 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeF

Lifting lugsVertical Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 12 AWG

Motor type3936M

Mounting arrangementF1

Number of poles4

Overall length28.15 IN

Power factor83

Product familyFire Pump Motor

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorTapped & Key

Rodent screenIncluded

Service factor1.15

Shaft diameter1.750 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1755 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568840238

Product TypePump Motors

Nameplate

Catalog numberVJPFPM2515T-5

Ingress protection (IP)23

Specification number39N092X987H2

Frame size256JP

Frequency (Hz)60

Horsepower (HP)20

Speed (rpm)1755

Voltage (V)575

Code letter (locked rotor kVA)F

Current (A)19.6

NEMA design letterB

Efficiency (%)91

Service factor1.15

Power factor83

Rating40C AMB-CONT

Drive end bearing6309

GreasePOLYREX EM

Opposite drive end bearing6208

Motor weight208

Insulation classF

Phase3

EnclosureOPSB

CC number010A

Nameplate numberNP3454L

Performance

General characteristics· 575 V, 60 Hz, 20 hp

Line-to-line resistance at 25 °C (ohms)0.916 Ω

Temperature rise at rated load (°C)48° C

Temperature rise at service factor load (°C)61° C

Start configurationDOL

Breakdown torque177 lb-ft

Pull-up torque73.5 lb-ft

Locked-rotor torque105 lb-ft

Starting current (A)109 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	6	48	70	79	83	86	86	85
Efficiency %	0	87.7	91.6	91.9	91.1	89.9	88.2	90.4
Speed rpm	1799	1790	1781	1770	1759	1746	1730	1751
Line amps A	7.71	8.98	11.8	15.5	19.6	24.4	29.6	22.5
Power W	446	4262	8265	12227	16245	20802	25236	18979
Torque lb-ft	0	14.7	29.9	44.7	59.2	75.4	90.5	68.9

Documents & CAD

For this product 3

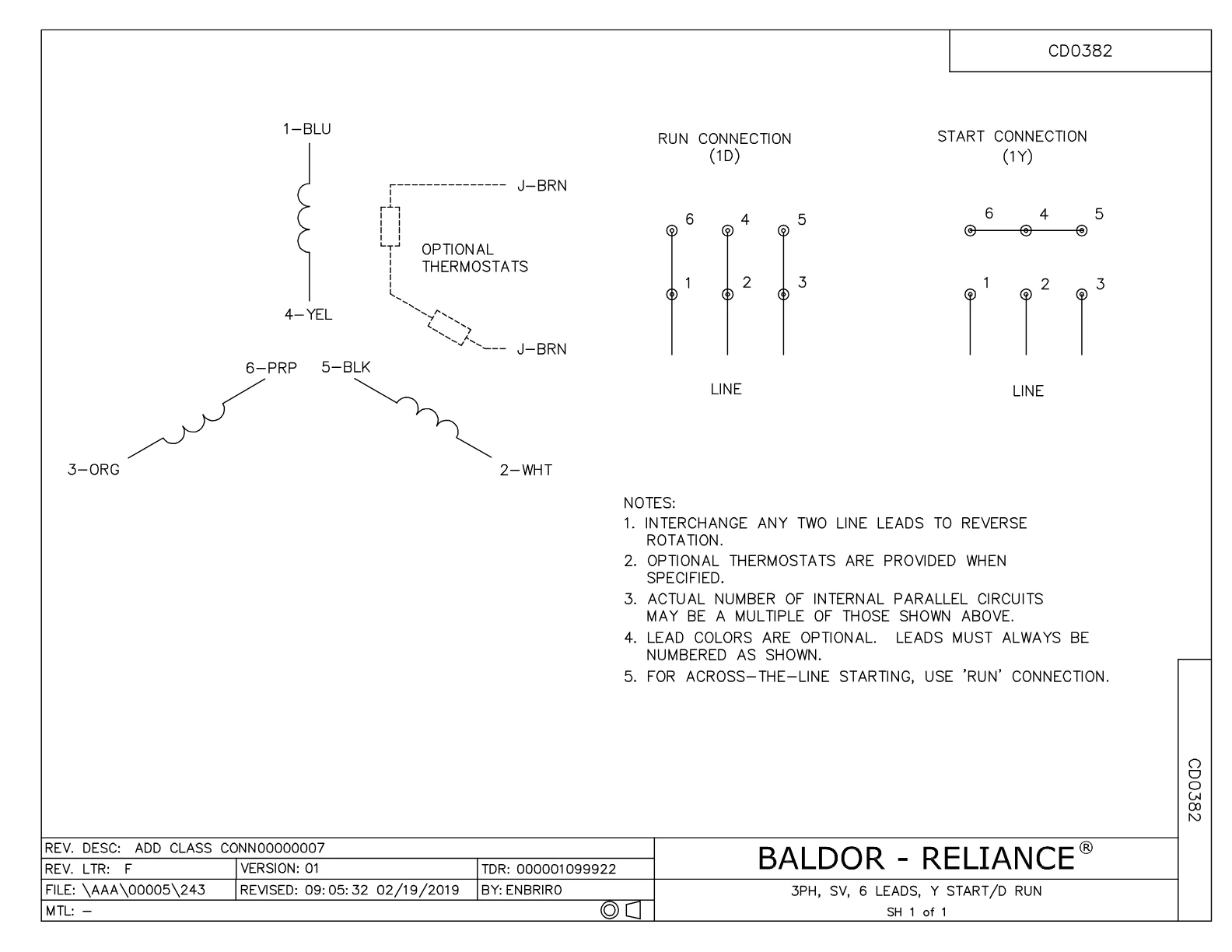

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·646 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·163 KB·English

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor VJPFPM2515T-5 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
39FH4500A01	DRIP COVER, STAMPED	1 pcs	15 motors
09CB3501SP	CONDUIT BOX LID FOR 09CB3001 & 09CB3002	1 pcs	392 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
