How can I get a price quote for Baldor VHECP4316T?

You can request a fast quote for Baldor VHECP4316T from Yılsa Engineering. Reference part number YLSDHIVT61J6JSI. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor VHECP4316T in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor VHECP4316T genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor VHECP4316T?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor VHECP4316T

Baldor-Reliance VHECP4316T is a 75 HP, 1780 rpm, 3-phase 460/230 V, 60 Hz, 365HP frame, TEFC three-phase AC induction electric motor.

BaldorMFR # VHECP4316TSKU # YLSDHIVT61J6JSI

EnclosureTEFC

Frame365HP

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency75.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance VHECP4316T is a 75 HP, 1780 rpm, 3-phase 460/230 V, 60 Hz, 365HP frame, TEFC three-phase AC induction electric motor.

Baldor VHECP4316T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame365HP

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency75.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCCSAUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorBracket Mounted

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage171.000 A @ 230.0 V · 85.900 A @ 460.0 V

Design codeB

Drip coverDrip Cover

Duty ratingCONT

Efficiency at 100% load95.4 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)85.9 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeG

Lifting lugsStandard Lifting Lugs

Motor lead quantity/wire size3 @ 4 AWG

Motor typeA36070M

Mounting arrangementF1

Number of poles4

Overall length35.36 IN

Power factor86

Pulley end bearing typeBall

Pulley face codeP-Base

Service factor1.15

Shaft diameter1.625 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1780 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

UPC781568397107

Nameplate

Catalog numberVHECP4316T

Specification numberP36G3429

Horsepower (HP)75HP

Current (A)172/86

Voltage (V)230/460

NEMA design letterB

Frame size365HP

Speed (rpm)1780

Frequency (Hz)60

Ambient temperature (°C)40

Service factor1.15

Drive end bearing65BC03J30X

Phase3

DutyCONT

Insulation classF

Opposite drive end bearing65BC03J30X

TypeP

EnclosureTEFC

Code letter (locked rotor kVA)G

Drive end bearing data6313

Power factor86

NEMA nominal efficiency (%)95.4

Opposite drive end bearing data6313

Maximum correction (kVAR)16.0

Guaranteed efficiency (%)94.5

Efficiency at 3/4 load (%)95.4

Nameplate number000613007EW

Documents & CAD

For this product 2

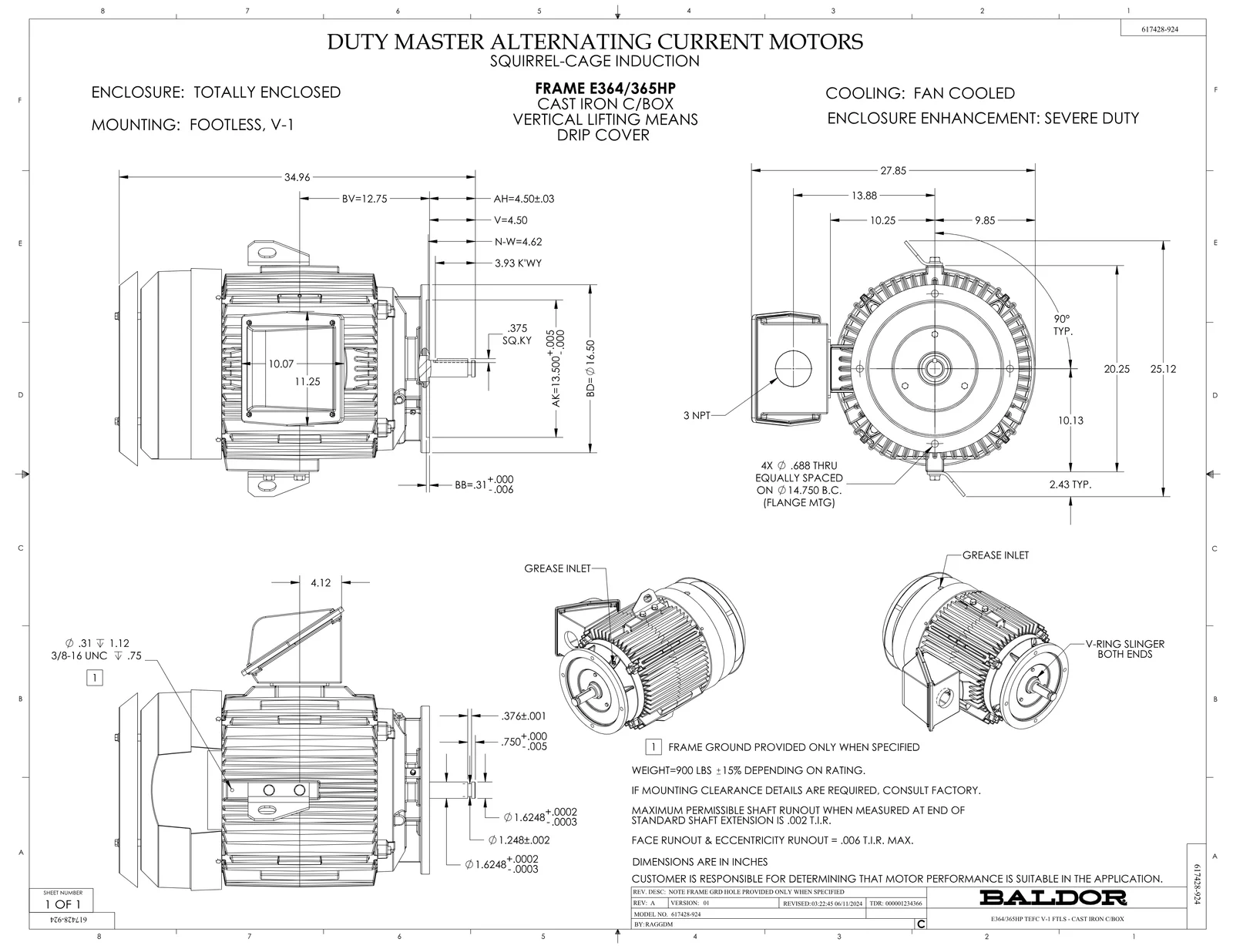

Dimension DrawingDimension SheetPDF·335 KB·English

DatasheetDatasheetPDF·800 KB·English

Series documents 4· shared by this product series

Wiring DiagramWiring DiagramPDF·28 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

Performance CurvePerformance CurvePDF·77 KB·English

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor VHECP4316T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
000692000VD	LABEL WARNING	1 pcs	544 motors
702676001C	FAN 360	1 pcs	102 motors
034017014AB	LCKW 3/8 STD. PLATED	4 pcs	376 motors
067053000B	GASK 320-400	1 pcs	179 motors
076709000A	C/B Cover - 360	1 pcs	179 motors
