How can I get a price quote for Baldor VFSWDM3559T-4E?

You can request a fast quote for Baldor VFSWDM3559T-4E from Yılsa Engineering. Reference part number YLSO8EOZL4P2XNH. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor VFSWDM3559T-4E in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor VFSWDM3559T-4E genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor VFSWDM3559T-4E?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor VFSWDM3559T-4E

VFSWDM3559T-4E

BaldorMFR # VFSWDM3559T-4ESKU # YLSO8EOZL4P2XNH

EnclosureTEFC

Frame143TC

Frame materialStainless Steel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency3.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor VFSWDM3559T-4E (VFSWDM3559T-4E) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor VFSWDM3559T-4E — price, stock availability and technical specifications.

Baldor VFSWDM3559T-4E

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame143TC

Frame materialStainless Steel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency3.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsNEMA_PREMIUM · WEEE · NEMA PREMIUM · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage3.700 A @ 460.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load86.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)3.7 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter codeInverter Duty

KVA codeP

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)5400 rpm

Motor finishUNPAINTED

Motor lead terminationFlying Leads

Motor lead quantity/wire size3 @ 18 AWG

Motor type3546M

Mounting arrangementF1

Number of poles2

Overall length16.28 IN

Power factor91

Product familyWD All SD Non-Encapsulated

Pulley end bearing typeSealed Bearing

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.875 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3470 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568594001

Product TypeWashdown Duty Motors

Nameplate

Catalog numberVFSWDM3559T-4E

Weight61

Specification number35E4709K985

EnclosureTEFC

CC number010A

Ingress protection (IP)69

Horsepower (HP)3

Magnetizing current (A)1.3

Voltage (V)460

NEMA nominal efficiency (%)86.5

Current (A)3.7

Power factor91

Rating40C AMB-CONT

Speed (rpm)3470

Maximum speed (rpm)5400

Frame size143TC

Frequency (Hz)60

Code letter (locked rotor kVA)P

Insulation classH

Service factor1.15

Phase3

NEMA design letterA

Drive end bearing6205

Opposite drive end bearing6205

LubricationPOLYREX EM

Constant horsepower60

TO90

Inertia (WK²)0.127

Constant torque15

TO60

SL HZ2.2

Variable torque3

TO60

Nameplate numberNP4427AAA02

Performance

General characteristics· 460 V, 60 Hz, 3 hp

Line-to-line resistance at 25 °C (ohms)3.47 Ω

Temperature rise at rated load (°C)63° C

Temperature rise at service factor load (°C)74° C

Start configurationDOL

Breakdown torque17.2 lb-ft

Pull-up torque10.5 lb-ft

Locked-rotor torque17 lb-ft

Starting current (A)48.3 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	13	59	79	87	90	91	90	91
Efficiency %	0	80.1	86.4	87.3	86.9	85.7	83.9	86.2
Speed rpm	3599	3567	3541	3510	3479	3443	3403	3457
Line amps A	1.25	1.53	2.07	2.78	3.55	4.42	5.4	4.07
Power W	129	715	1311	1930	2559	3214	3889	2952
Torque lb-ft	0	1.13	2.25	3.38	4.5	5.63	6.75	5.18

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·38 KB·English

DatasheetDatasheetPDF·586 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

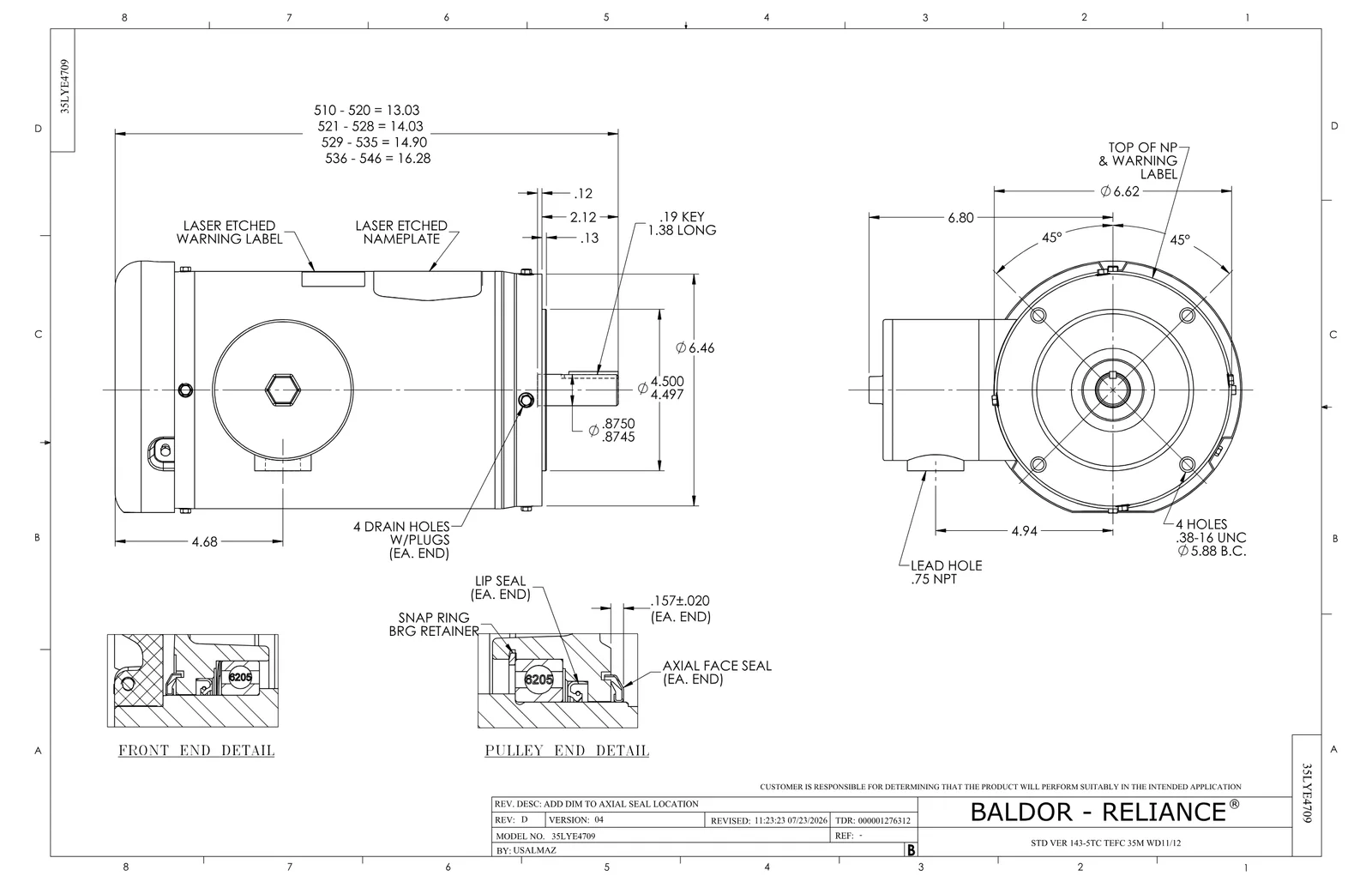

Dimension DrawingDimension SheetPDF·102 KB·English

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor VFSWDM3559T-4E motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
