Baldor VFSSP5M3611T-E-G

VFSSP5M3611T-E-G

BaldorMFR # VFSSP5M3611T-E-GSKU # YLSRLXON9Y7I9ZP

EnclosureTENV

Frame184TC

Frame materialStainless Steel

Frequency (Hz)60.00 Hz

Motor letter typeBrushless Wound Field PM Rotor

Output at frequency3.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor VFSSP5M3611T-E-G (VFSSP5M3611T-E-G) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor VFSSP5M3611T-E-G — price, stock availability and technical specifications.

Baldor VFSSP5M3611T-E-G

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTENV

Frame184TC

Frame materialStainless Steel

Frequency (Hz)60.00 Hz

Motor letter typeBrushless Wound Field PM Rotor

Output at frequency3.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US · WEEE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage3.700 A @ 460.0 V · 7.400 A @ 230.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load90.2 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)3.7 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter code03

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)4000 rpm

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 12 AWG

Motor type3624B

Mounting arrangementF1

Number of poles4

Overall length15.54 IN

Power factor81

Product familyWD All SS Encapsulated

Pulley end bearing typeSealed Bearing

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter1.125 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1800 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568598627

Product TypeWashdown Duty Motors

Documents & CAD

For this product 3

Dimension DrawingDimension SheetPDF·97 KB·English

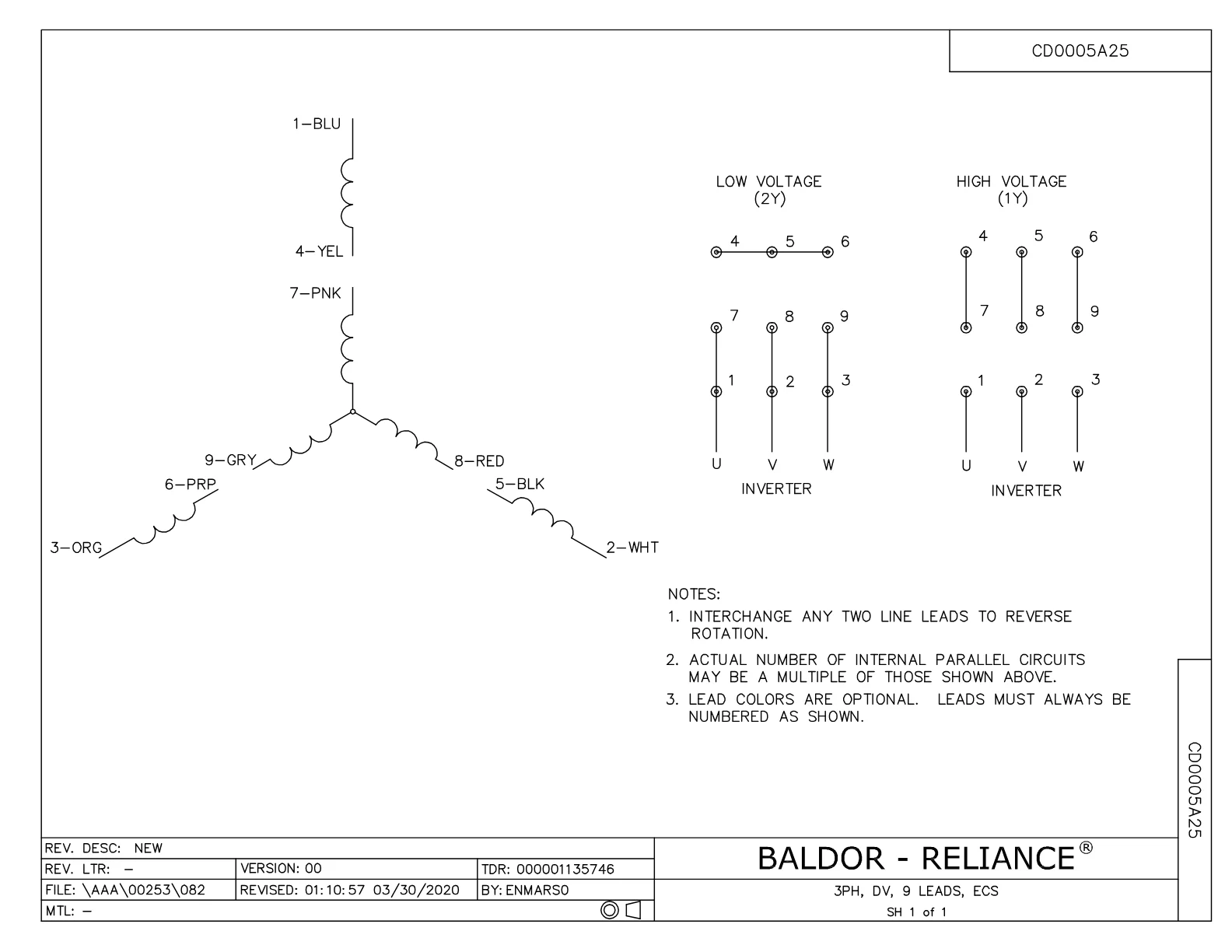

Wiring DiagramWiring DiagramPDF·32 KB·English

DatasheetDatasheetPDF·494 KB·English

Spare Parts 1

The genuine spare parts used for servicing and repairing the Baldor VFSSP5M3611T-E-G motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
