Baldor VFSSP5M3564T-E-G

VFSSP5M3564T-E-G

BaldorMFR # VFSSP5M3564T-E-GSKU # YLSS5V1F3CZZC9S

EnclosureTEFC

Frame145TC

Frame materialStainless Steel

Frequency (Hz)60.00 Hz

Motor letter typeBrushless Wound Field PM Rotor

Output at frequency5.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor VFSSP5M3564T-E-G (VFSSP5M3564T-E-G) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor VFSSP5M3564T-E-G — price, stock availability and technical specifications.

Baldor VFSSP5M3564T-E-G

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame145TC

Frame materialStainless Steel

Frequency (Hz)60.00 Hz

Motor letter typeBrushless Wound Field PM Rotor

Output at frequency5.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US · WEEE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage10.400 A @ 230.0 V · 5.200 A @ 460.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load93.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)5.2 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter code03

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)4000 rpm

Motor finishUNPAINTED

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 14 AWG

Motor type3548B

Mounting arrangementF1

Number of poles4

Overall length16.28 IN

Power factor97

Product familyWD All SS Encapsulated

Pulley end bearing typeSealed Bearing

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter0.875 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1800 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568598610

Product TypeWashdown Duty Motors

Documents & CAD

For this product 3

Dimension DrawingDimension SheetPDF·90 KB·English

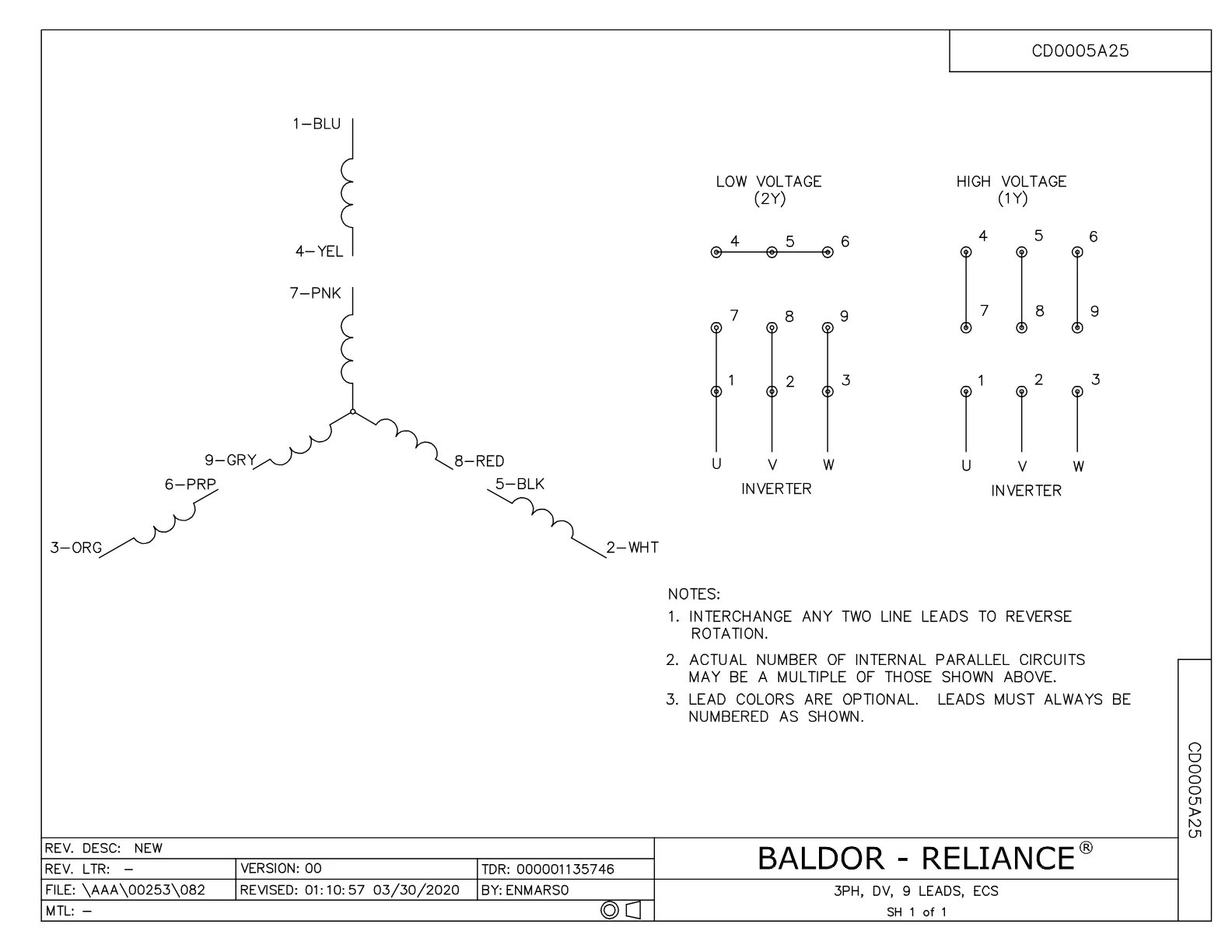

Wiring DiagramWiring DiagramPDF·32 KB·English

DatasheetDatasheetPDF·486 KB·English

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor VFSSP5M3564T-E-G motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
