Baldor VFDL3612TM

Farm Duty - General Purpose Motor - 5 hp, 1800 rpm, 1 ph, 230 V, 184TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, C-Face / Footless Mount, Continuous Duty

BaldorMFR # VFDL3612TMSKU # YLSMXD4WZEQNNW6

EnclosureTEFC

Frame184TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency5.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Farm Duty - General Purpose Motor - 5 hp, 1800 rpm, 1 ph, 230 V, 184TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, C-Face / Footless Mount, Continuous Duty

Baldor VFDL3612TM

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame184TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency5.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage23.000 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load80.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)23.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeJ

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 10 AWG, A PH

Motor type3646LC

Mounting arrangementF1

Number of poles4

Overall length18.04 IN

Power factor88

Product familyGeneral Purpose

Product typeFARM DUTY

Pulley end bearing typeSealed Bearing

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.00

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Manual Thermal Overload

Winding thermal 1 locationKO

Winding thermal 2None

UPC781568154281

Motor CategoryGeneral Purpose Motor

Motor Supply Voltage230 V

Base RPM1725 rpm

Warranty2 Year Warranty

Type Of BearingBall

Harmonization Code8501.40.6040

Weight102 lbs

ApplicationsWide variety of agri-duty and industrial applications.

Additional DetailsSealed ball bearings, lubricated with high temperature moistureresistant grease. Drive end seal and v-ring slinger to prevent moisture and contaminant ingress. Condensation drains, gasketed cast conduit boxes. Epoxy paint protects motor from harsh environments.

Mounting TypeC-Face / Footless

Nameplate

Catalog numberVFDL3612TM

Specification number36Q158W279G1

Horsepower (HP)5

Voltage (V)230

Current (A)23

Speed (rpm)1725

Frame size184TC

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)J

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)80

Power factor88

Rating40C AMB-CONT

Drive end bearing6206

Opposite drive end bearing6205

EnclosureTEFC

Nameplate numberNP1280L

Performance

General characteristics· 230 V, 60 Hz, 5 hp

Line-to-line resistance at 25 °C (ohms)0.353 Ω / 2.23 Ohms B Ph

Temperature rise at rated load (°C)97° C

Start configurationDOL

Breakdown torque43 lb-ft

Pull-up torque36 lb-ft

Locked-rotor torque46 lb-ft

Starting current (A)163 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	21	54	71	85	89	89	91
Efficiency %	0	65	76.1	81.5	80.8	79.3	75.5
Speed rpm	1798	1786	1769	1750	1732	1713	1687
Line amps A	10	12.7	14	18.5	22.6	27.3	33.5
Power W	483	1464	2476	3431	4567	5753	7141
Torque lb-ft	0	3.75	7.5	11.25	15	18.75	22.5

Documents & CAD

For this product 4

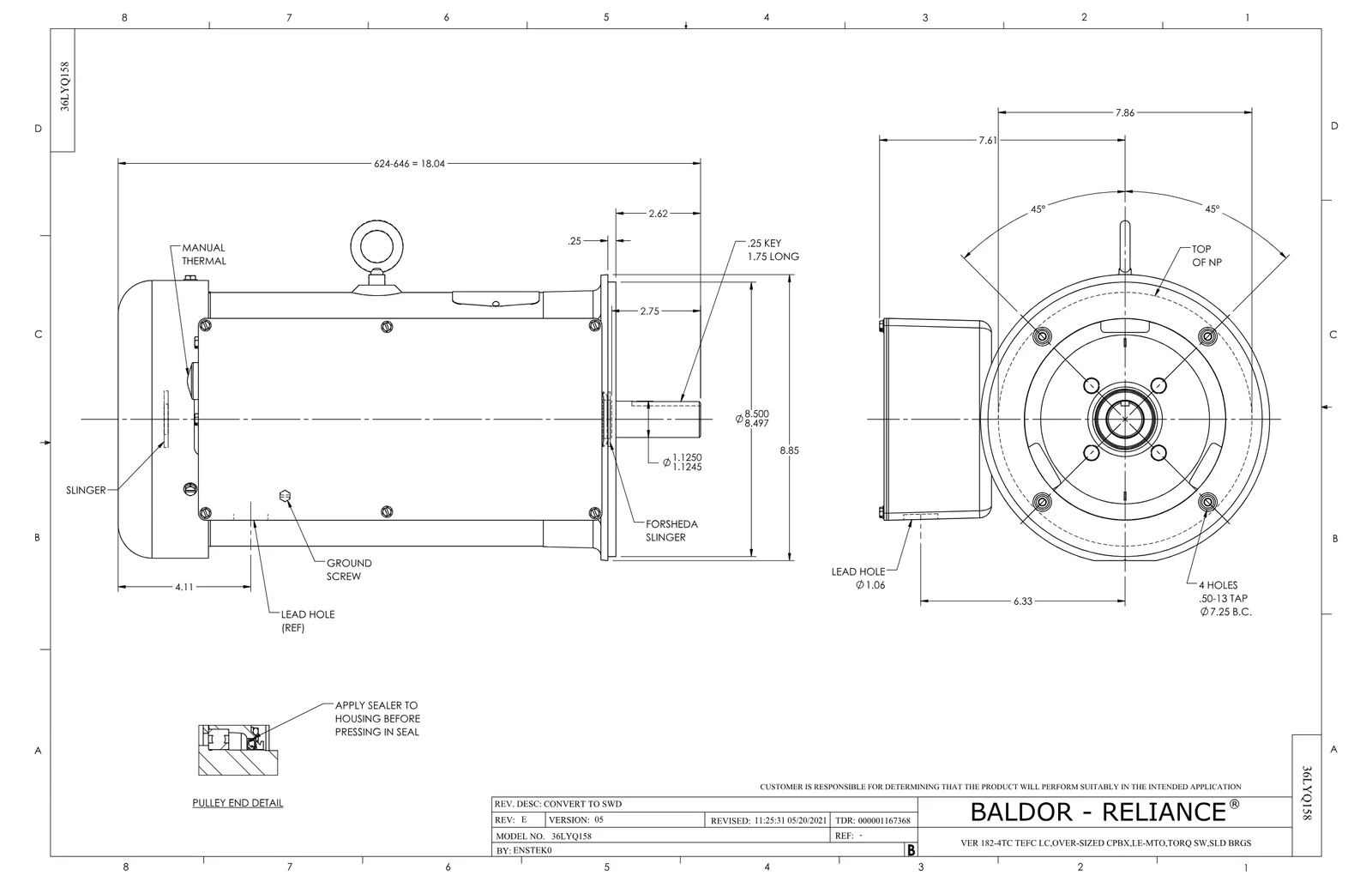

Dimension DrawingDimension SheetPDF·100 KB·English

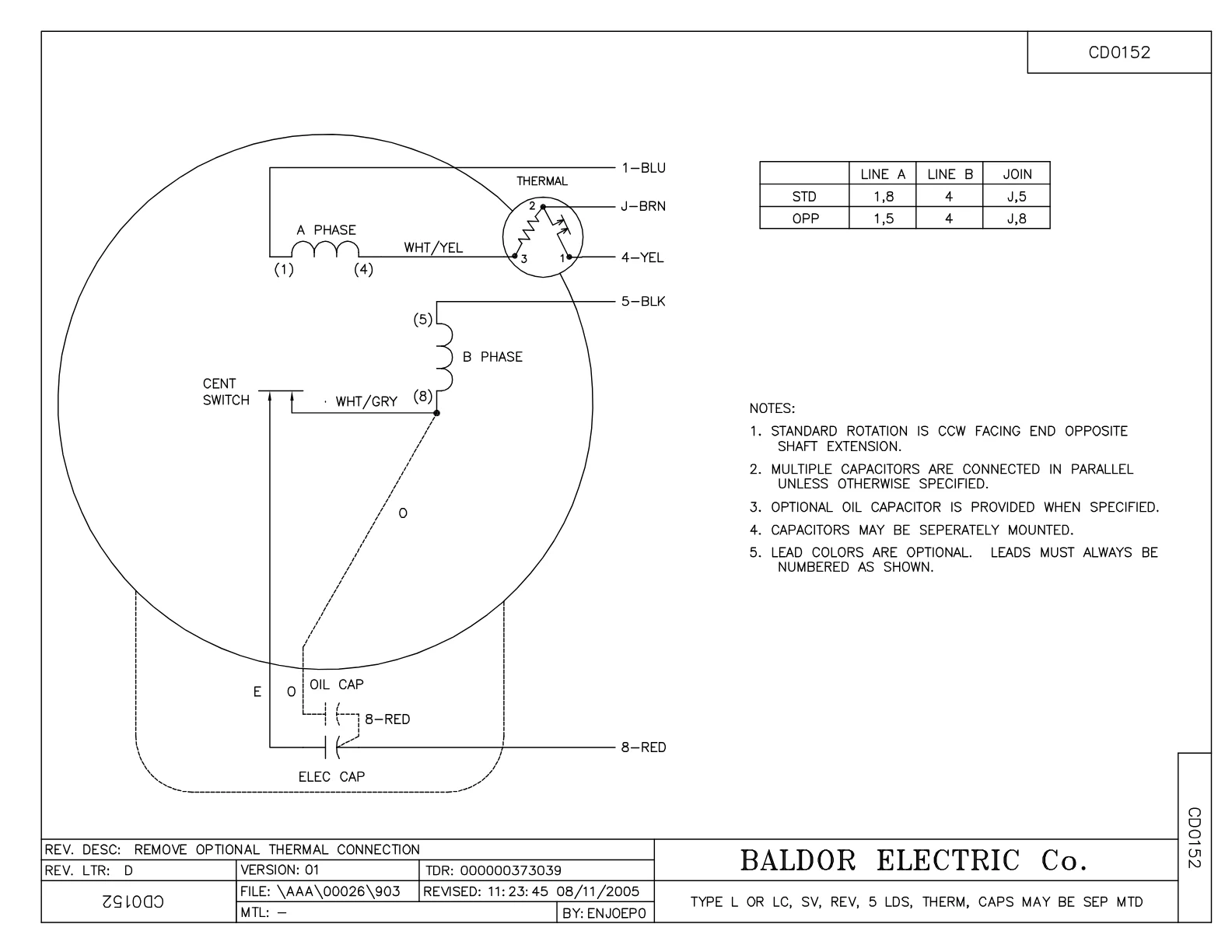

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·582 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Spare Parts 9

The genuine spare parts used for servicing and repairing the Baldor VFDL3612TM motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3030F11SP	CAPACITOR 30 MFD 370 VAC	1 pcs	33 motors
TPLED1027SP	THERMAL 1PH 1.5 MAN REF LED989 TDR #5817	1 pcs	6 motors
EC1216C06SP	ELEC CAP, 216-259 MFD, 250V, 2.06D X 4.	2 pcs	45 motors
HA1005A03SP	SLINGER, OD 1.750, ID .938, 205 BRG	1 pcs	117 motors
HW4600B36SP	V-RING SLINGER 1.188 X 1.380 X .24 VITON	1 pcs	252 motors
36FN3000A01SP	EXFN, PLASTIC, 7.00 OD, .912 ID	1 pcs	167 motors
37GS3003SP	GASKET, CAPAC BOX LID X	1 pcs	5 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
