Baldor VEWDM3714T

General Purpose Washdown Duty Motor (Painted) - 10 hp, 1800 rpm, 3 ph, 230/460 V, 215TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1770 rpm Base, C-Face / Footless Mount

BaldorMFR # VEWDM3714TSKU # YLSZ9WGYUMROJKO

EnclosureTEFC

Frame215TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency10.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Washdown Duty Motor (Painted) - 10 hp, 1800 rpm, 3 ph, 230/460 V, 215TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1770 rpm Base, C-Face / Footless Mount

Features and Benefits

Standard NEMA BA Dimension 300 Series stainless steel hardware
Moisture sealant on bolt heads, between frame and endplates
Neoprene gaskets
Power Off/Manual Release
Resets automatically
NEMA Premium® Efficiency and inverter-ready
230/460V brakes are connected in conduit box
Applications: Food processing and other applications that regularly expose the motor to high-pressure washdown

Baldor VEWDM3714T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame215TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency10.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · NEMA PREMIUM

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage24.800 A @ 230.0 V · 27.000 A @ 208.0 V · 12.400 A @ 460.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load91.7 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)12.4 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeK

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 14 AWG

Motor type3750M

Mounting arrangementF1

Number of poles4

Overall length20.51 IN

Power factor85

Product familyGeneral Purpose

Pulley end bearing typeSealed Bearing

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.375 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1768 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568478394

Motor CategoryGeneral Purpose Motor (Painted)

Motor Supply Voltage230/460 V

Base RPM1770 rpm

IP Rating55

Harmonization Code8501.52.4000

Weight155 lbs

ApplicationsFood processing and other applications where motors receive washdown on a regular basis.

Additional Details300 series stainless steel hardware, moisture sealant on bolt heads, between frame and endplates. Neoprene gaskets. Double sealed ball bearings. Lip and V-Ring seal on drive end. Stainless steel shaft extension. Electrostatically applied epoxy finish over autophoretic primer. Class F insulation. Super-E® motors have NEMA Premium® efficiency and 3 year warranty.

Mounting TypeC-Face / Footless

Product TypeWashdown Duty Motors

Nameplate

Catalog numberVEWDM3714T

Specification number37H875Z711

Horsepower (HP)10

Voltage (V)230/460

Current (A)24.8/12.4

Speed (rpm)1768

Frame size215TC

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)K

NEMA design letterA

Insulation classF

NEMA nominal efficiency (%)91.7

Power factor85

Rating40C AMB-CONT

CC number010A

Drive end bearing6307

Opposite drive end bearing6206

EnclosureTEFC

Nameplate numberNP1669L

Performance

General characteristics· 460 V, 60 Hz, 10 hp

Line-to-line resistance at 25 °C (ohms)1.1801 Ω

Temperature rise at rated load (°C)77° C

Temperature rise at service factor load (°C)108° C

Start configurationDOL

Breakdown torque93.4 lb-ft

Pull-up torque44.7 lb-ft

Locked-rotor torque55.5 lb-ft

Starting current (A)90.5 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	4	45	68	78	82	85	85	84
Efficiency %	0	89.9	92.6	92.6	91.8	90.5	88.9	91
Speed rpm	1799.9	1792.4	1785	1776.3	1767.2	1756.7	1745.2	1756
Line amps A	5.11	5.83	7.54	9.79	12.4	15.3	18.6	14.2
Power W	181	2091	4051	6058	8143	10326	12616	9453
Torque lb-ft	0	7.385	14.81	22.25	29.79	37.48	45.28	34.4

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·612 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

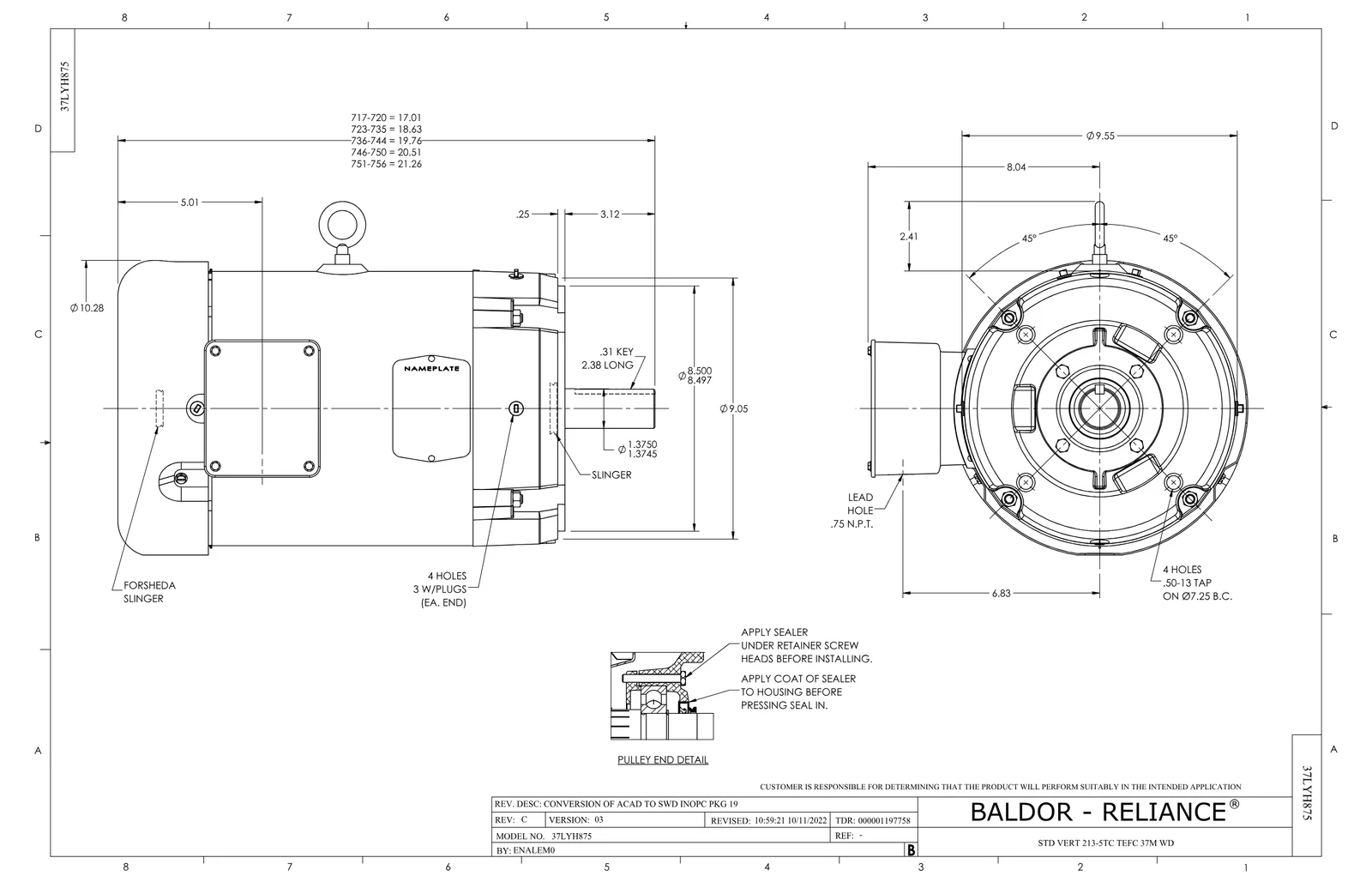

Dimension DrawingDimension SheetPDF·127 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor VEWDM3714T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	2 pcs	1,543 motors
HW4600B31SP	V-RING SLINGER 1.438 X 1.758 X .24 VITON	1 pcs	32 motors
37FN3002C01	EXFN, PLASTIC, 6.00 OD, 1.155 ID	1 pcs	245 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
