Baldor VEUHM3546T

Baldor-Reliance VEUHM3546T is a 1 HP (0.75 kW), 1770 rpm, 3-phase 460/230 V, 60 Hz, 143TC frame, TEFC general purpose three-phase induction electric motor.

BaldorMFR # VEUHM3546TSKU # YLSTO6J9F5GRZS7

EnclosureTEFC

Frame143TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance VEUHM3546T is a 1 HP (0.75 kW), 1770 rpm, 3-phase 460/230 V, 60 Hz, 143TC frame, TEFC general purpose three-phase induction electric motor.

Baldor VEUHM3546T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame143TC

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCE · CURUSEEV · NEMA_PREMIUM · UKCA · WEEE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage3.200 A @ 230.0 V · 3.200 A @ 208.0 V · 1.600 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load85.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)1.6 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Duty

KVA codeN

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 18 AWG

Motor type3520M

Mounting arrangementF3

Number of poles4

Overall length13.29 IN

Power factor69

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1770 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568503713

Nameplate

Catalog numberVEUHM3546T

Specification number35W819G004G1

Horsepower (HP)1/.75KW

Voltage (V)230/460

Current (A)3.2/1.6 IP44 IC411 17KG

Speed (1/min)1770

Frame size143TC

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)N

NEMA design letterB

Insulation classF

NEMA nominal efficiency (%)85.5

Power factor69

Rating40C AMB-CONT

CC number010A

Drive end bearing6205

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP2934L

Performance

General characteristics· 460 V, 60 Hz, 1 hp

Line-to-line resistance at 25 °C (ohms)16.049 Ω

Temperature rise at rated load (°C)36° C

Temperature rise at service factor load (°C)41° C

Start configurationDOL

Breakdown torque14.6 lb-ft

Pull-up torque7.57 lb-ft

Locked-rotor torque9.17 lb-ft

Starting current (A)14.6 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	8	29	45	58	67	73	78	71
Efficiency %	0	71.1	81.2	84.7	85.8	86	85.6	85.9
Speed rpm	1799.8	1794	1787.3	1781.1	1774.3	1767.4	1759.4	1770
Line amps A	1.2	1.22	1.31	1.46	1.64	1.86	2.11	1.77
Power W	76.7	277	469	668	875	1092	1311	1005
Torque lb-ft	0	0.7733	1.501	2.238	2.982	3.741	4.49	3.44

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·591 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

Series documents 1· shared by this product series

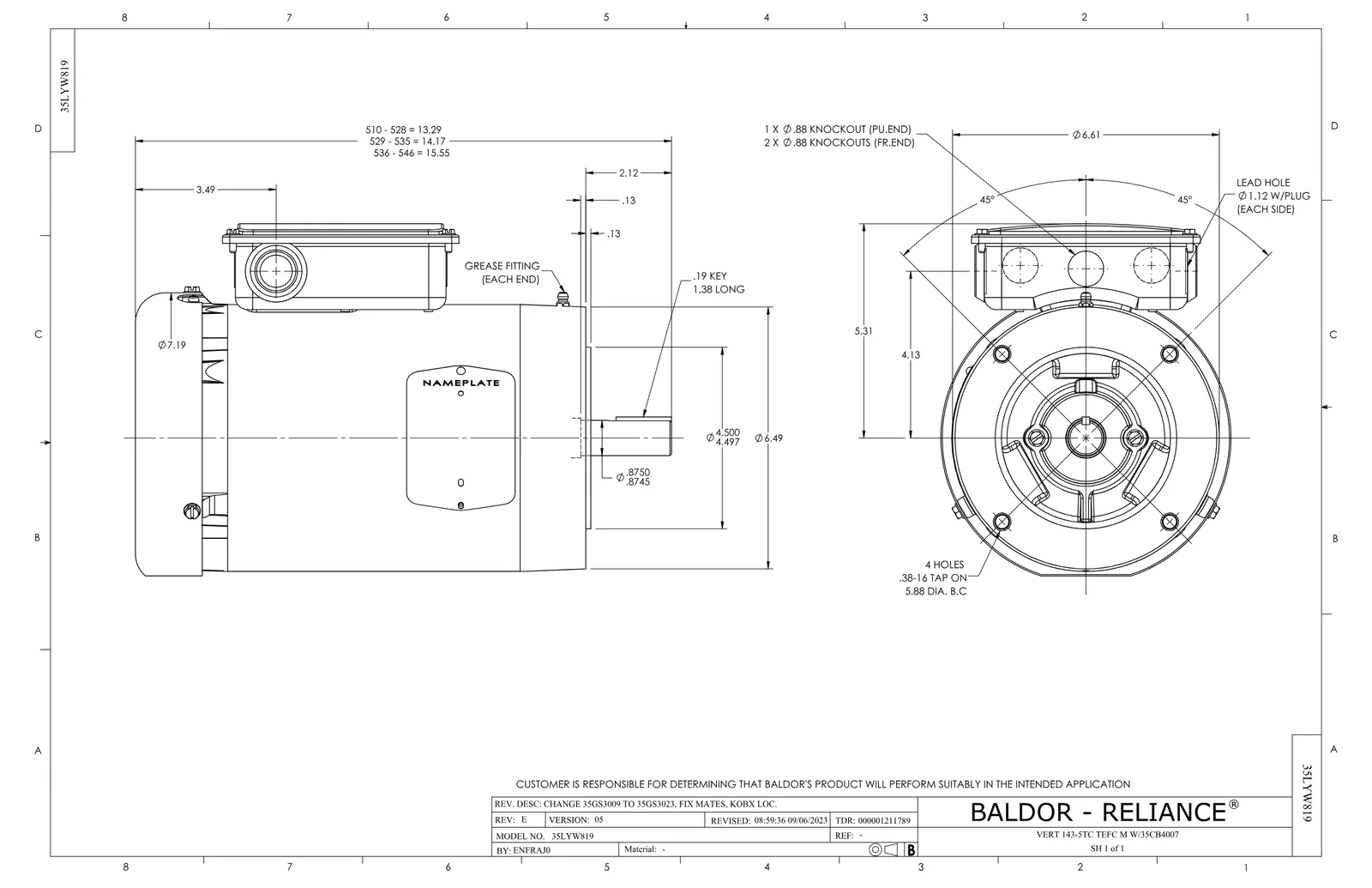

Dimension DrawingDimension SheetPDF·105 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor VEUHM3546T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
34FN3002B01	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	623 motors
35FH4005A84SP	IEC FH W/GRSR, NO DIMPLES PRIMED	1 pcs	167 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
